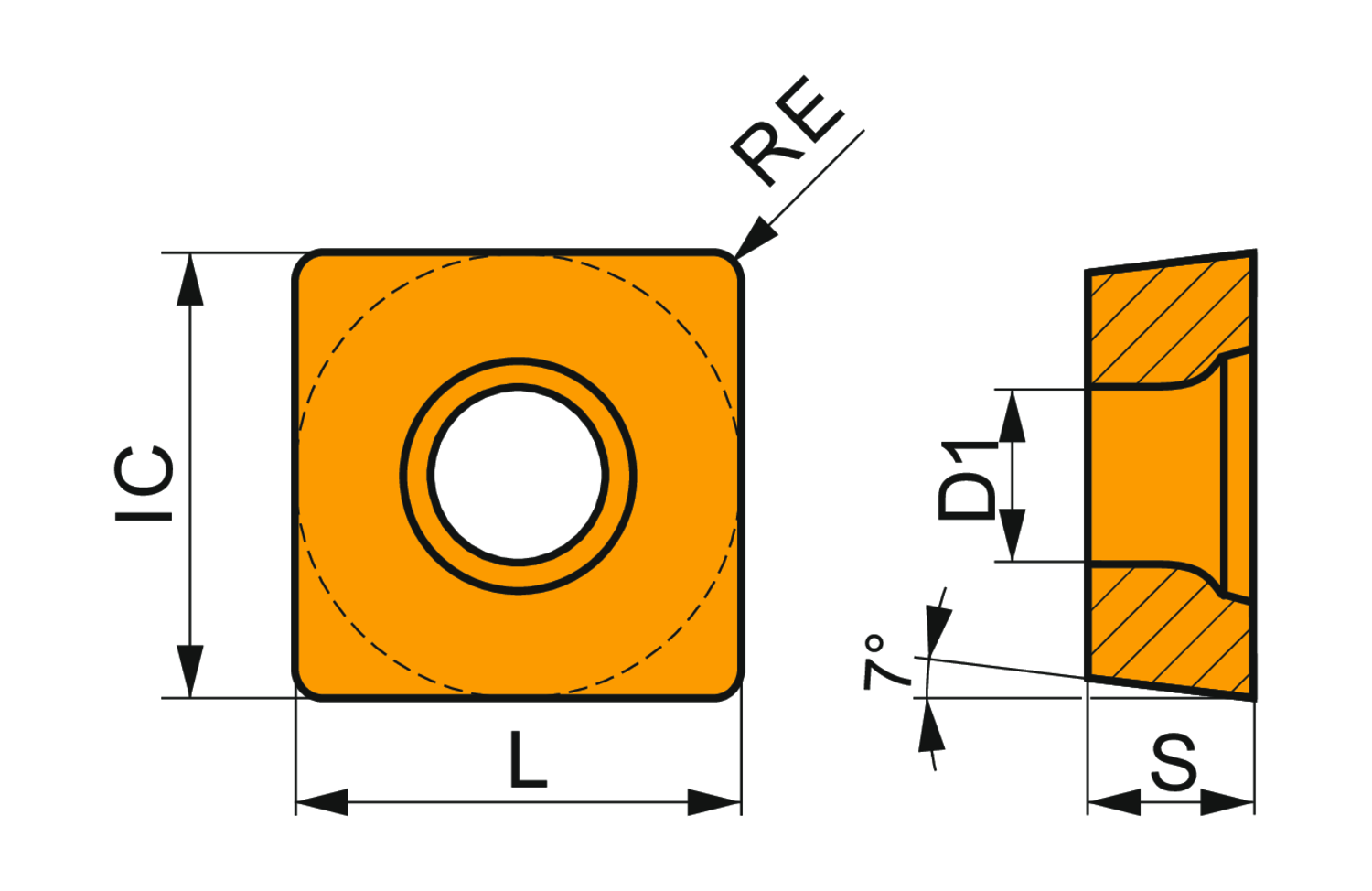

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05 - N20, for fine to heavy machining of non-ferrous metals
- Product Name ISO: SCGT 120408F-AL:T0315
- Ordering Code ANSI: SCGT 432F-AL:T0315
- EDP Number: 6756152
- Coating: T0315
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.276 |
| Insert Geometry | Positive |
| Coating | T0315 |
