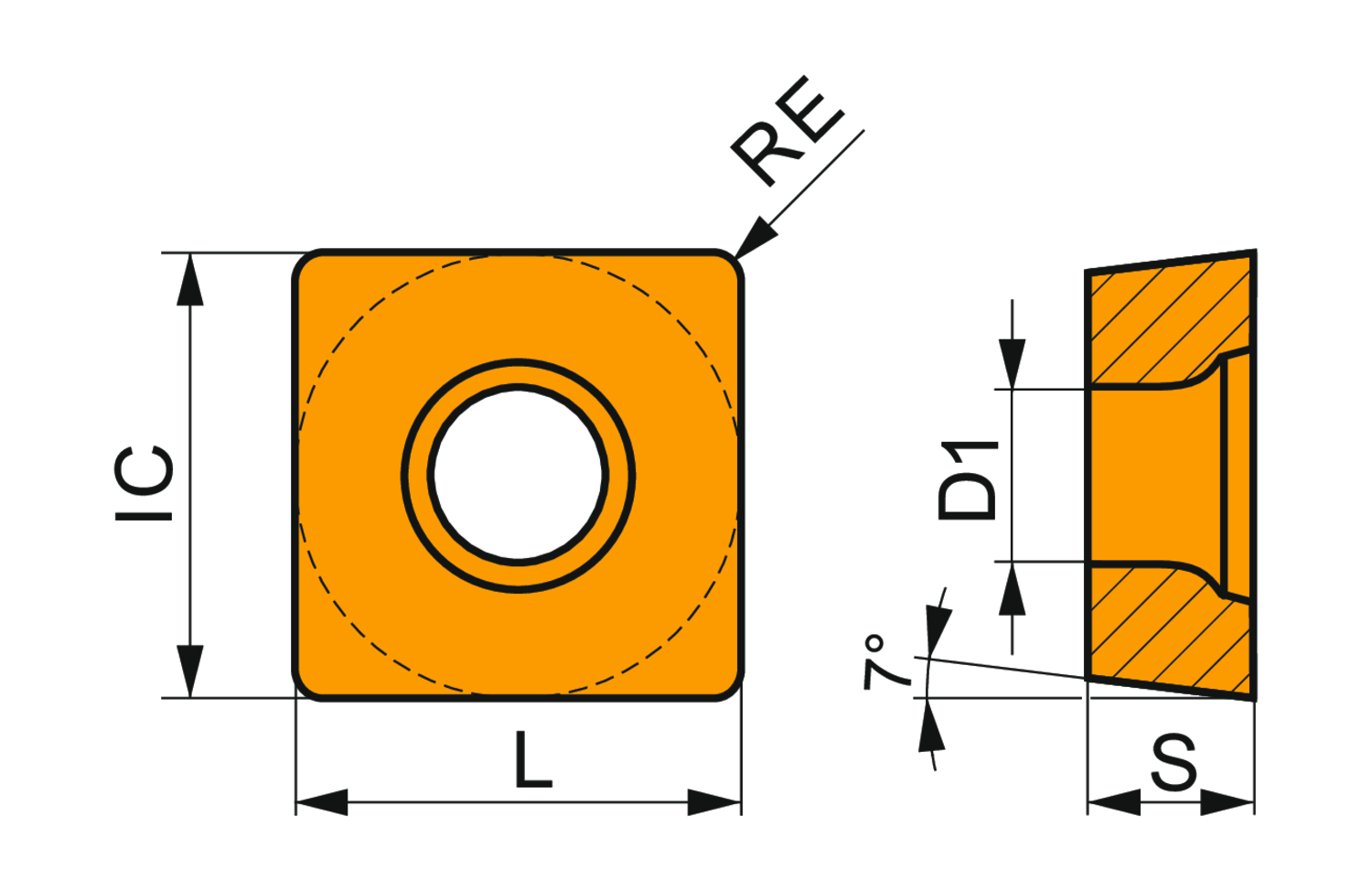

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade TT310, a PVD coated cermet within ISO range P10-P25, for fine to heavy machining of steels
- Product Name ISO: SCMT 09T308E-UR:TT310
- Ordering Code ANSI: SCMT 32.52-UR:TT310
- EDP Number: 6756262
- Coating: TT310
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Positive |
| Coating | TT310 |
