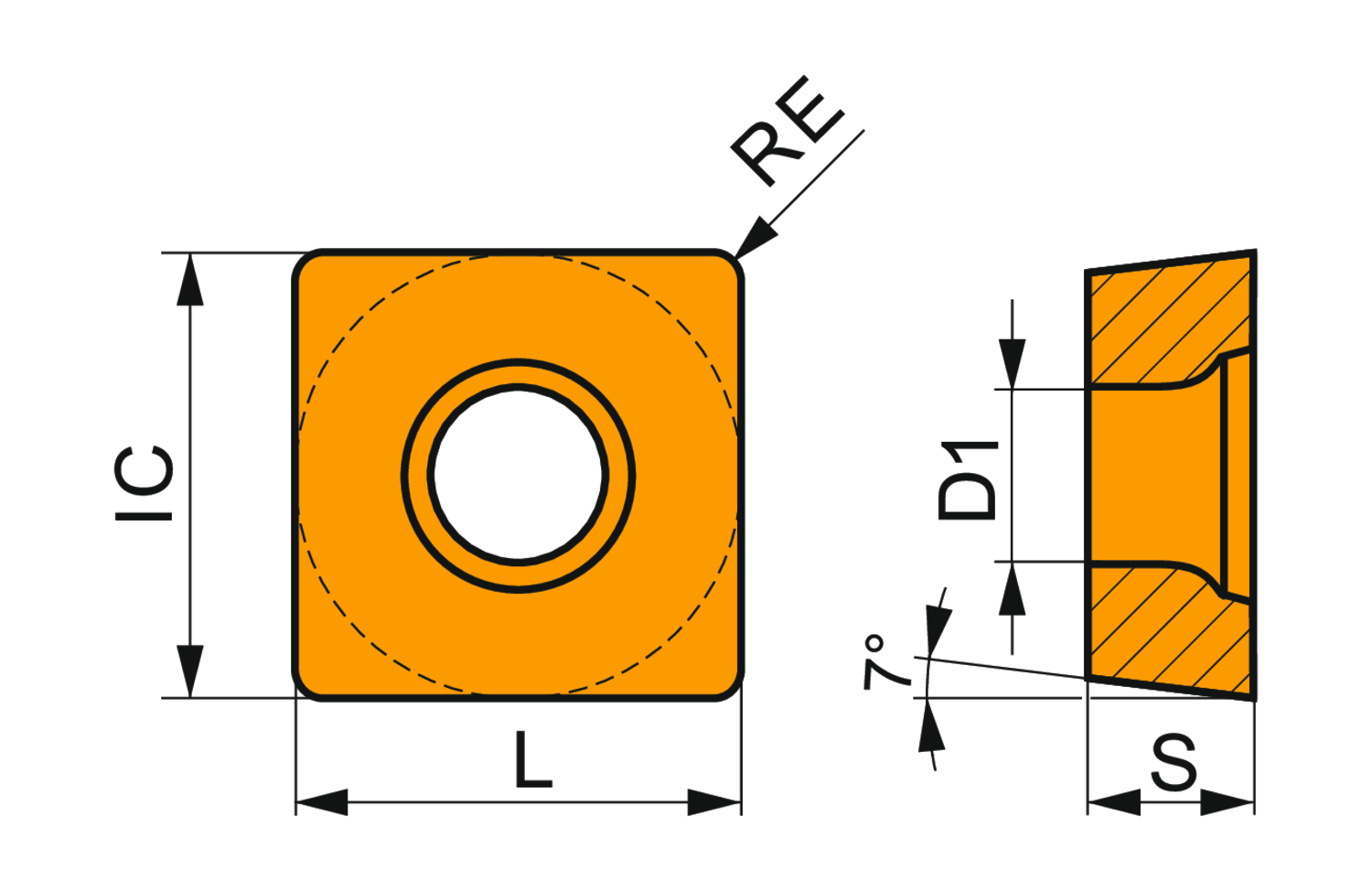

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to heavy machining of cast-irons
- Product Name ISO: SCMT 09T308E-RM:T5315
- Ordering Code ANSI: SCMT 32.52-RM:T5315
- EDP Number: 6755762
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.157 |
| Insert Geometry | Positive |
| Coating | T5315 |
