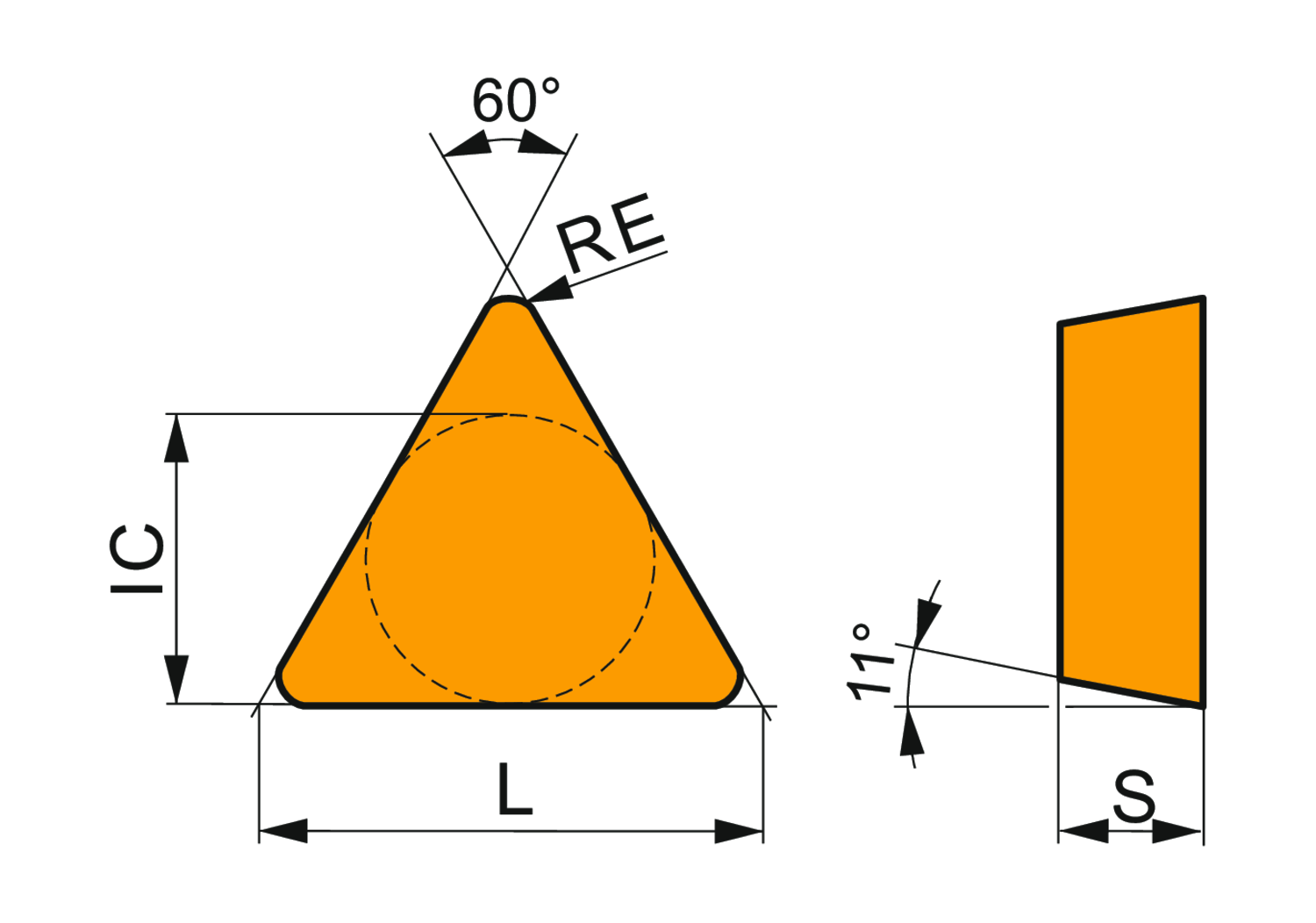

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker PF2, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels
- Product Name ISO: TPMR 110304-PF2:TT010
- Ordering Code ANSI: TPMR 221-PF2:TT010
- EDP Number: 7168745
- Coating: TT010
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Positive |
| Coating | TT010 |
