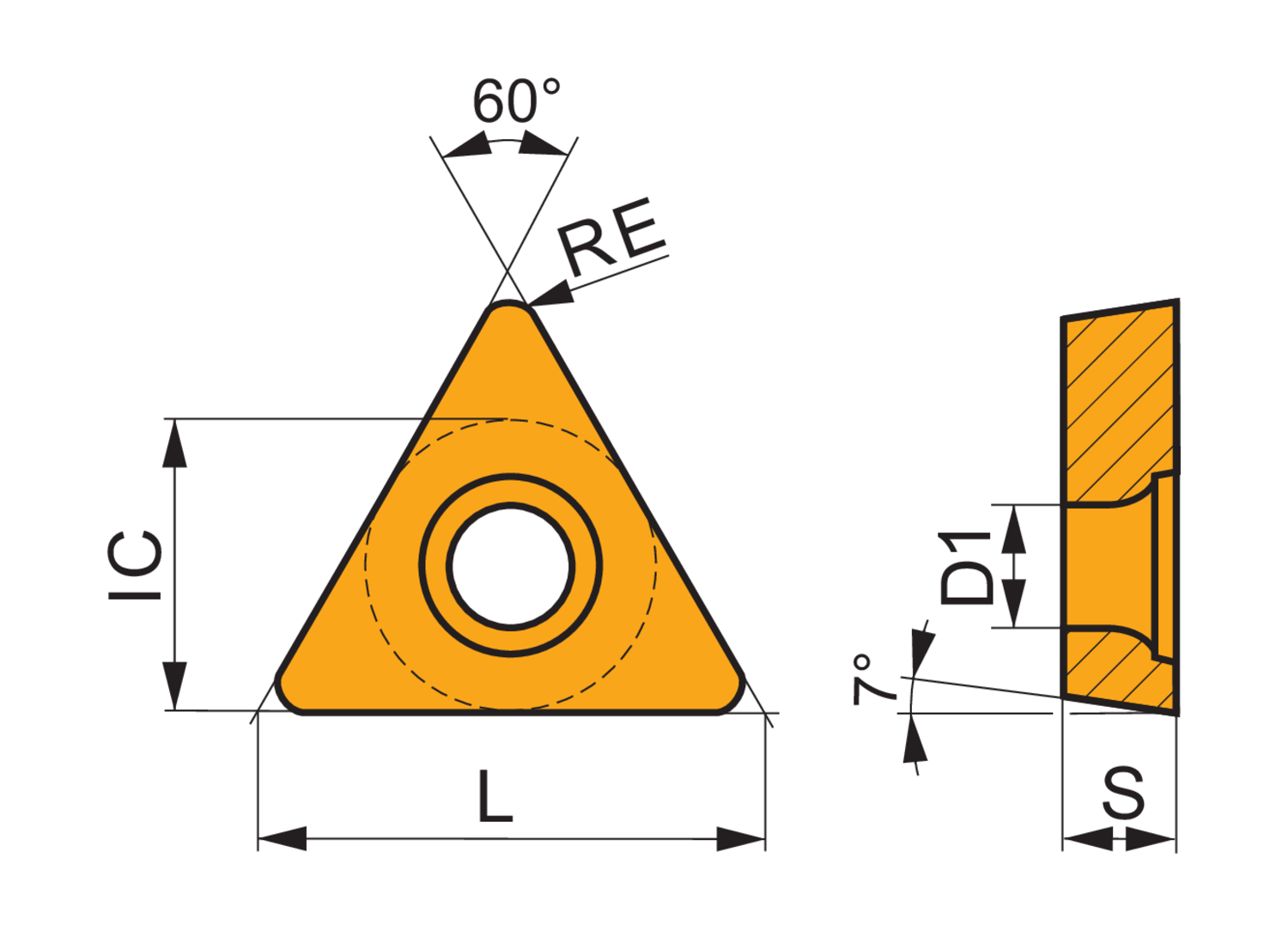

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FF2, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels
- Product Name ISO: TCMT 110208E-FF2:T9415
- Ordering Code ANSI: TCMT 21.52-FF2:T9415
- EDP Number: 8244381
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Insert Geometry | Positive |
| Coating | T9415 |
