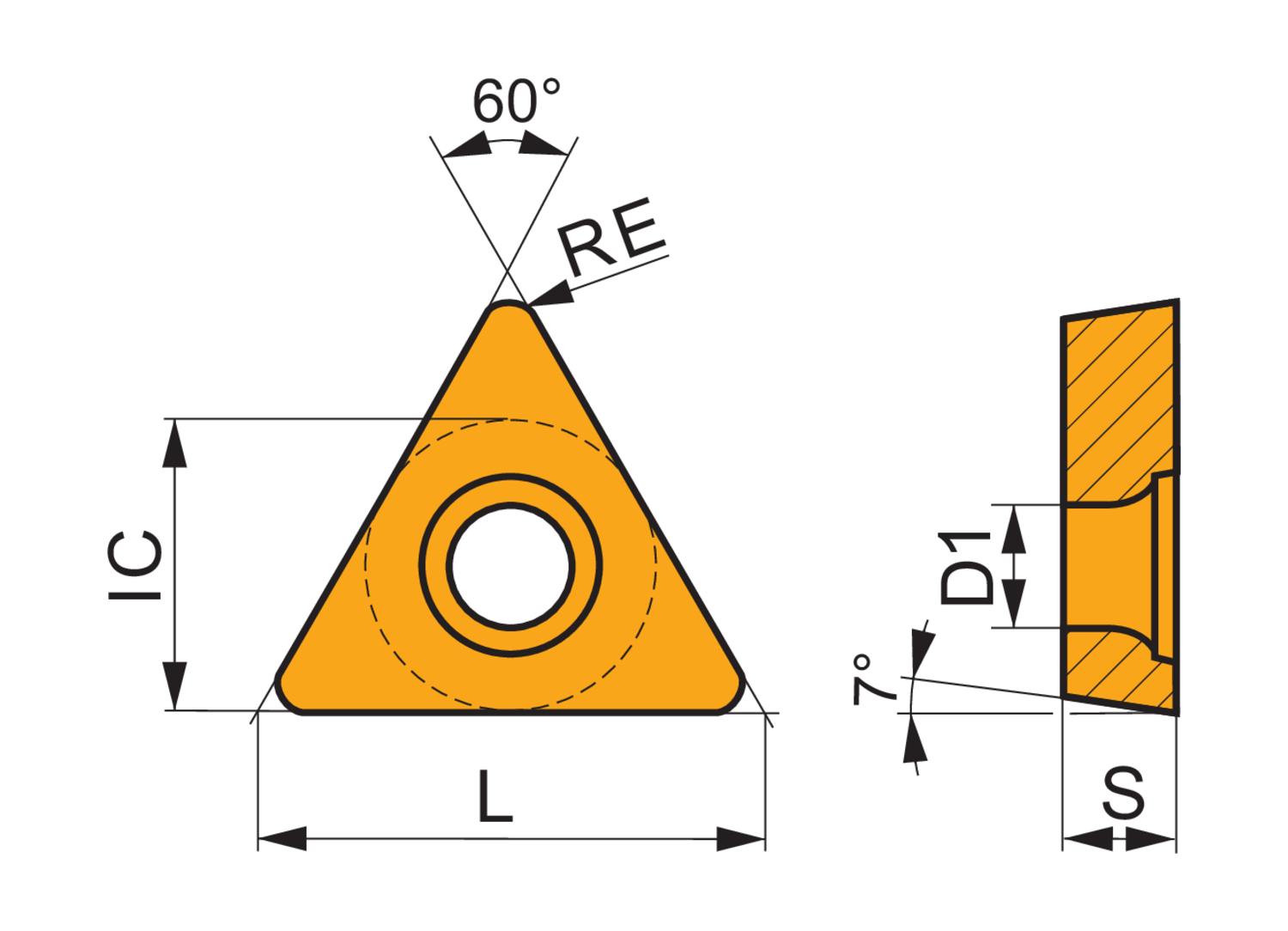

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for fine to medium machining of stainless-steels
- Product Name ISO: TCMT 110204E-FM:T7335
- Ordering Code ANSI: TCMT 21.51-FM:T7335
- EDP Number: 6754816
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T7335 |
