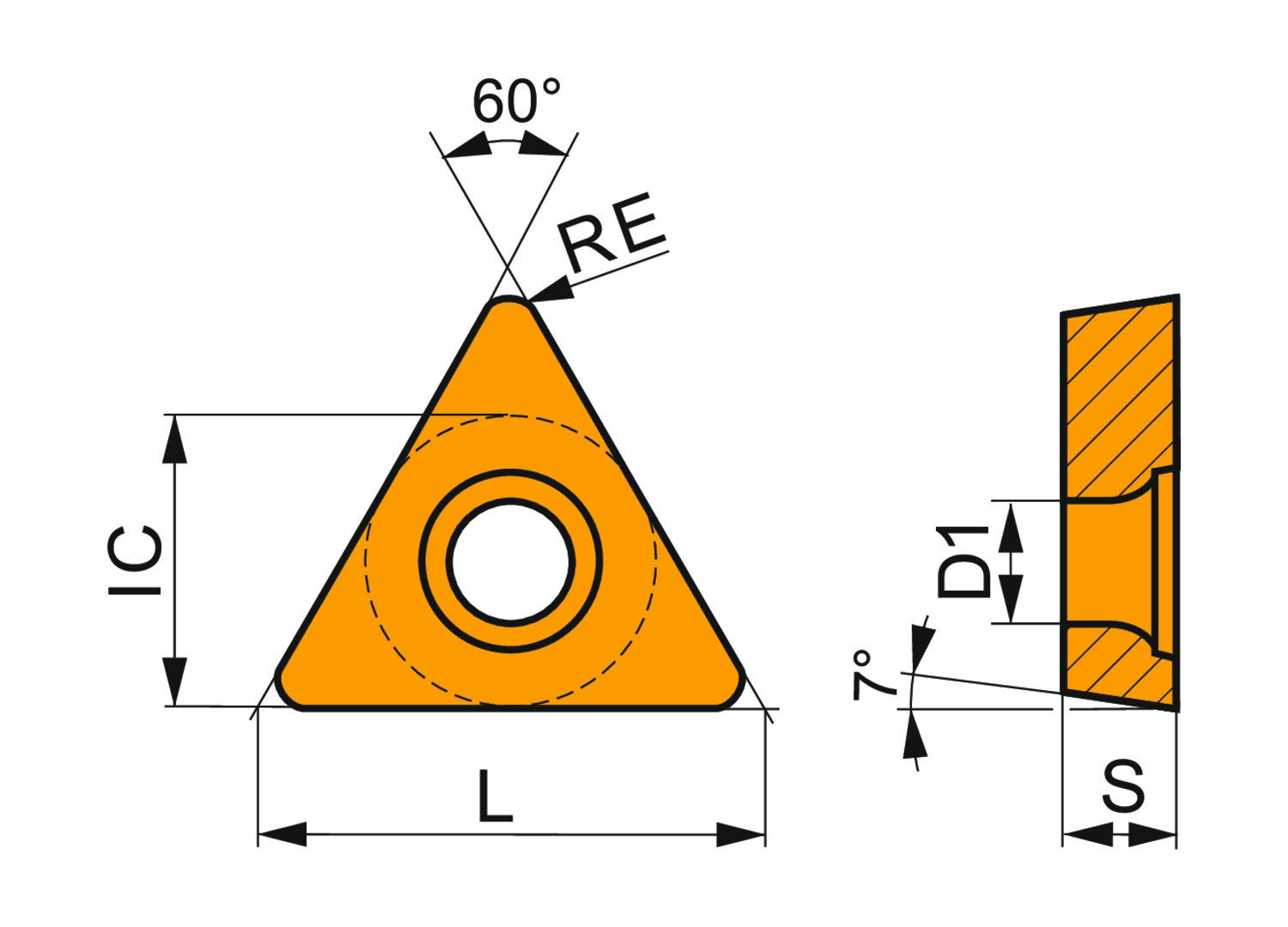

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons
- Product Name ISO: TCMW 16T308:T5315
- Ordering Code ANSI: TCMW 32.52:T5315
- EDP Number: 6922824
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.8 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.189 |
| Insert Geometry | Positive |
| Coating | T5315 |
