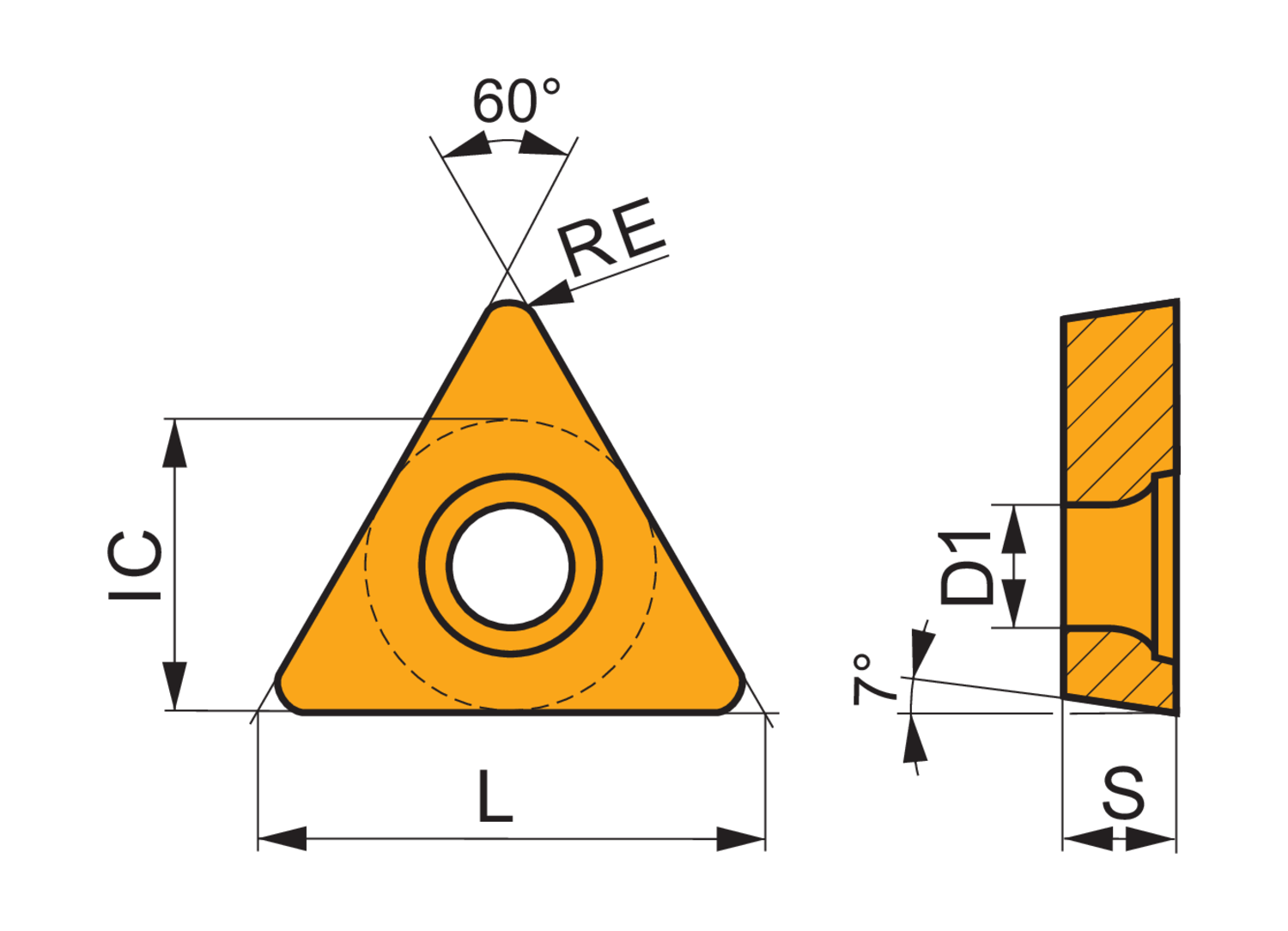

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM3, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15 and K05 - K20, for fine to heavy machining of steels and cast-irons
- Product Name ISO: TCMT 16T304E-RM3:T6310
- Ordering Code ANSI: TCMT 32.51-RM3:T6310
- EDP Number: 7248729
- Coating: T6310
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Positive |
| Coating | T6310 |
