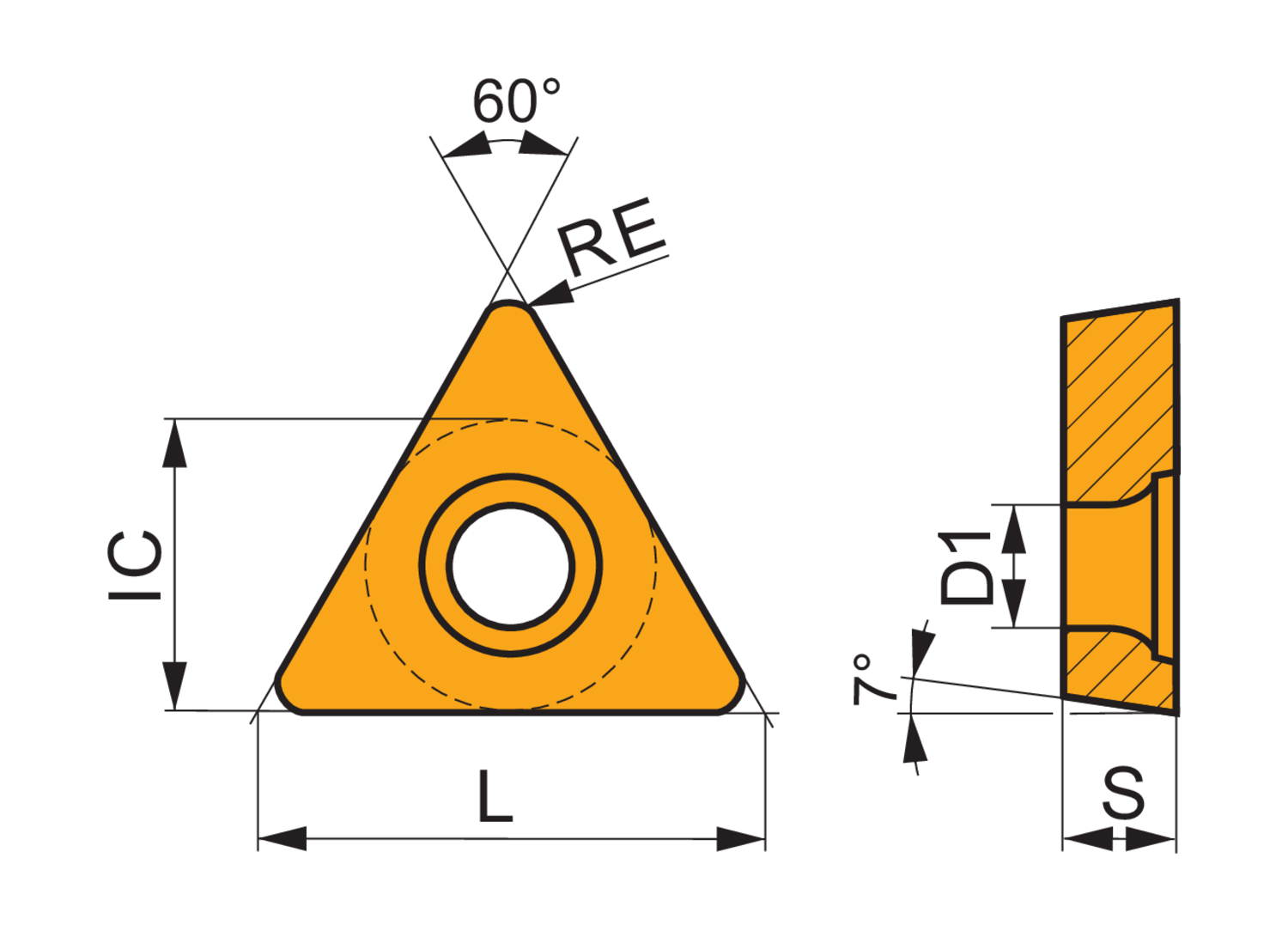

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 5.56mm, 2.38mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels
- Product Name ISO: TCMT 090204E-FF2:T8430
- Ordering Code ANSI: TCMT 1.81.51-FF2:T8430
- EDP Number: 7973852
- Coating: T8430
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.5 |
| Inscribing Circle Dia. (Mm.) | 5.56 |
| Insert Thickness (Mm.) | 2.38 |
| Insert Geometry | Positive |
| Coating | T8430 |
