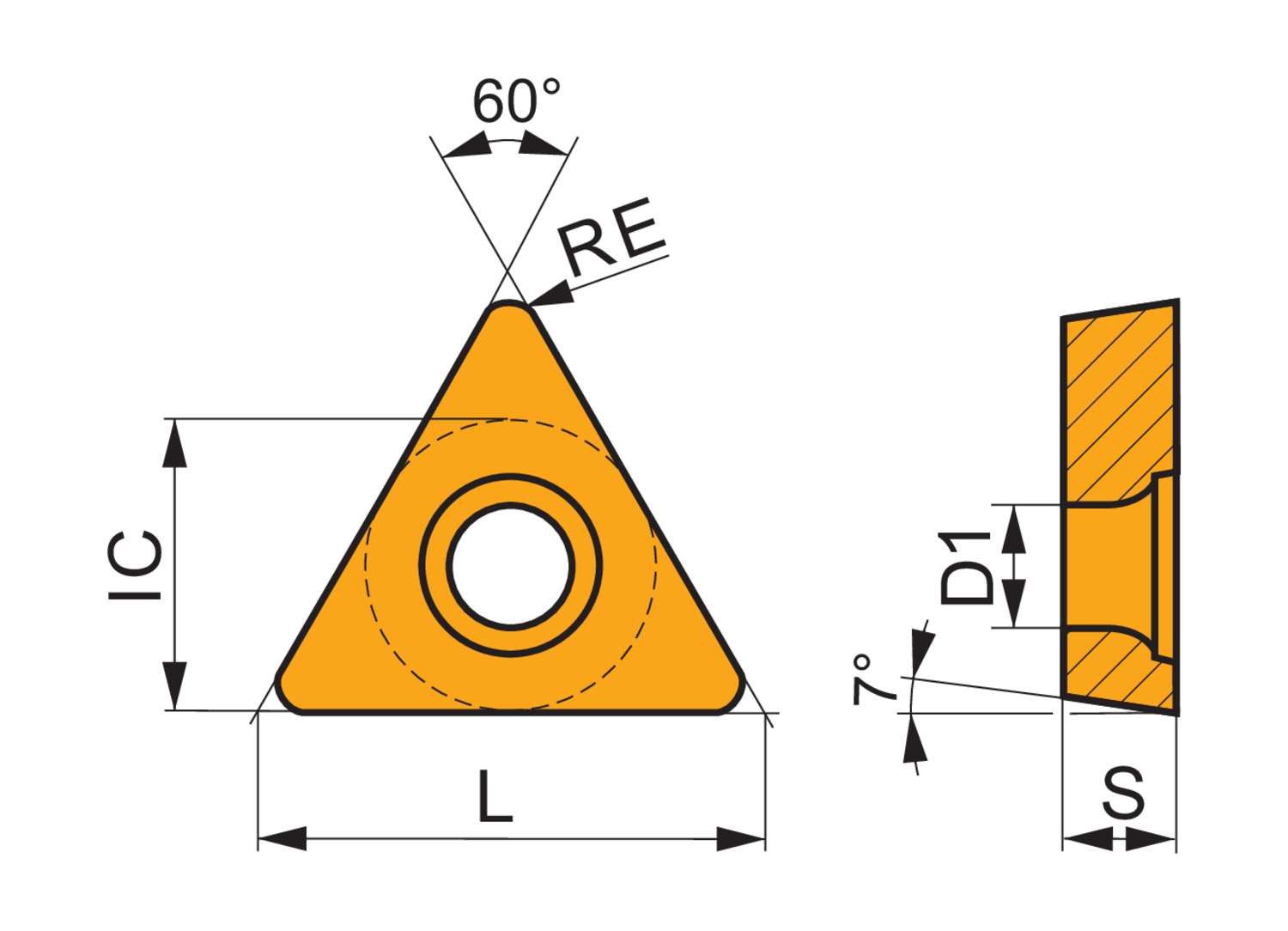

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 7/32, 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FF2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels
- Product Name ISO: TCMT 090204E-FF2:T9325
- Ordering Code ANSI: TCMT 1.81.51-FF2:T9325
- EDP Number: 6756120
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.5 |
| Inscribing Circle Dia. (Mm.) | 5.56 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.098 |
| Insert Geometry | Positive |
| Coating | T9325 |
