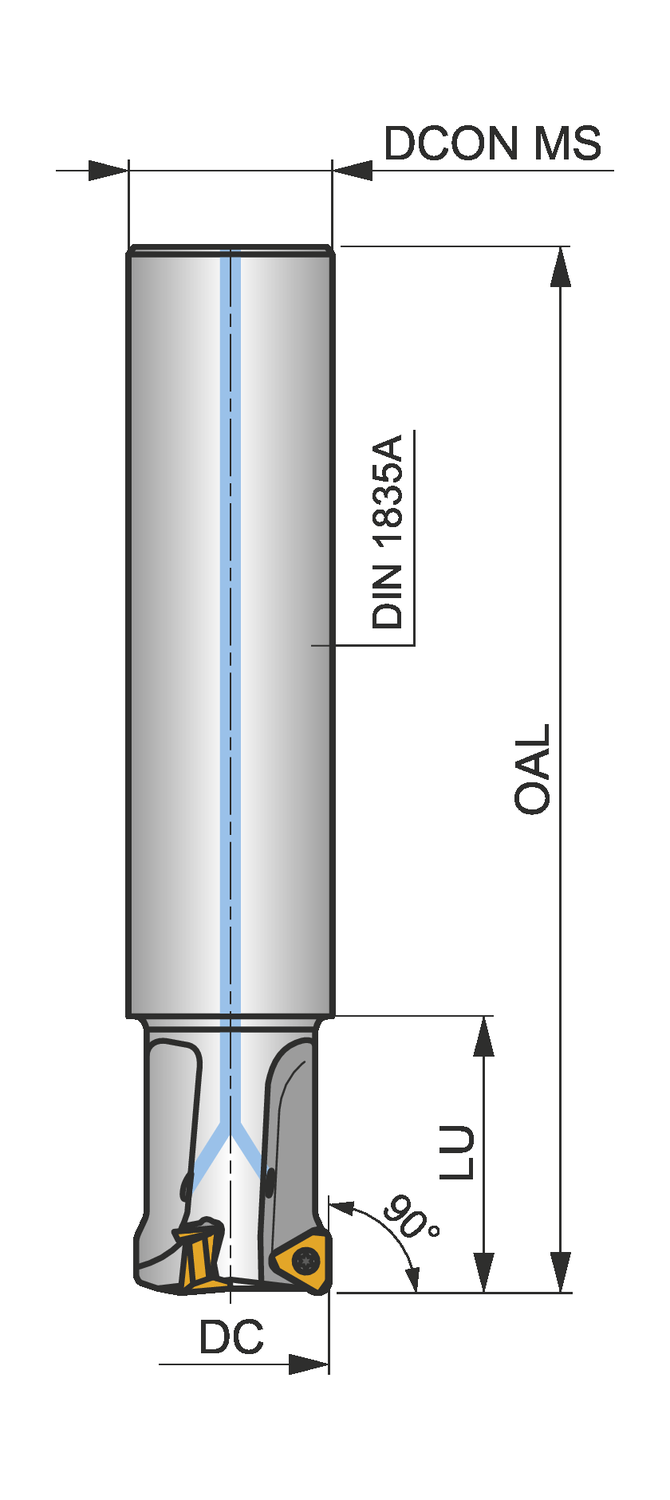

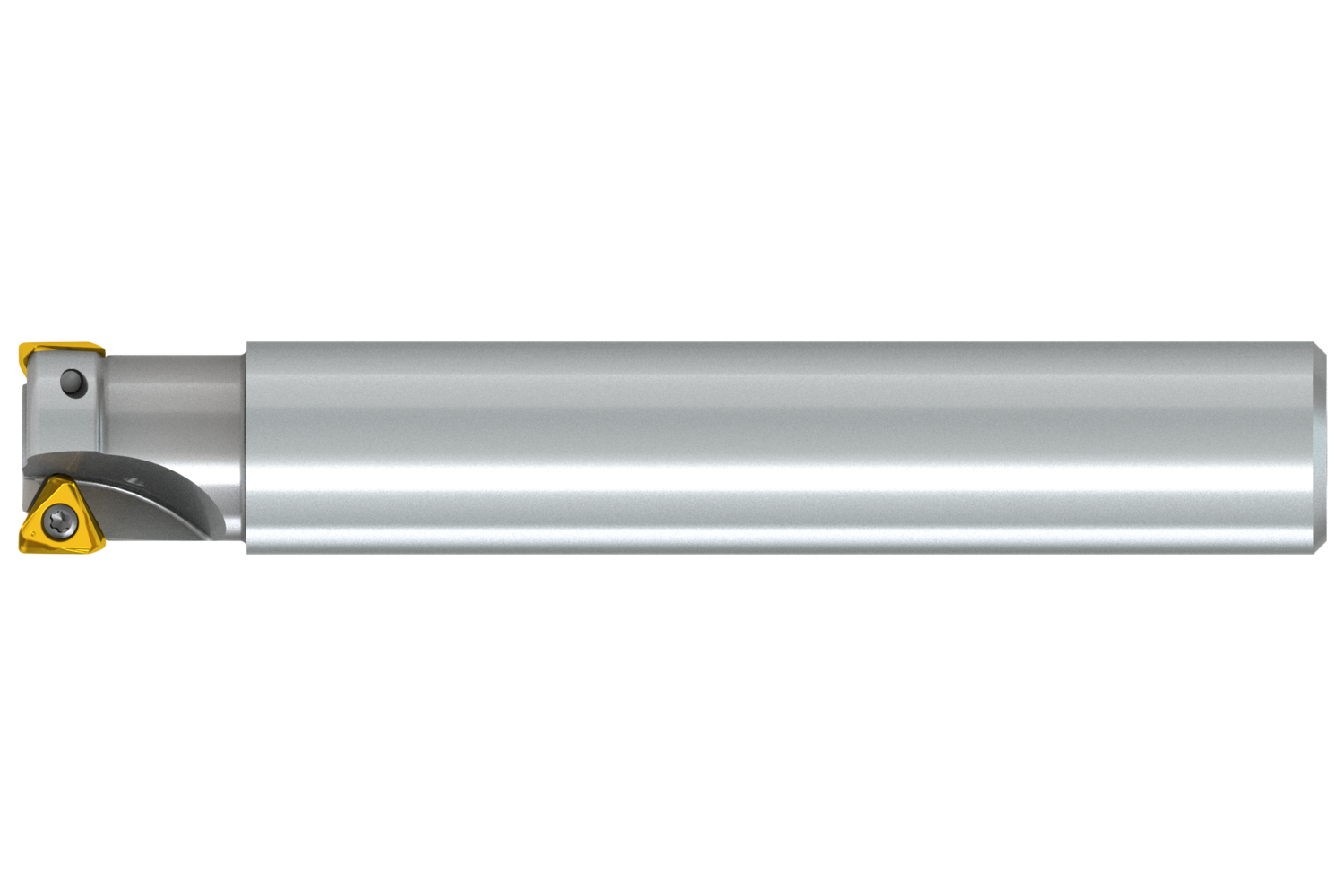

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 1.250" with 90° approach angle and parallel shank according to DIN 1835A, , through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
- Product Name ISO: 125A2R130C125-ISTN16-C
- Ordering Code ANSI: 125A2R130C125-ISTN16-C
- EDP Number: 8021685
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 31.75 |
| Cutting Diameter (In.) | 1.25 |
| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 195 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 7.677 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
