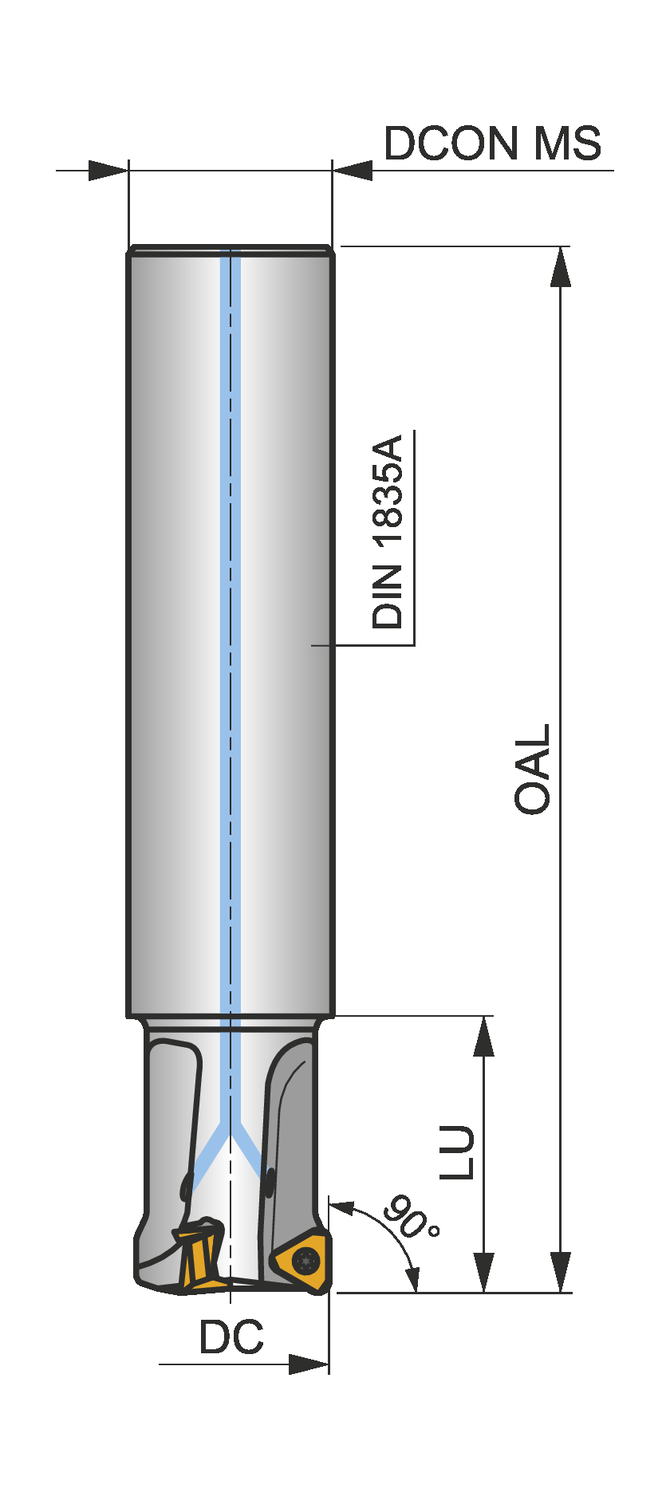

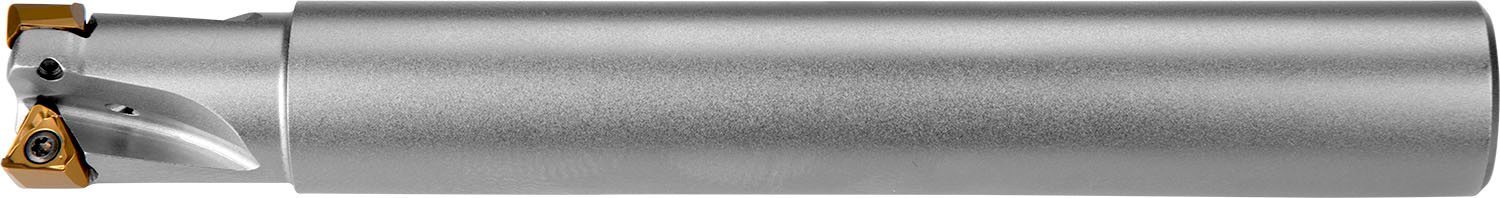

Shoulder face mill with double negative geometry which utilises 2 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90° approach angle and .750'' parallel shank according to DIN 1835A, 1.142'' functional and 5.906'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
- Product Name ISO: 075A2R114C075-ISTN10-C
- Ordering Code ANSI: 075A2R114C075-ISTN10-C
- EDP Number: 7276931
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 19.1 |
| Cutting Diameter (In.) | 0.75 |
| Connection Diameter (Mm.) | 19.1 |
| Overall Length (Mm.) | 150 |
| Connection Diameter (In.) | 0.75 |
| Overall Length (In.) | 5.906 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
