Shoulder face mill with double negative geometry which utilises 4 off TNGX 1004.. double-sided inserts, cutting diameter 1.250'' with 90° approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
- Product Name ISO: 125A4R169M16-ISTN10-C
- Ordering Code ANSI: 125A4R169M16-ISTN10-C
- EDP Number: 7276941
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

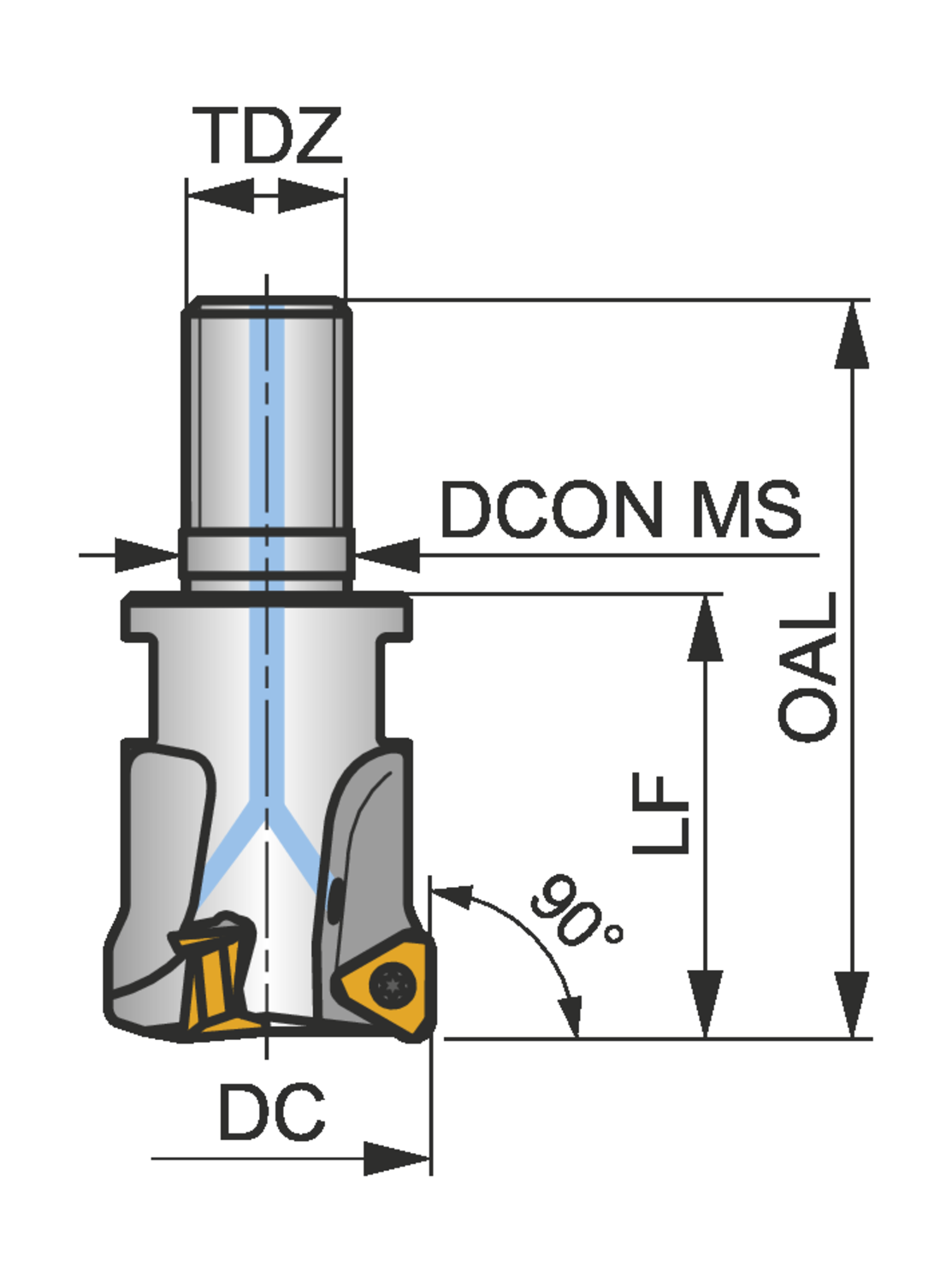

Product Measurement Standard | Inch |
Cutting Diameter (Mm.) | 31.8 |
Cutting Diameter (In.) | 1.25 |
Connection Diameter (Mm.) | 17 |
Overall Length (Mm.) | 66 |
Connection Diameter (In.) | 0.669 |
Overall Length (In.) | 2.598 |
Shank | Threaded Coupling |
Cutting Direction | Right |
Clamping Type | Screw Clamping Through Hole |
Cooling | 1 |
Thread Diameter Size | M16 |
