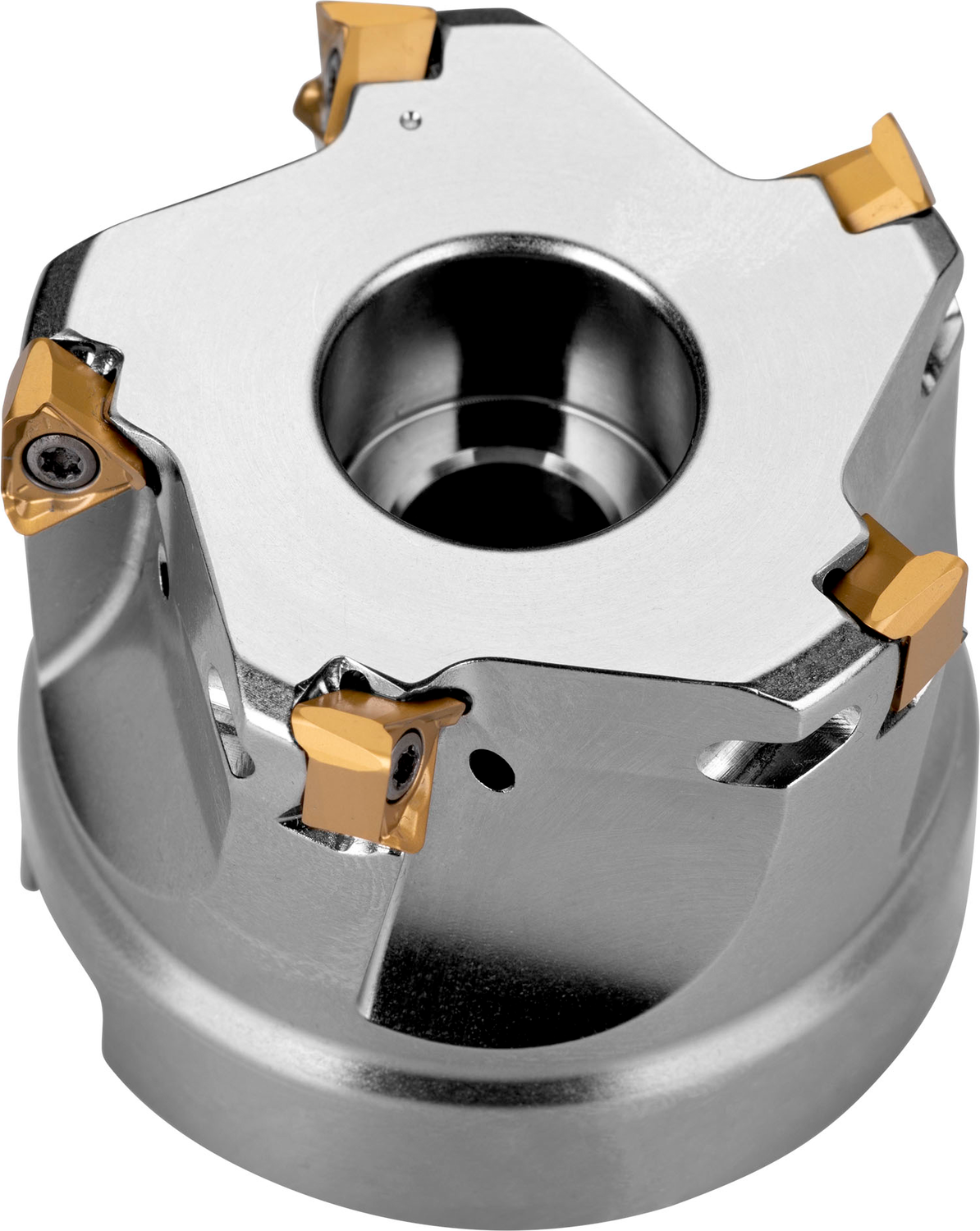

Shoulder face mill with double negative geometry which utilises 10 off TNGX 1004.. double-sided inserts, cutting diameter 3.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
- Product Name ISO: 300A10R-IS90TN10-C
- Ordering Code ANSI: 300A10R-IS90TN10-C
- EDP Number: 7276924
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

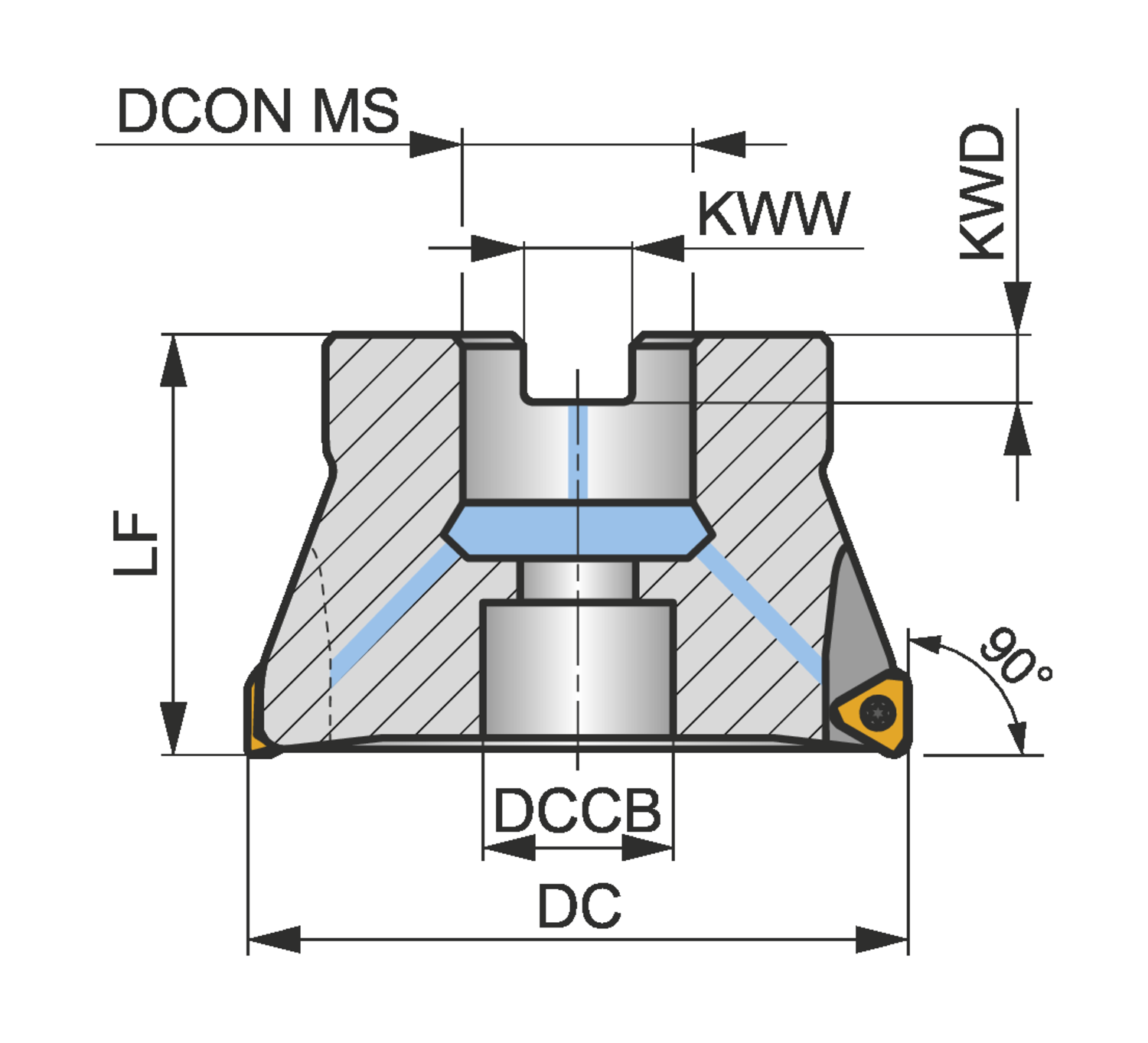

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 76.2 |
| Cutting Diameter (In.) | 3 |
| Connection Diameter (Mm.) | 25.4 |
| Connection Diameter (In.) | 1 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
