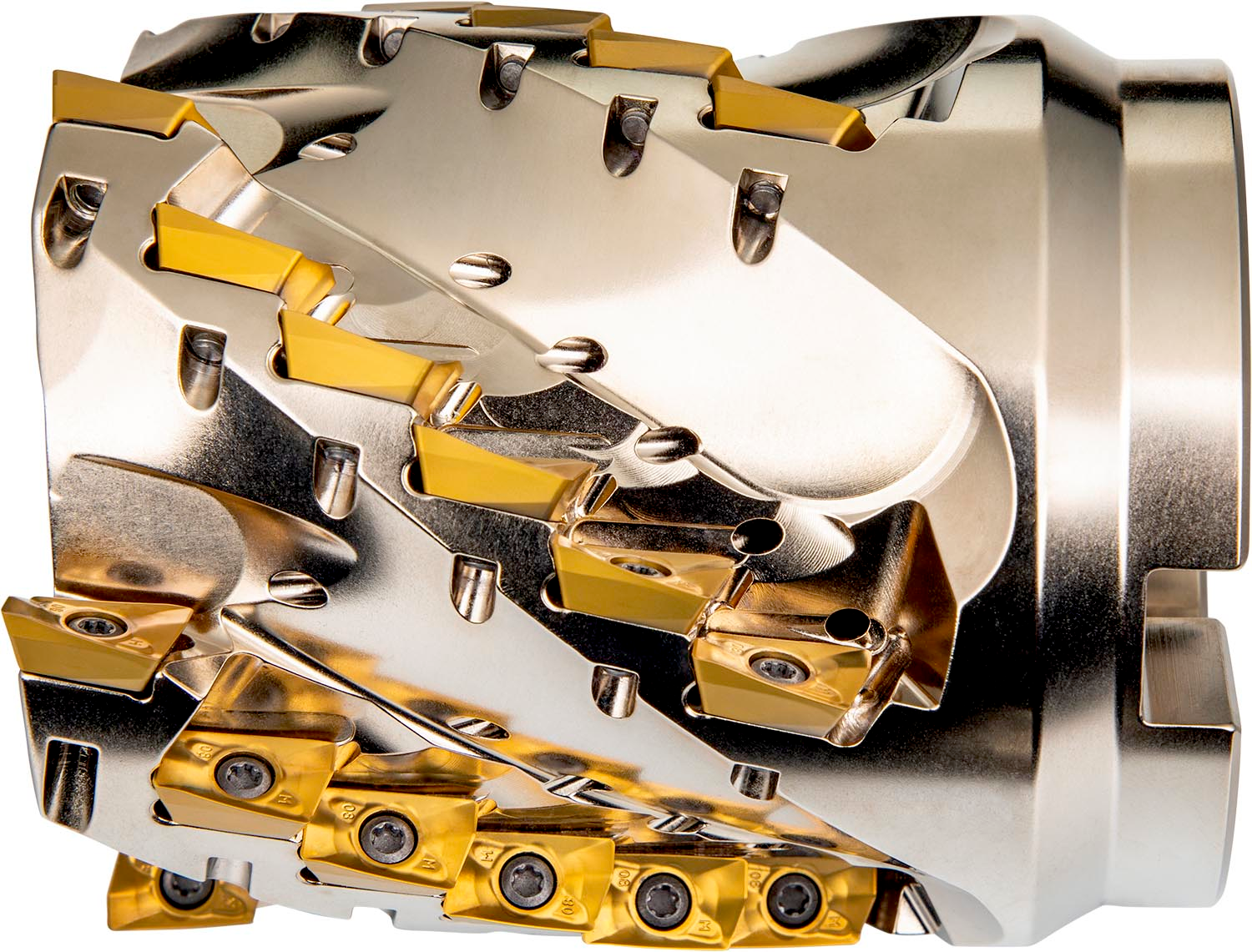

Shoulder mill which utilises 5 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 4.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030, 3.15'' protrusion length for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling
- Product Name ISO: 400T05R-IS90AD16E315-C
- Ordering Code ANSI: 400T05R-IS90AD16E315-C
- EDP Number: 7276987
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 4 |
| Max Depth of Cut (In.) | 3.22 |
| Connection Diameter (In.) | 1.5 |
| Overall Length (In.) | 4.72 |
| Shank | Shell Mill DIN 8030 – Helical Mill |
| Flute Count | 5 |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
