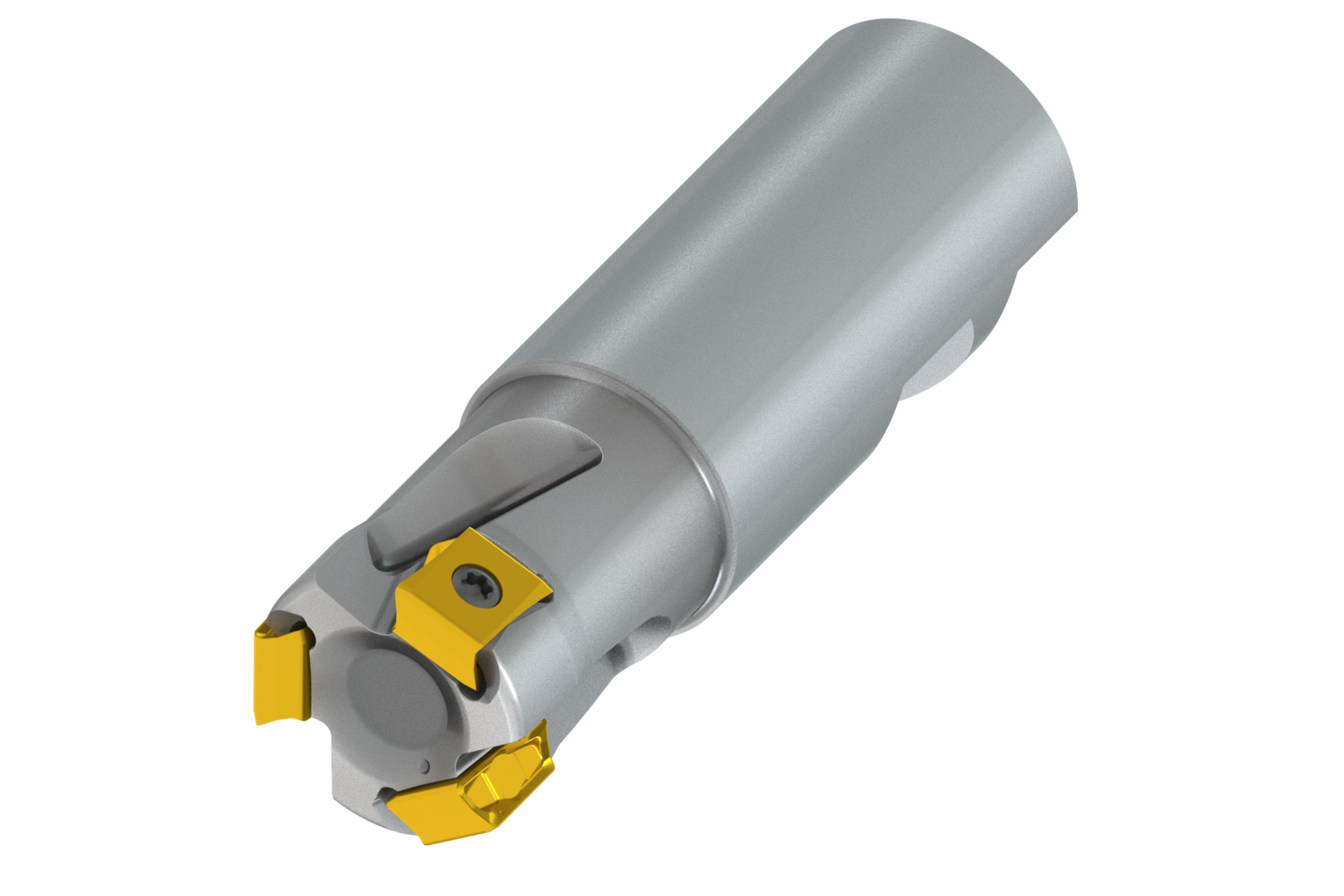

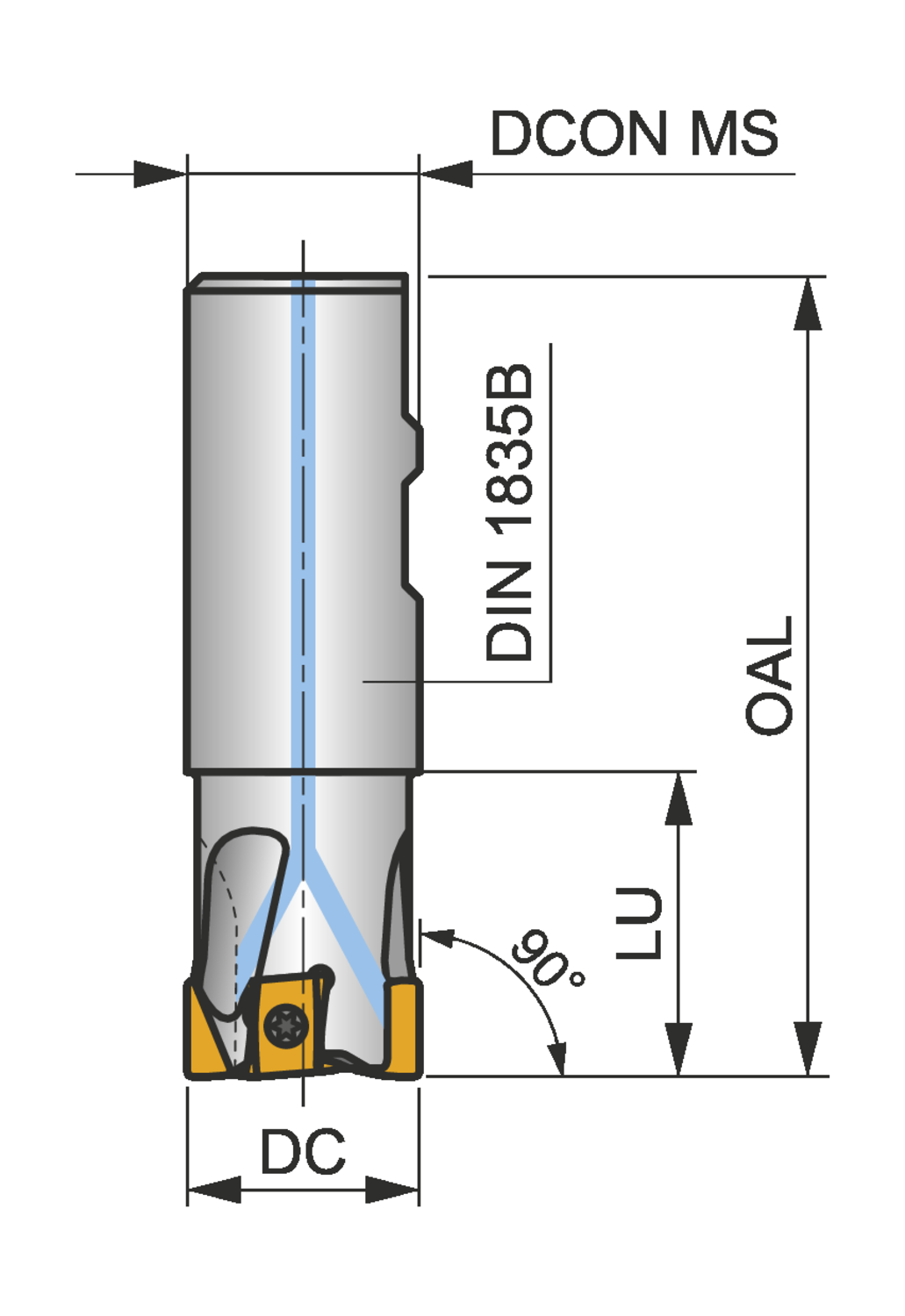

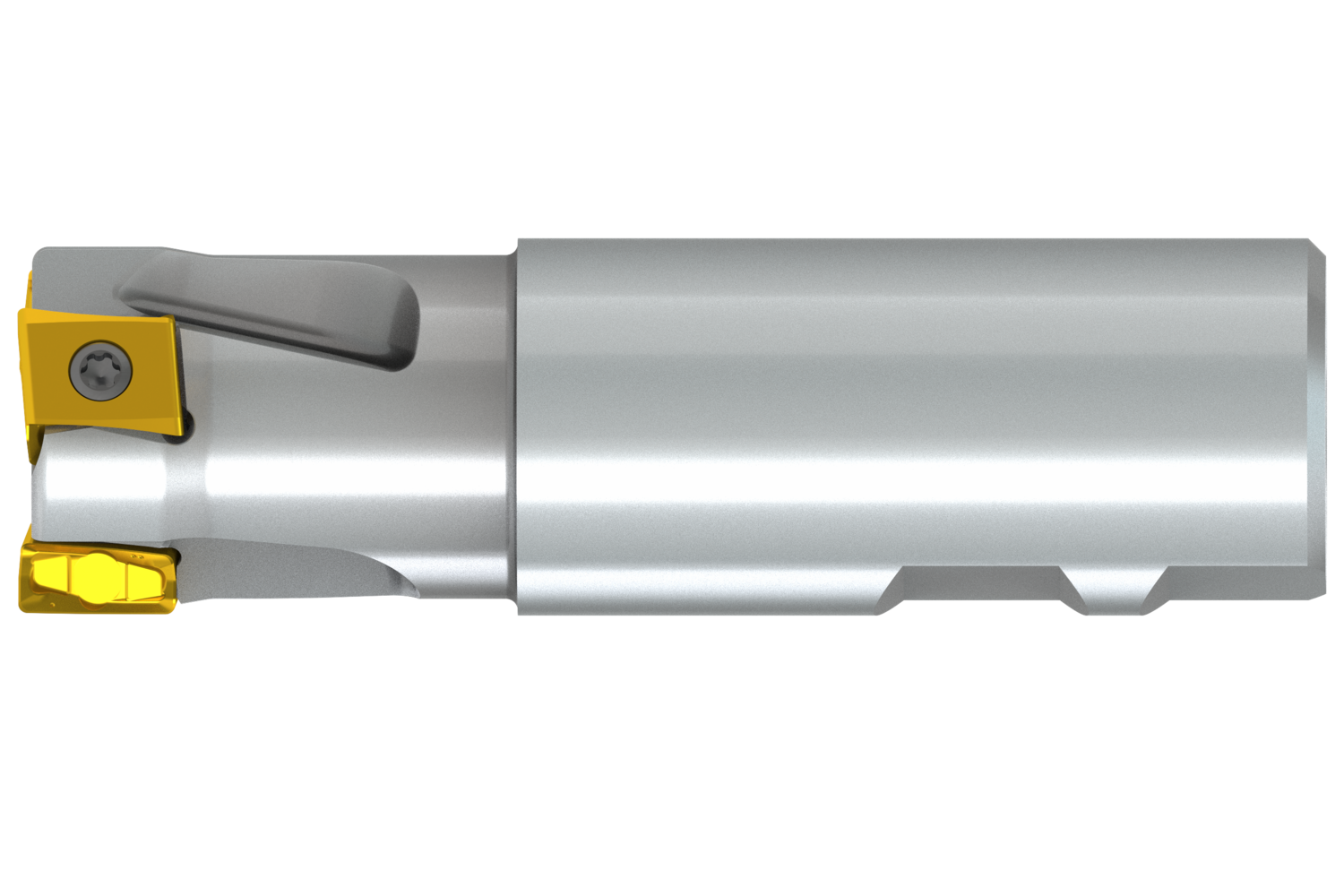

Shoulder mill with double negative geometry which utilises 3 of LNEX 1210.. double-sided inserts, cutting diameter 1.250" with 90° approach angle and 1.250" Weldon shank according to DIN 1835B, 1.654" usable and 4.331" overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394"

• Product Name ISO: 125A3R165W125-ISLN12X-C
• Ordering Code ANSI: 125A3R165W125-ISLN12X-C
• EDP Number: 8186013
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
