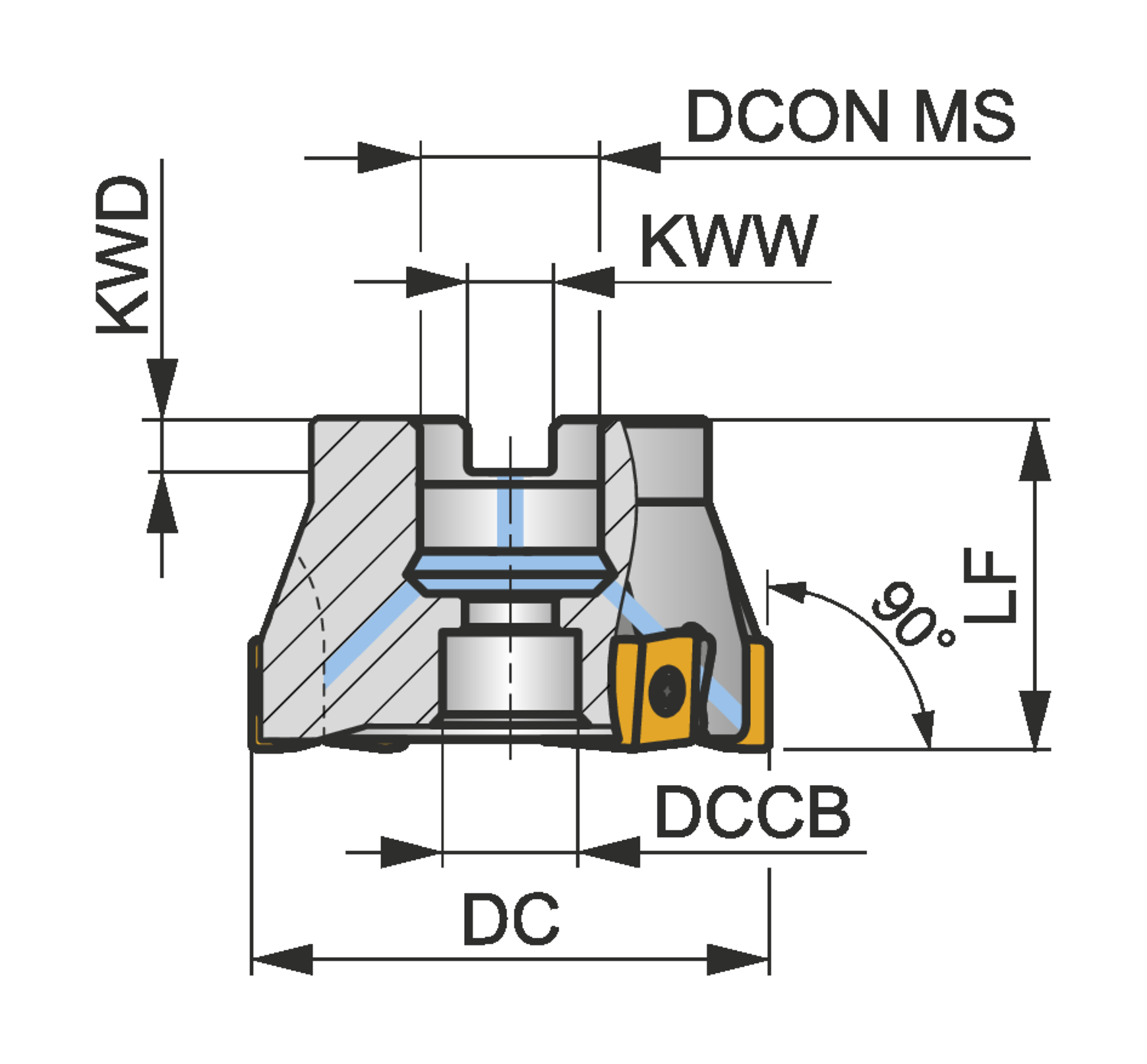

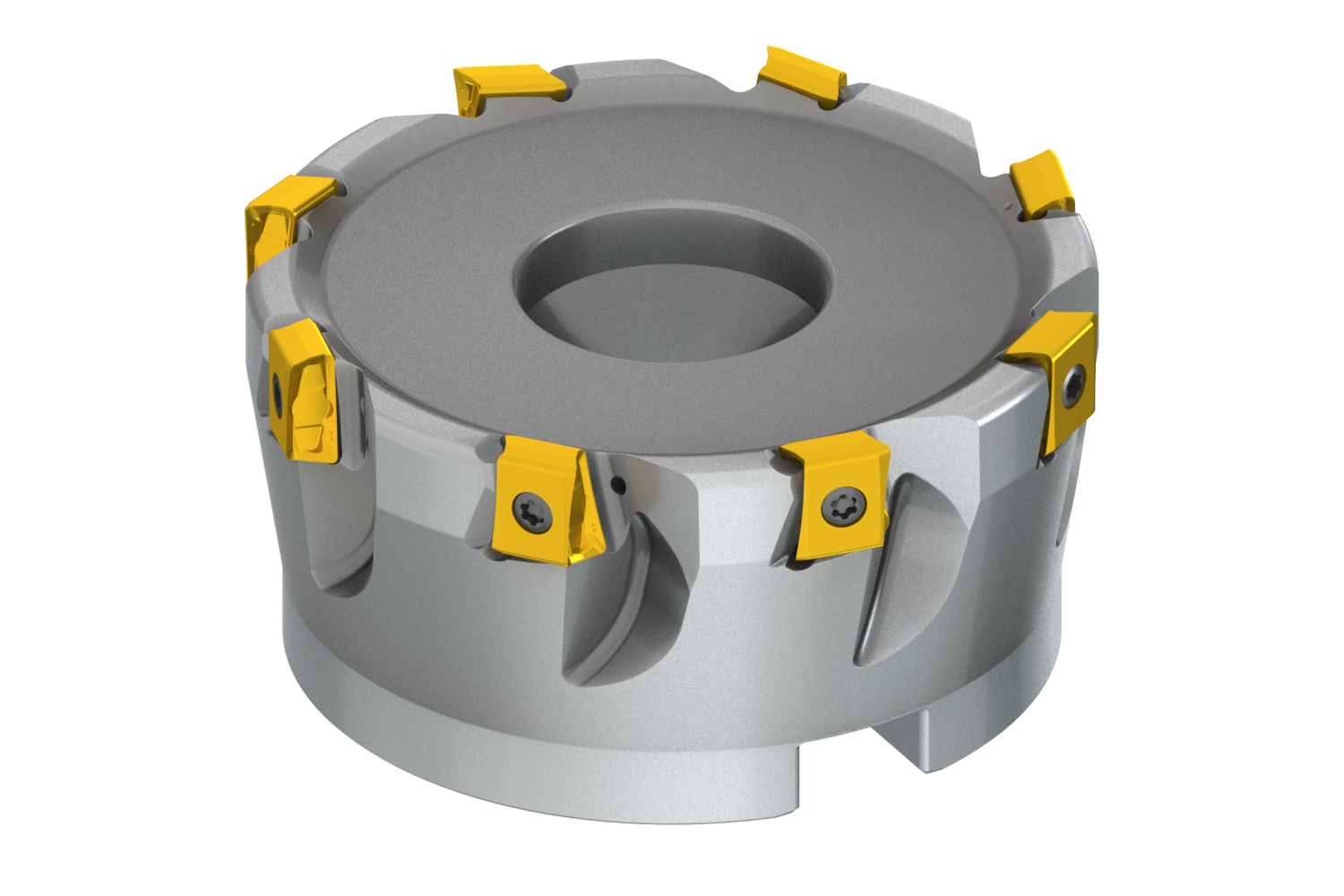

Shoulder mill with double negative geometry which utilises 8 of LNEX 1210.. double-sided inserts, cutting diameter 4.000" with 90° approach angle and 1.500" connection bore according to DIN 8030-A, 1.969" functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 0.394"

• Product Name ISO: 400A08R-IS90LN12X-C
• Ordering Code ANSI: 400A08R-IS90LN12X-C
• EDP Number: 8185986
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
