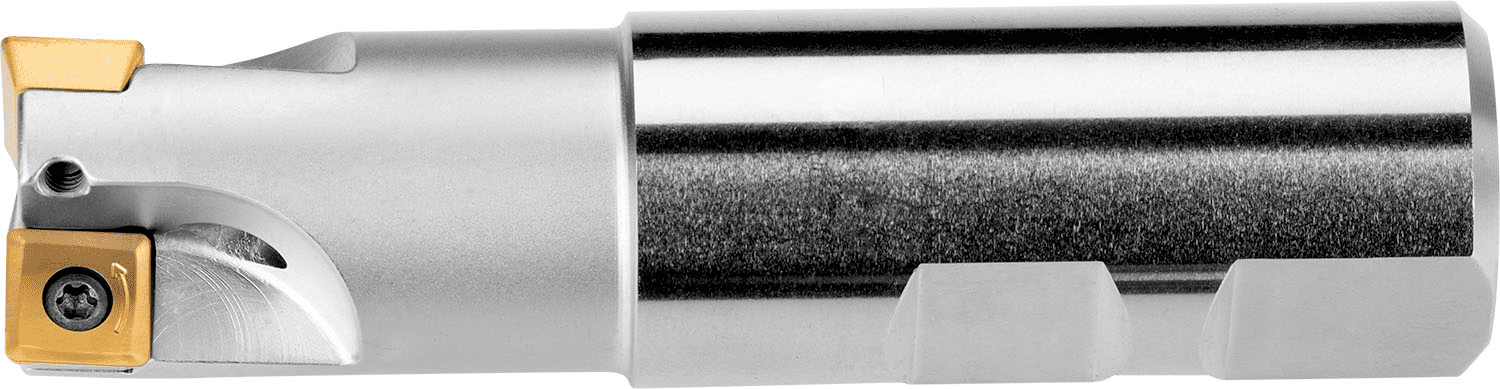

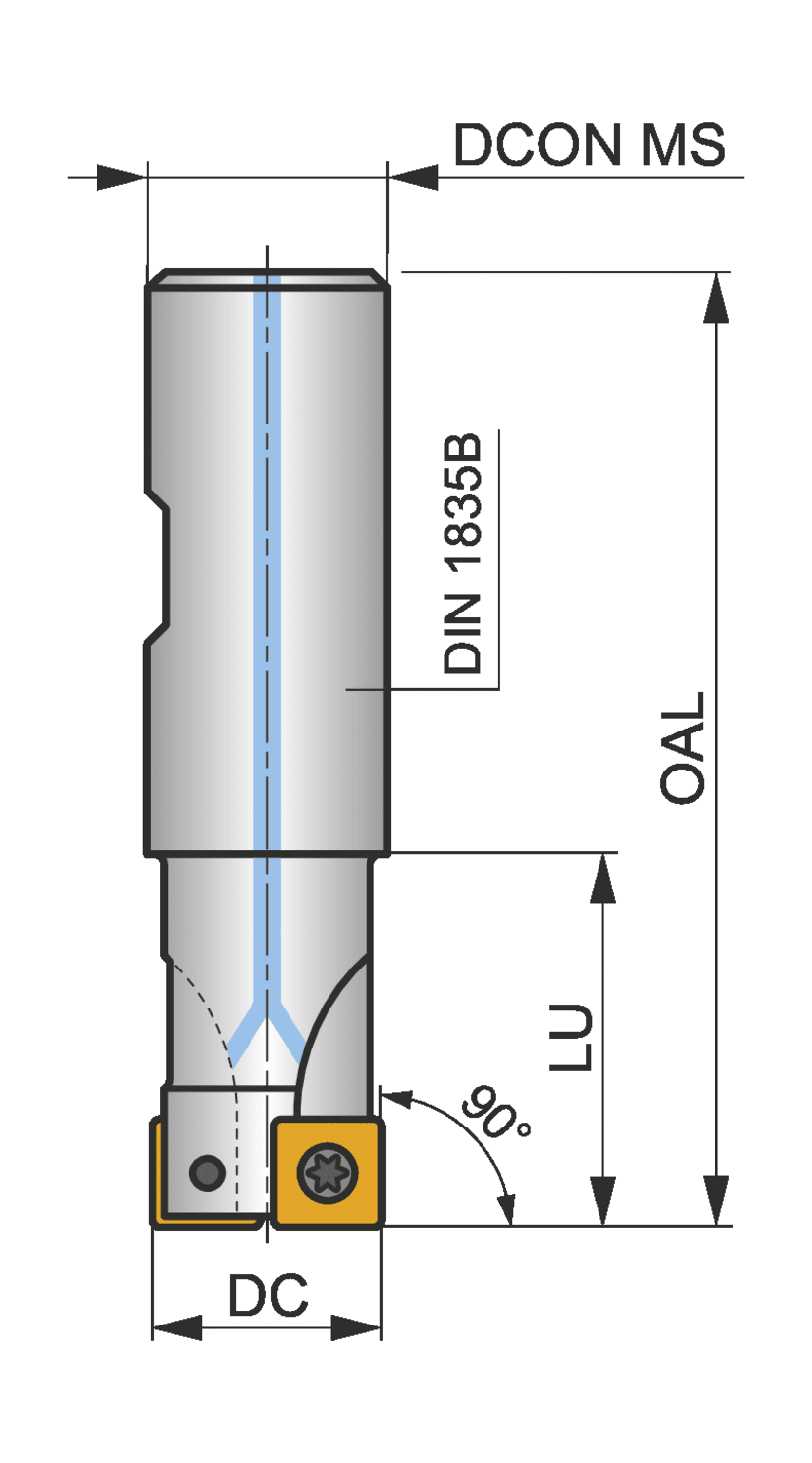

Shoulder mill with positve/negative geometry which utilises 3 off SOMT 09T3.. single-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' Weldon shank according to DIN 1835B, 3.780'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''
- Product Name ISO: 100A3R128W100-ISSO09-C
- Ordering Code ANSI: 100A3R128W100-ISSO09-C
- EDP Number: 6789775
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 25.4 |
| Cutting Diameter (In.) | 1 |
| Overall Length (Mm.) | 96 |
| Overall Length (In.) | 3.78 |
| Shank | Weldon Shank DIN 1835B |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
