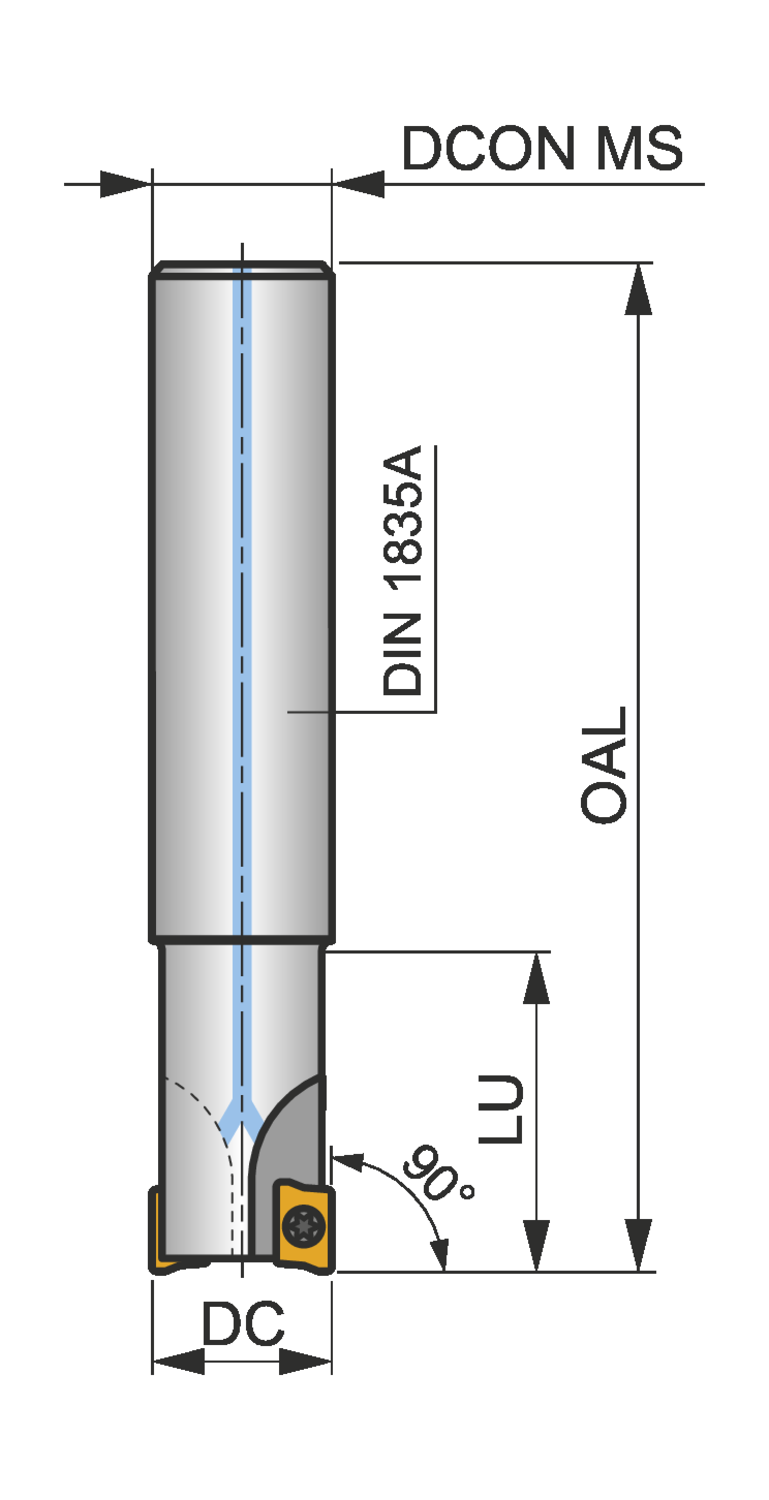

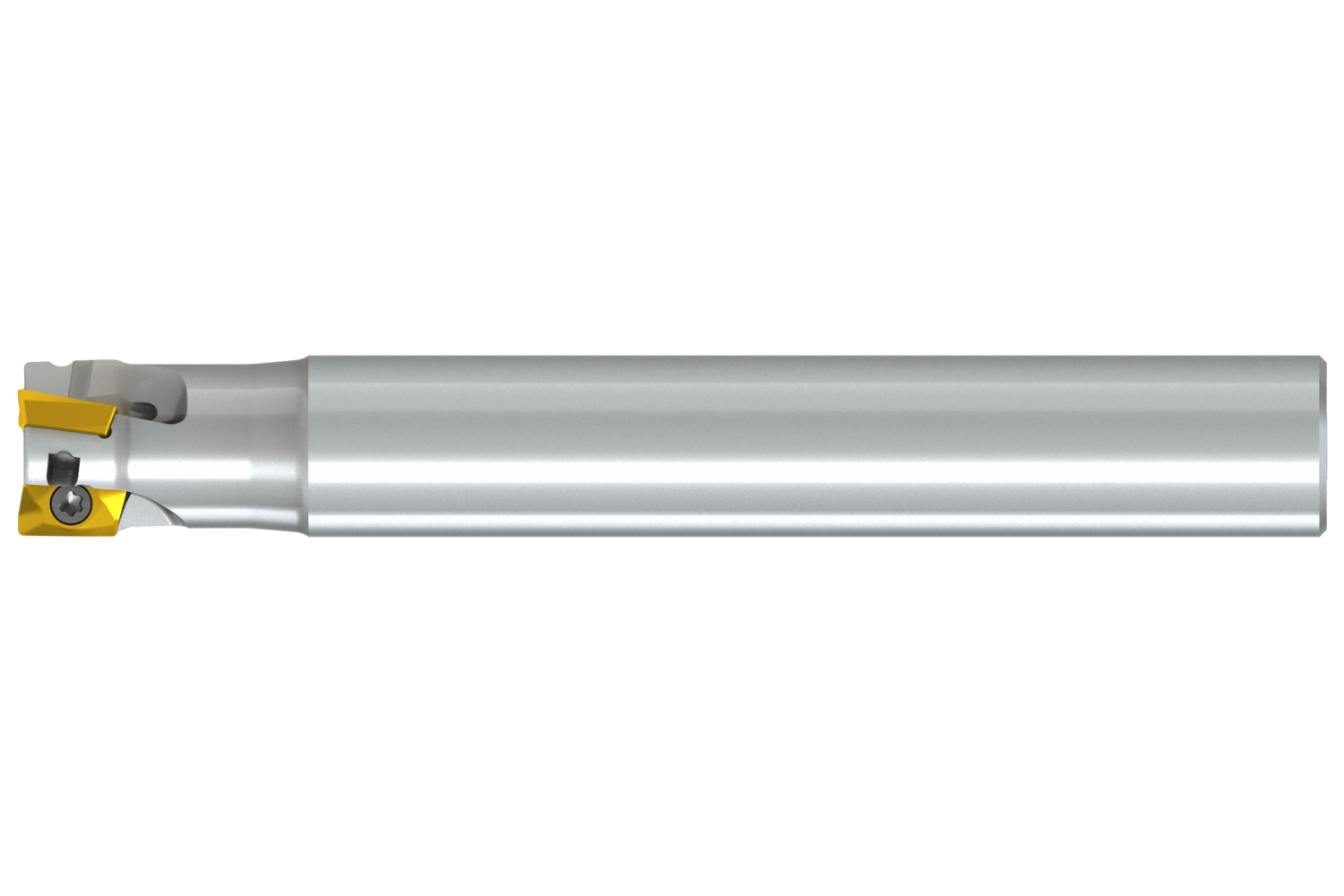

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 12,7mm 0,500" with 90° approach angle and 12,7mm 0,500" parallel shank according to DIN 1835A, 20mm 0,787" usable and 90mm 3,543" overall length, through coolant for shallow shoulder milling, plunge milling, shallow slot milling, ramping, progressive plunge milling and helical milling
- Product Name ISO: 050A3R079C050-ISAD07D-C
- Ordering Code ANSI: 050A3R079C050-ISAD07D-C
- EDP Number: 8017219
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 12.7 |
| Cutting Diameter (In.) | 0.5 |
| Connection Diameter (Mm.) | 12.7 |
| Overall Length (Mm.) | 90 |
| Connection Diameter (In.) | 0.5 |
| Overall Length (In.) | 3.543 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
