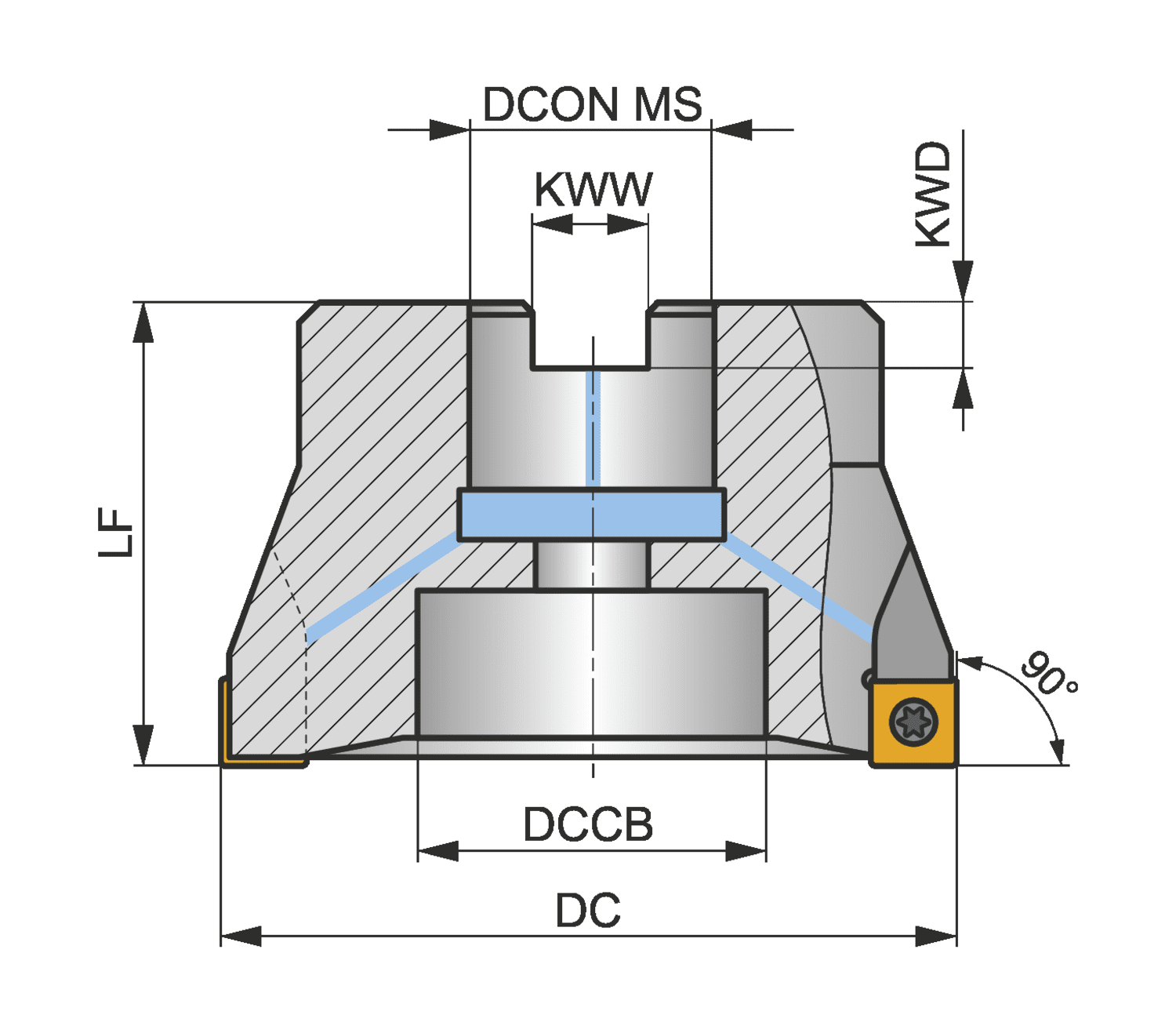

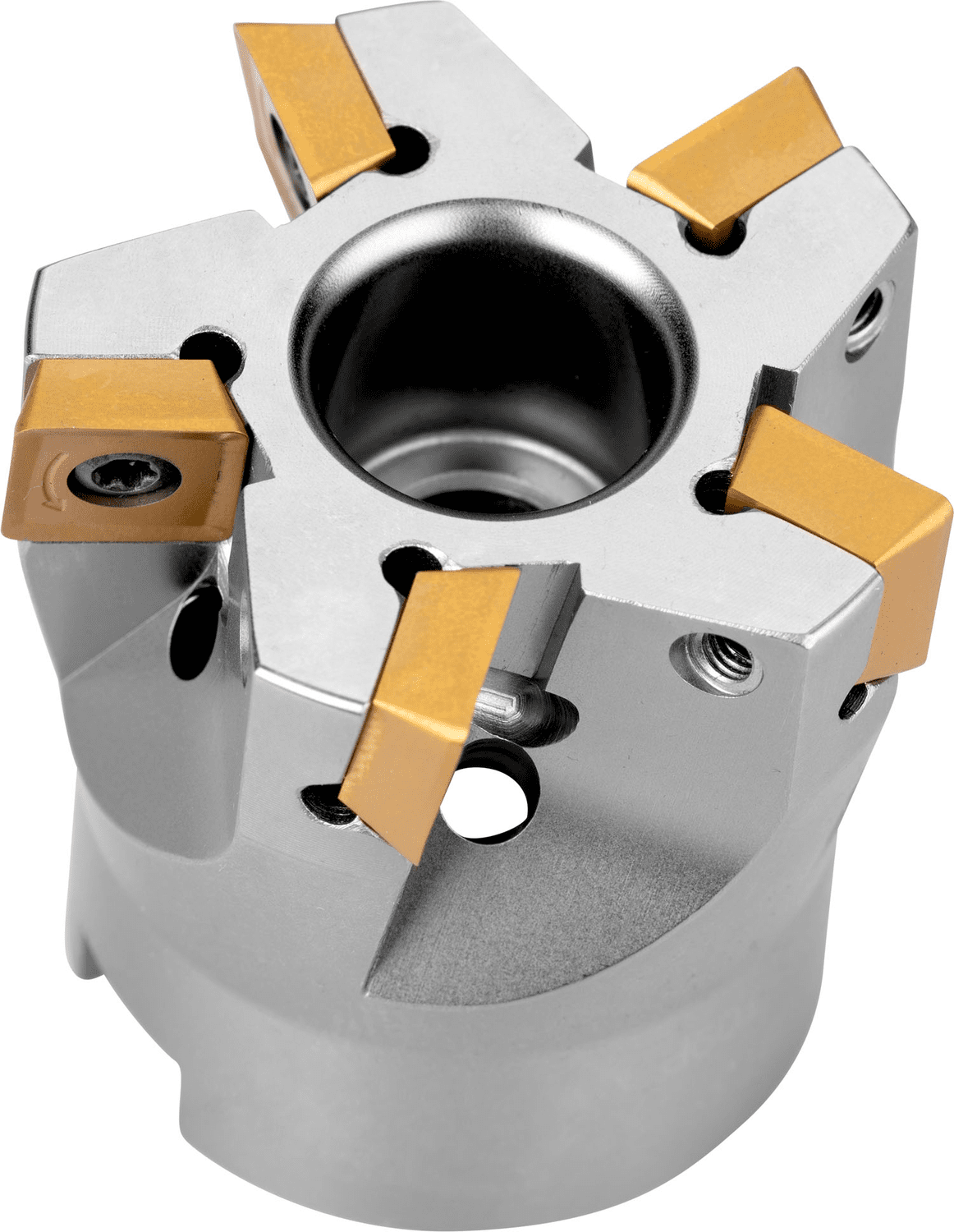

Shoulder mill with positve/negative geometry which utilises 9 off SOMT 09T3.. single-sided inserts, cutting diameter 3.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''
- Product Name ISO: 300A09R-IS90SO09-C
- Ordering Code ANSI: 300A09R-IS90SO09-C
- EDP Number: 6789780
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 76.2 |
| Cutting Diameter (In.) | 3 |
| Connection Diameter (Mm.) | 21 |
| Connection Diameter (In.) | 0.827 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
