Single Cut Speed Heavy Duty H& Pump
- 5HS2S35, 5HS2S100 and 5HS2S200 feature 2 speed operation
- Pressure relief valve for overload protection
- Load release valve for single acting cylinder usage
- Large oil capacities to power a wide range of cylinders and tools
- 5HS2S35 and 5HS2S100 are constructed of high strength lightweight aluminum alloy for easy handling and corrosion resistance
- All hand pumps function in horizontal positions and will also function in some vertical positions
- Maximum working pressure: 10,000 psi / 700 bar
- HAND PUMP SPECIFICATIONS
| Used with Cylinder | Single Acting |
| Pump Type | Single-speed |
| Usable Oil Capacity (In.3) | 36.5 |
| Pressure Rating, (PSI), 2nd Stage | 10,000 |
| Oil Displacement per Stroke, (In.3), 1st Stage | — |
| Oil Displacement per Stroke, (In.3), 2nd Stage | .15 |
| Max. Operating Force, (Lbs.) | 109 |
| Piston Stroke, (In.) | .79 |
| Oil Outlet Port | 3/8"-18NPTF |

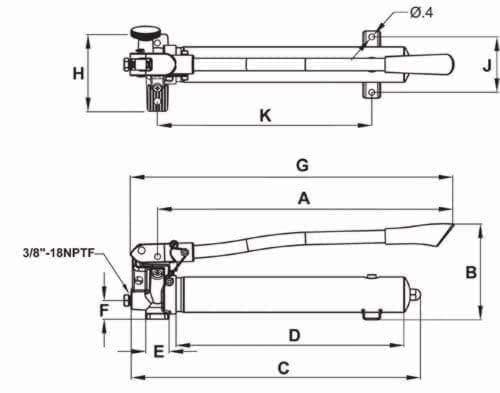

| Dimensions (In.), A | 18.94 |
| Dimensions (In.), B | 6.46 |
| Dimensions (In.), C | 19.53 |
| Dimensions (In.), D | 15.35 |
| Dimensions (In.), E | 1.57 |
| Dimensions (In.), F | 1.26 |
| Dimensions (In.), G | 20.79 |
| Dimensions (In.), H | 5.2 |
| Dimensions (In.), J | 3.74 |
| Dimensions (In.), K | 14.45 |
