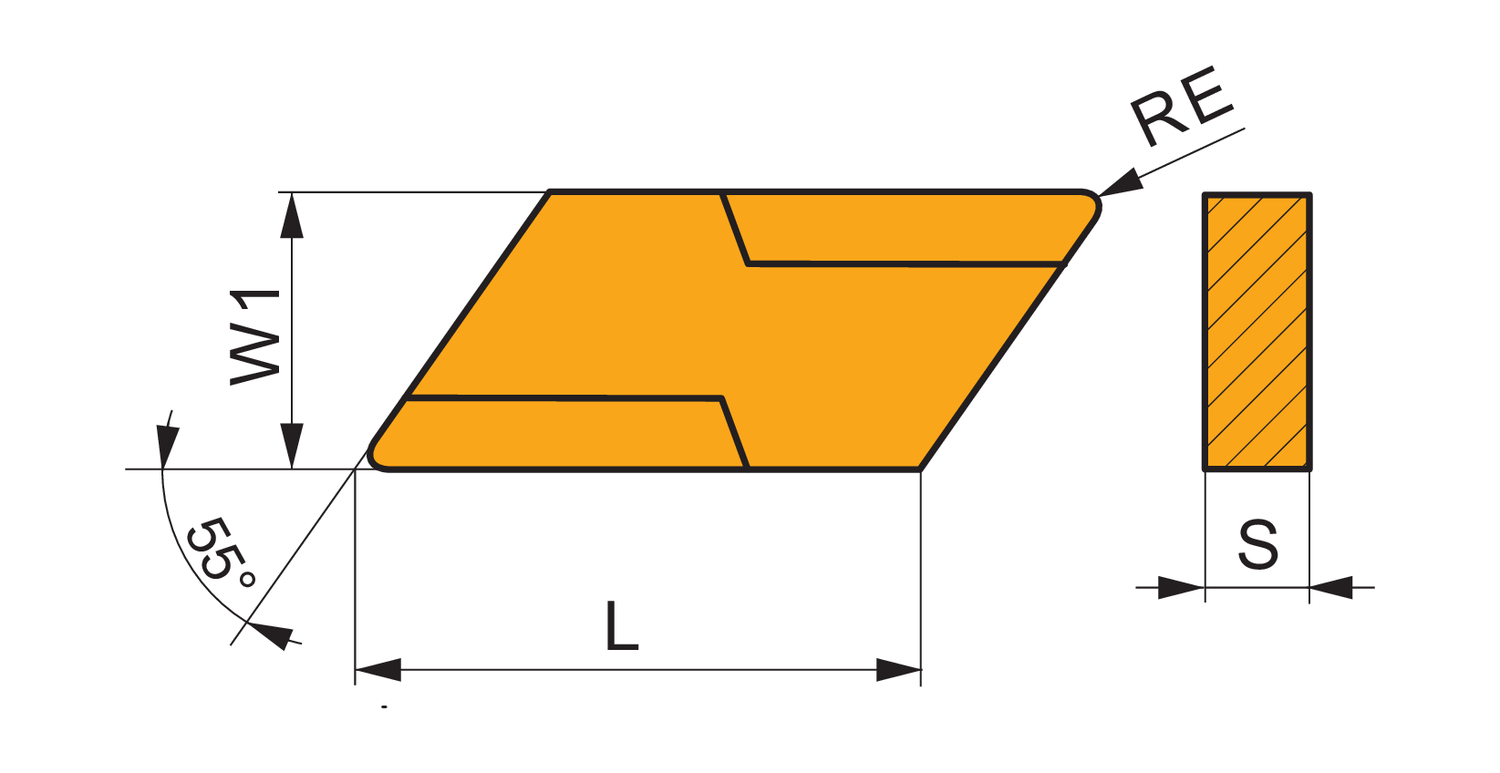

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 72 with rounded cutting edges, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons with a left handed turning tool
- Product Name ISO: KNUX 160405EL-72:T5315
- Ordering Code ANSI: KNUX 160405EL-72:T5315
- EDP Number: 6755759
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Corner Radius (Mm.) | 0.5 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.157 |
| Insert Geometry | Negative |
| Coating | T5315 |
