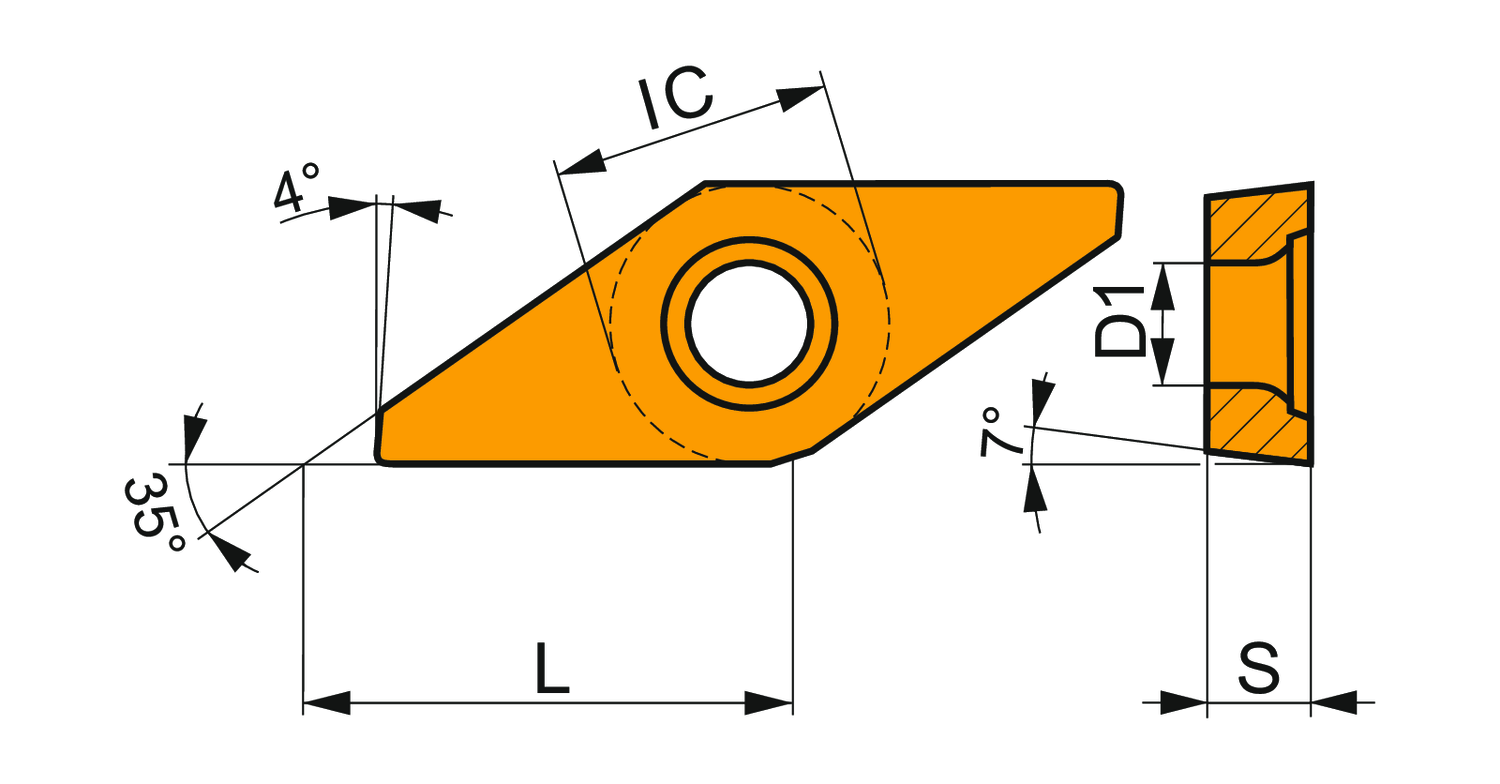

Special design positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 0.313 inch, 0.125 inch thick, nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with sharp cutting edges, in grade T8415.
- Product Name ISO: VCGX 130300FR-FF2:T8415
- Ordering Code ANSI: VCGX 2.520FR-FF2:T8415
- EDP Number: 8553285
- Coating: T8415
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.5 |
| Corner Radius (Mm.) | 0 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.059 |
| Insert Geometry | Positive |
| Coating | T8415 |
