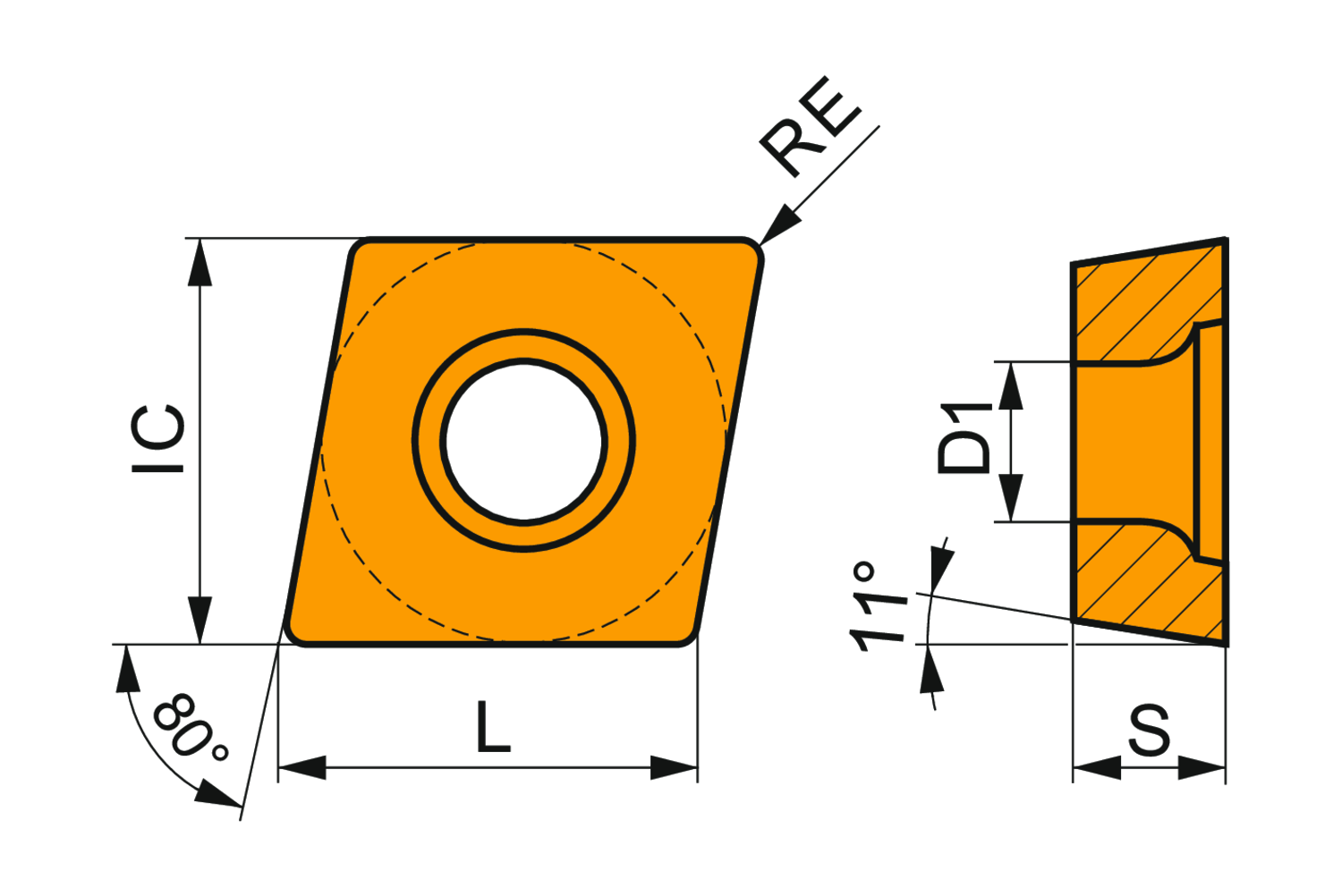

Special design positive turning insert, 80° rhomboid with 11° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker JR with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a right handed turning tool
- Product Name ISO: CPGX 060204FR-JR:TT010
- Ordering Code ANSI: CPGX 21.51FR-JR:TT010
- EDP Number: 7080618
- Coating: TT010
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.165 |
| Insert Geometry | Positive |
| Coating | TT010 |
