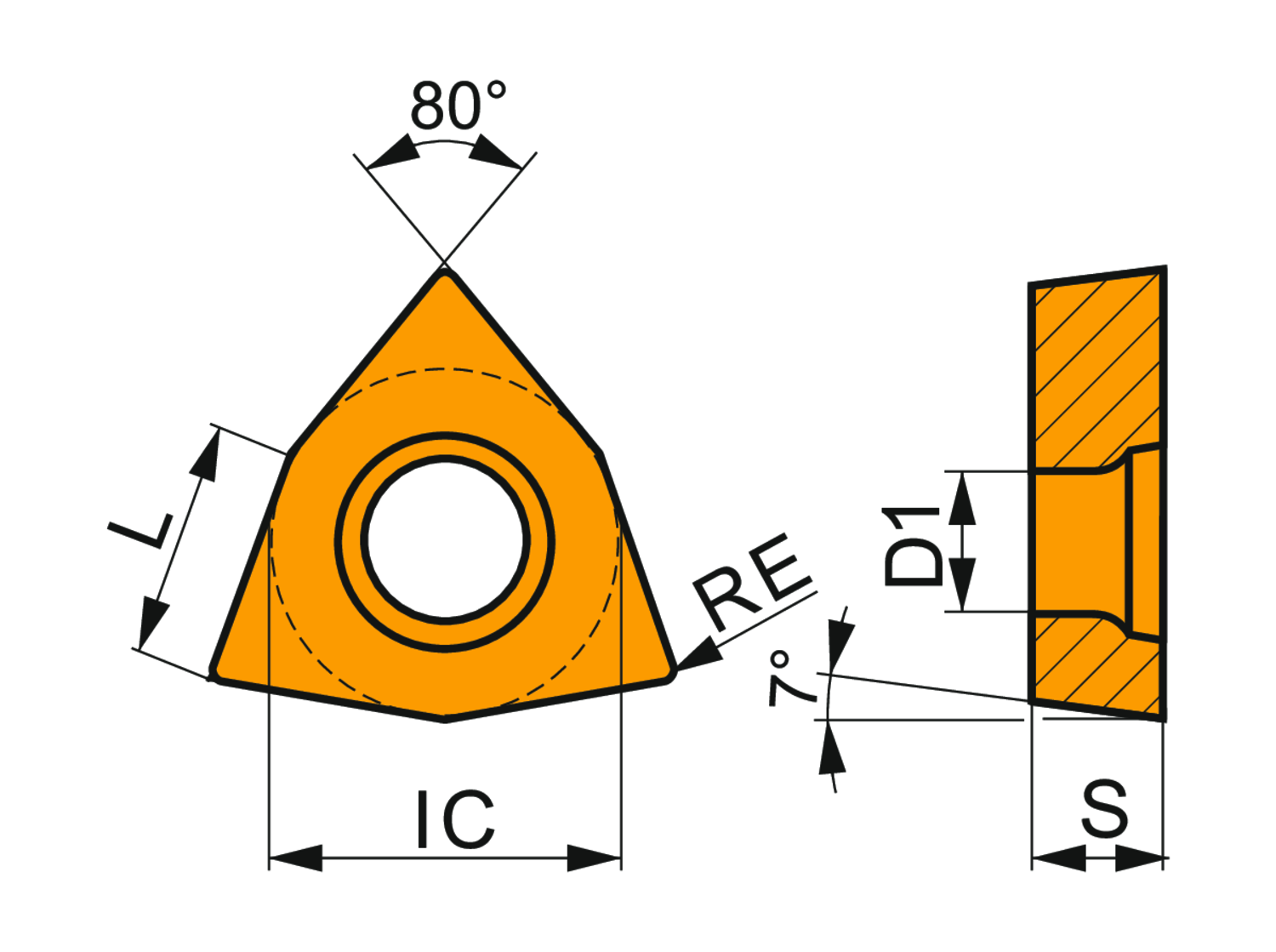

Special design positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 5/32", 1/16" thick, 1/128" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker JZ with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a left handed turning tool
- Product Name ISO: WCGX 020102FL-JZ:TT010
- Ordering Code ANSI: WCGX 1.210.5FL-JZ:TT010
- EDP Number: 7080640
- Coating: TT010
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 0.5 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Inscribing Circle Dia. (Mm.) | 3.97 |
| Insert Thickness (Mm.) | 1.59 |
| Max Depth of Cut (In.) | 0.02 |
| Insert Geometry | Positive |
| Coating | TT010 |
