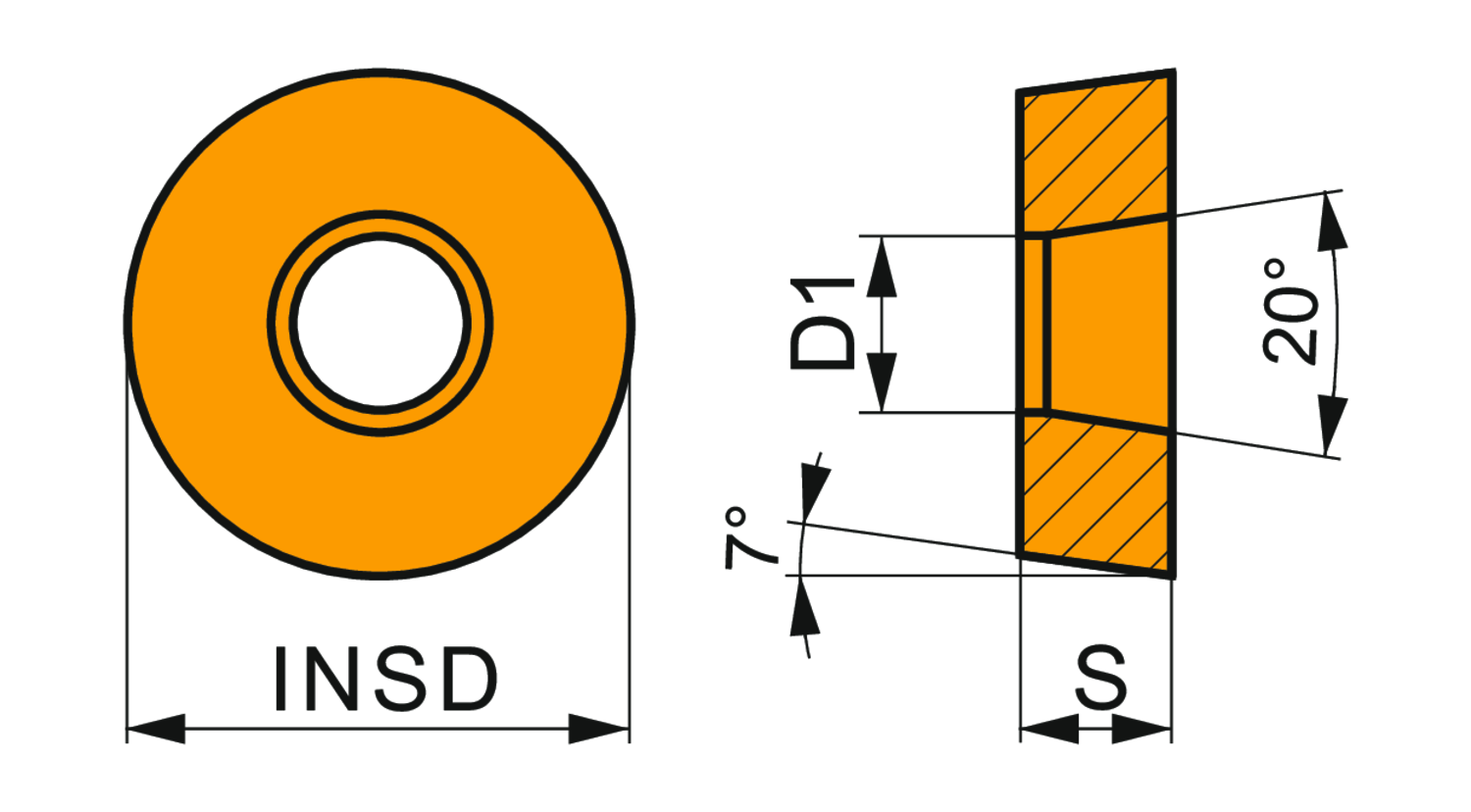

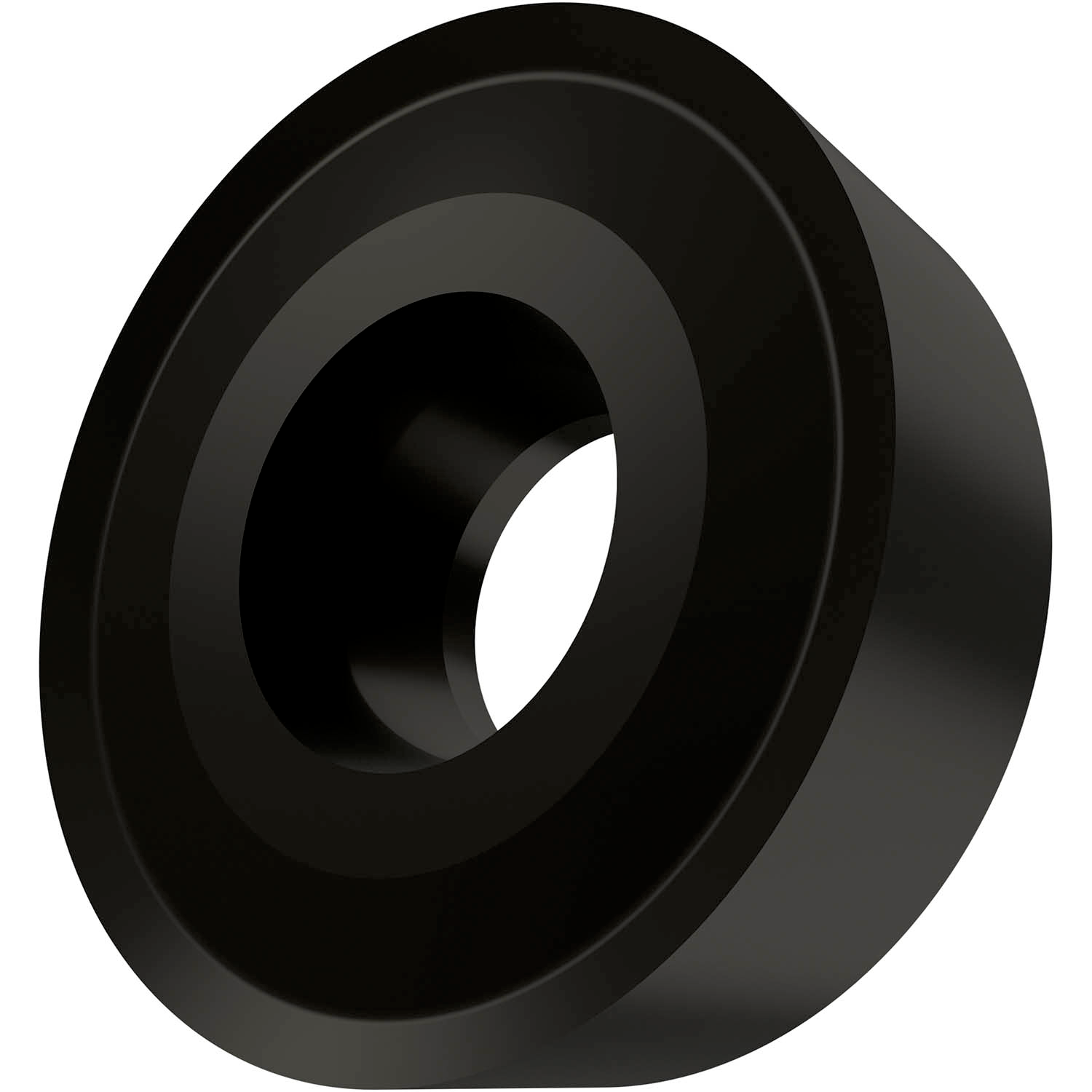

Special design positive turning insert, round with 7° clearance, a diameter of 10mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 31 with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for heavy to medium machining of steels
- Product Name ISO: RCMX 1003MOS-31:T9325
- Ordering Code ANSI: RCMX 1003MOS-31:T9325
- EDP Number: 6753989
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 3.6 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.098 |
| Coating | T9325 |
