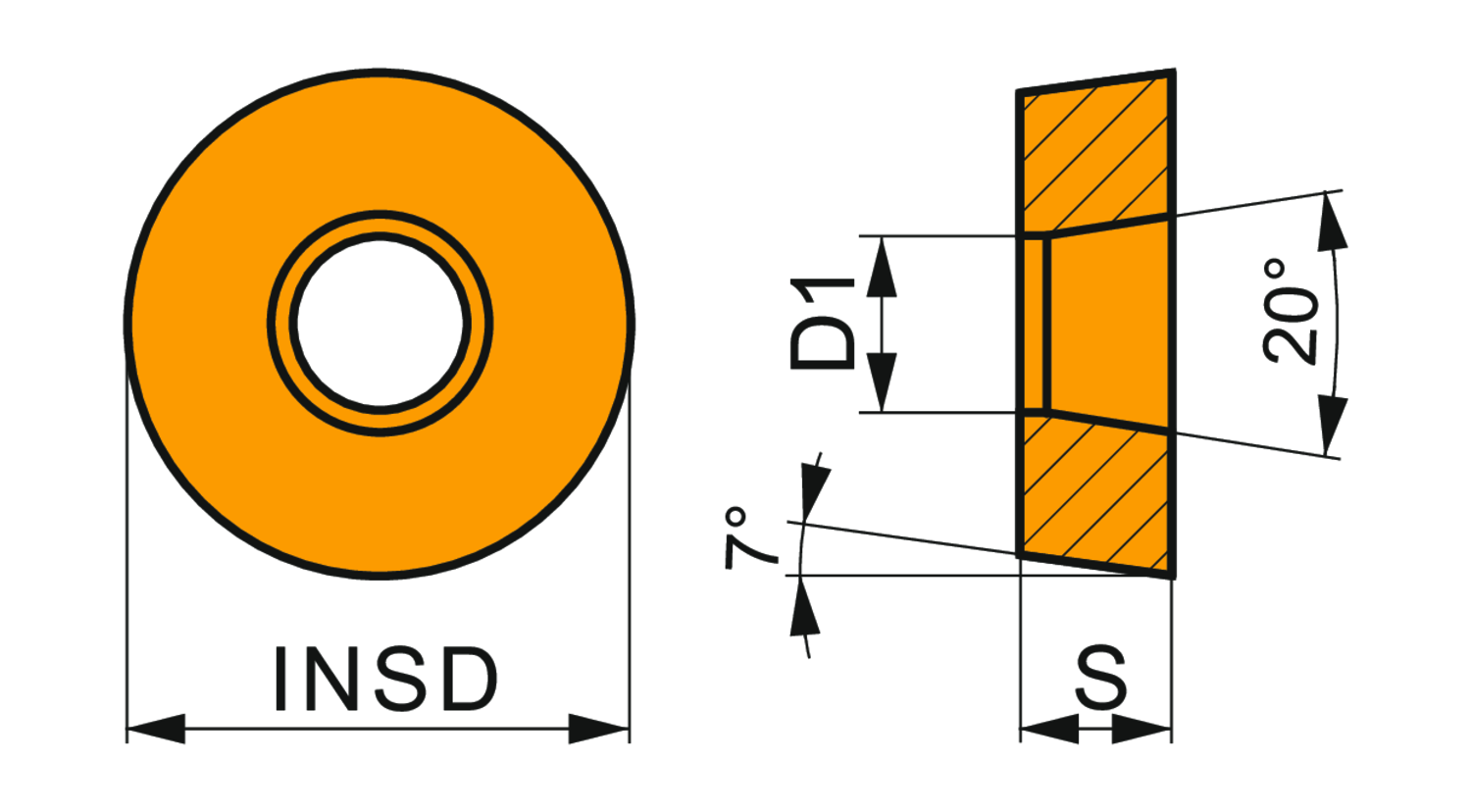

Special design positive turning insert, round with 7° clearance, a diameter of 20mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF1, in grade T5305, a MT-CVD coated WC-Co carbide within ISO range K01-K15, for heavy to medium machining of cast-irons
- Product Name ISO: RCMX 2006MO-RF1:T5305
- Ordering Code ANSI: RCMX 2006MO-RF1:T5305
- EDP Number: 6755844
- Coating: T5305
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Fixing Hole Diameter (Mm.) | 6.5 |
| Insert Dia. (Mm.) | 20 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | T5305 |
