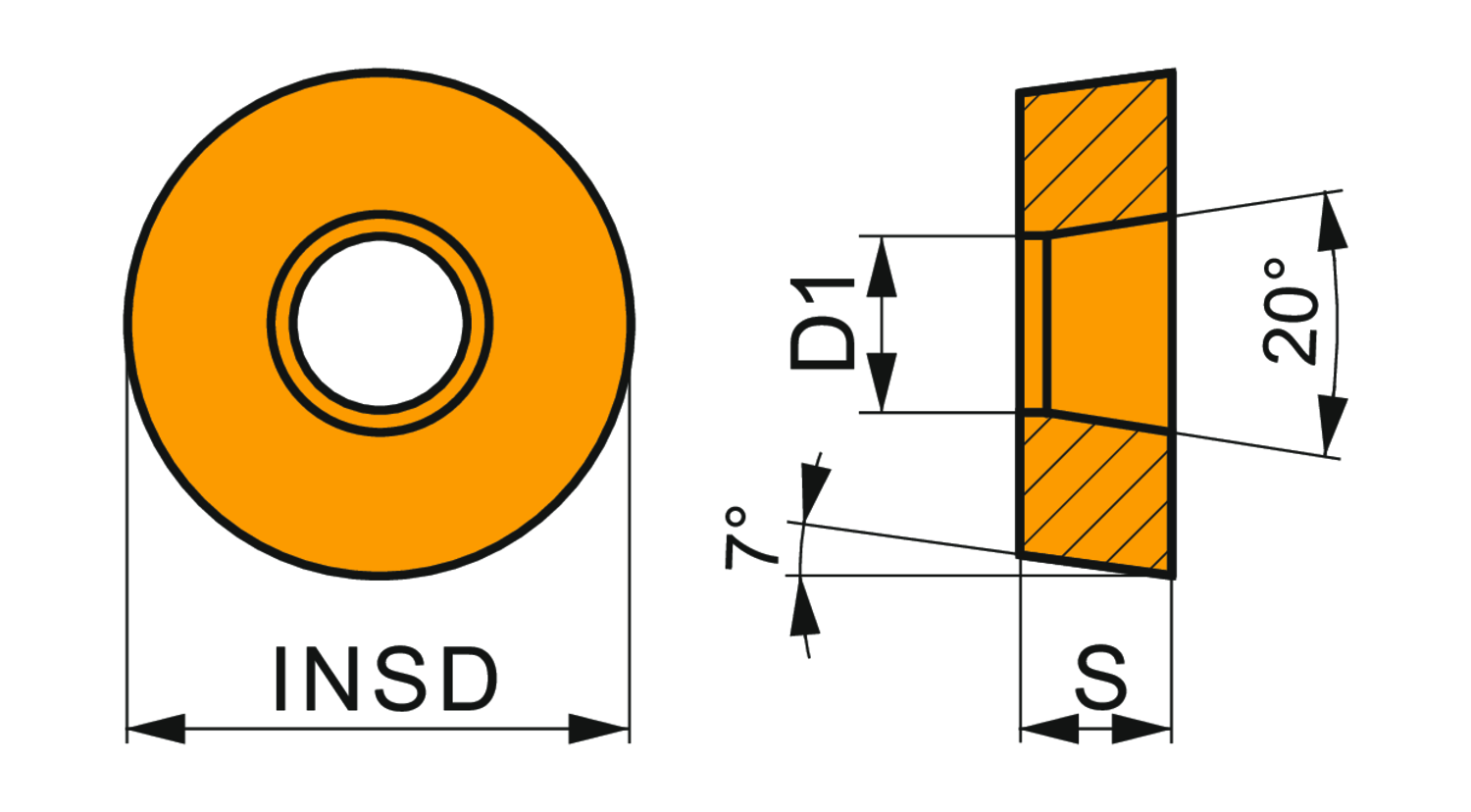

Special design positive turning insert, round with 7° clearance, a diameter of 25mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF1, in grade T8345, a PVD coated fine grained WC-Co carbide, for heavy to medium machining
- Product Name ISO: RCMX 2507MO-RF1:T8345
- Ordering Code ANSI: RCMX 2507MO-RF1:T8345
- EDP Number: 6754447
- Coating: T8345
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Fixing Hole Diameter (Mm.) | 7.2 |
| Insert Dia. (Mm.) | 25 |
| Insert Thickness (Mm.) | 7.94 |
| Max Depth of Cut (In.) | 0.276 |
| Coating | T8345 |
