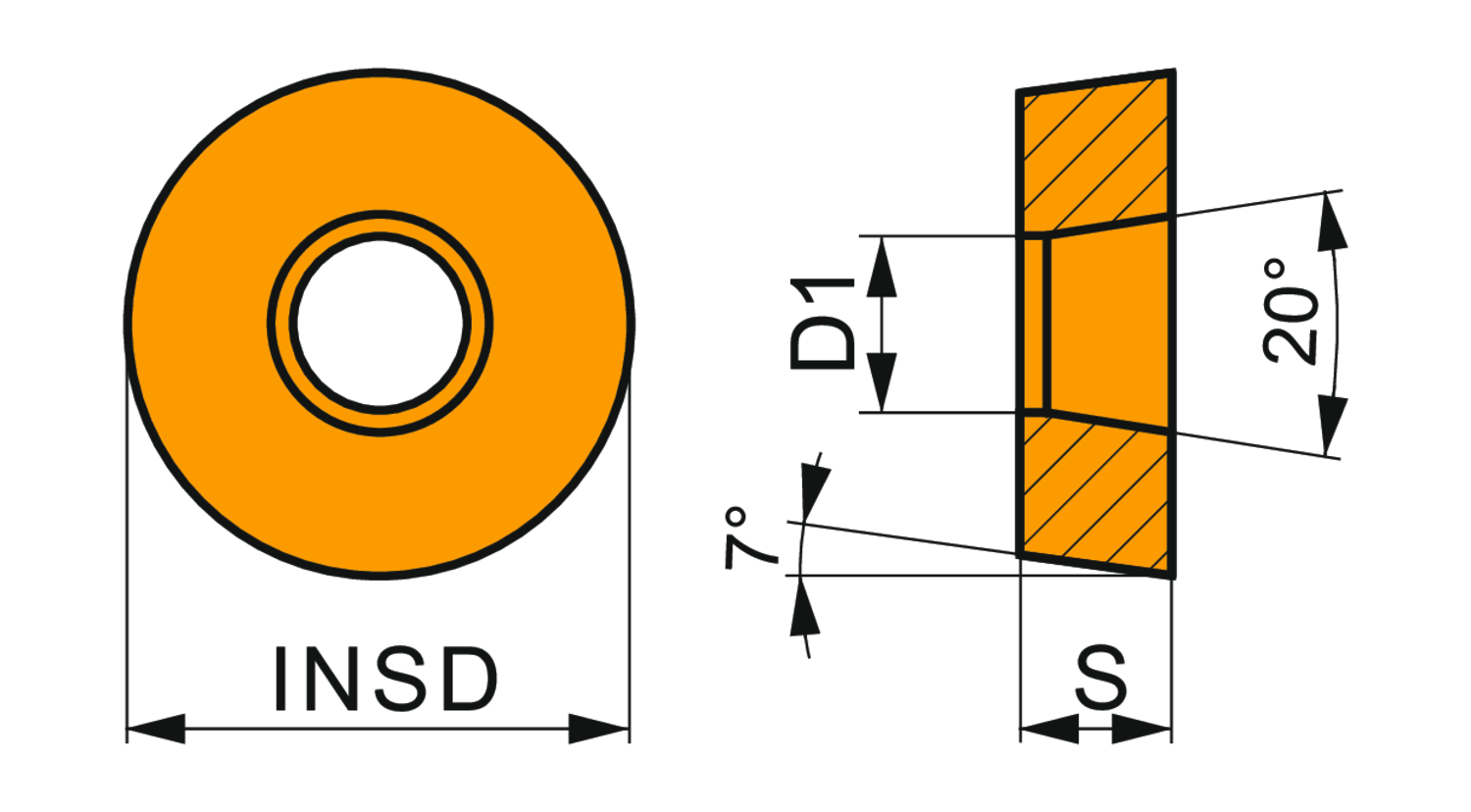

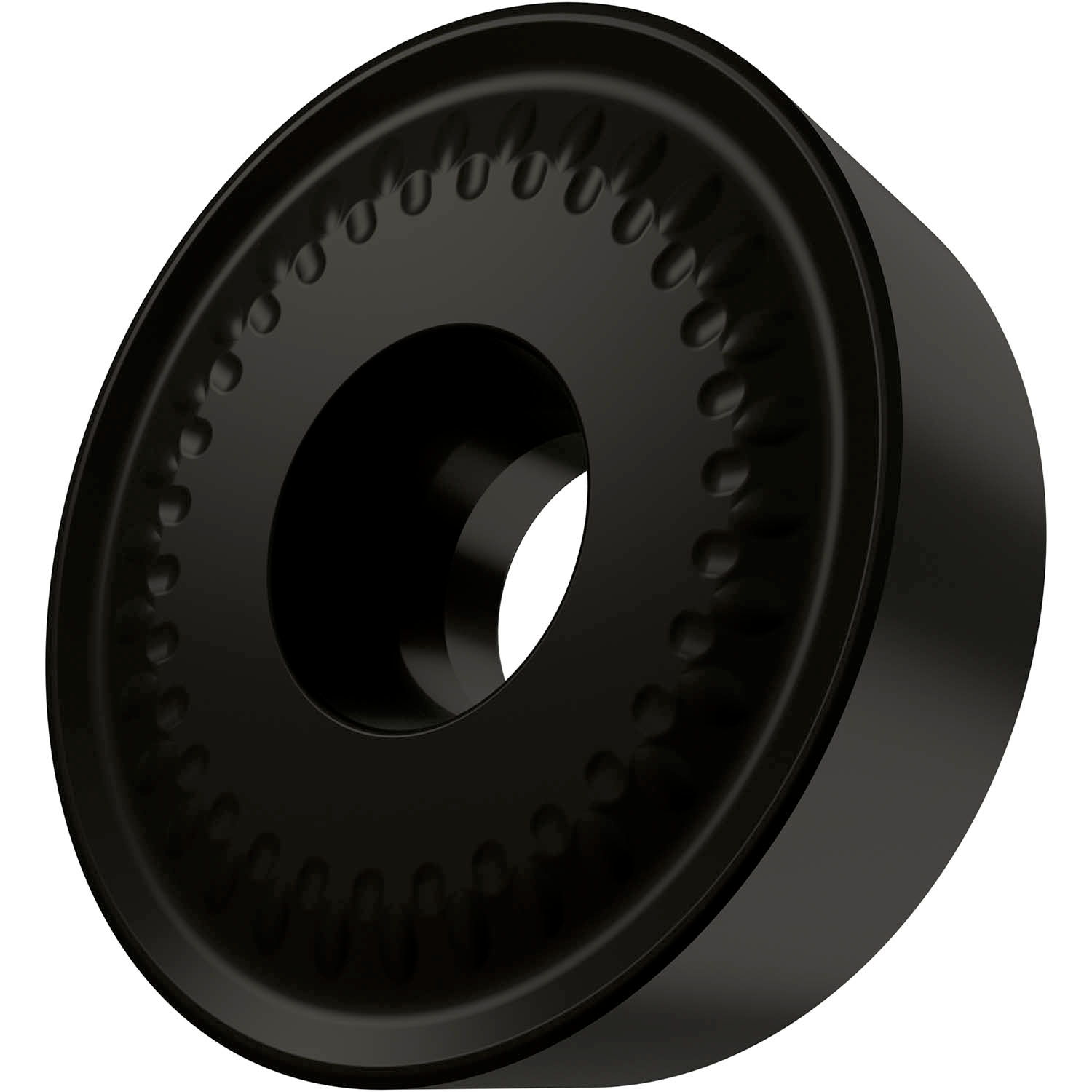

Special design positive turning insert, round with 7° clearance, a diameter of 32mm, 9.52mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RR2, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to medium machining of steels
- Product Name ISO: RCMX 3209MO-RR2:T9315
- Ordering Code ANSI: RCMX 3209MO-RR2:T9315
- EDP Number: 6755605
- Coating: T9315
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 8 |
| Fixing Hole Diameter (Mm.) | 9.5 |
| Insert Dia. (Mm.) | 32 |
| Insert Thickness (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | T9315 |
There are no reviews yet
