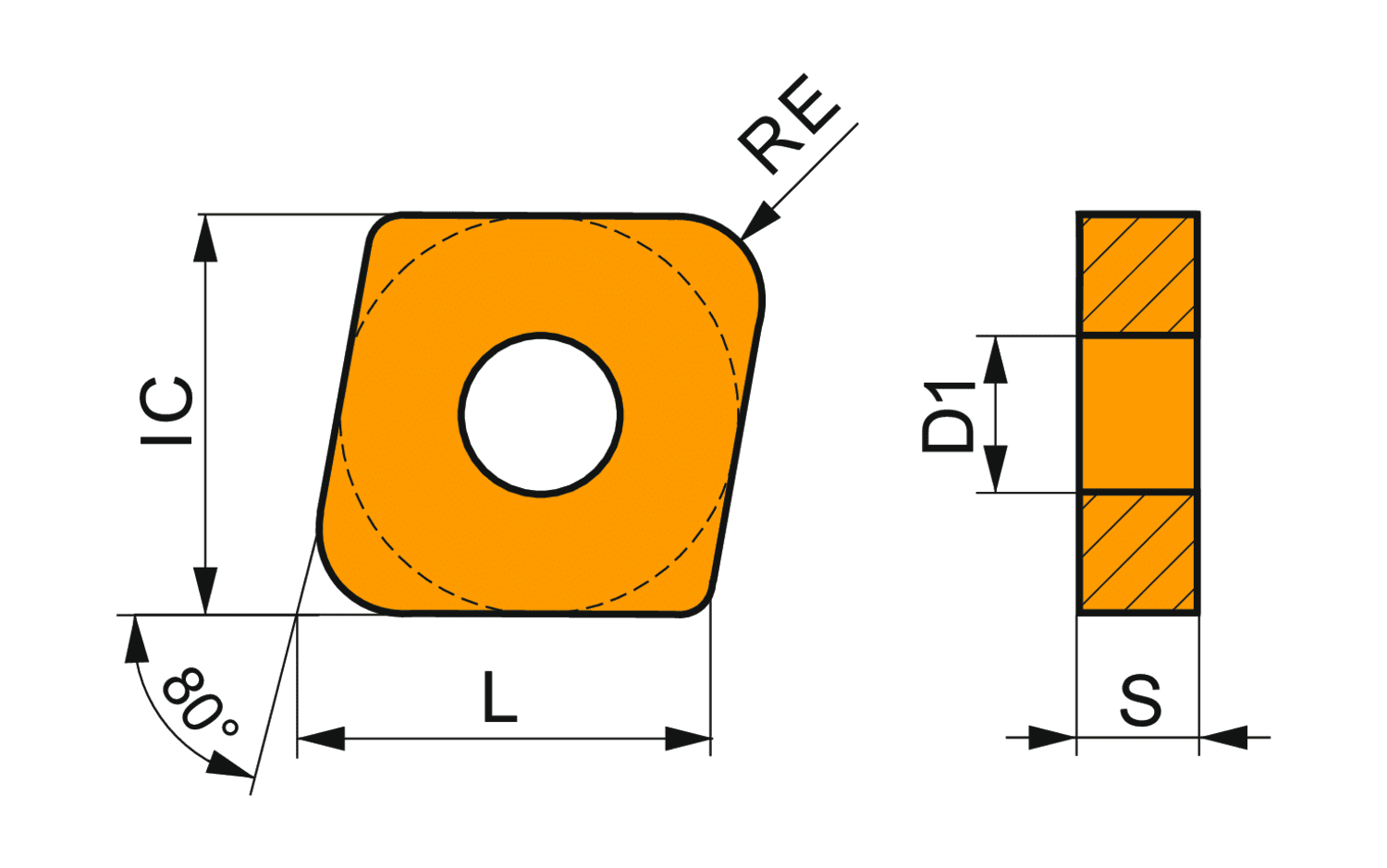

Special design negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 0.433" thick, 5/32" nose radius, indexing accuracy according to ISO-tolerance class- M, , chip-breaker TF with rounded cutting edges with facet, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for heavy to medium machining of steels
- Product Name ISO: CNMX 191140SN-TF:T9315
- Ordering Code ANSI: CNMX 6-10SN-TF:T9315
- EDP Number: 6798527
- Coating: T9315
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Corner Radius (Mm.) | 4 |
| Fixing Hole Diameter (Mm.) | 7.75 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 11 |
| Max Depth of Cut (In.) | 0.276 |
| Coating | T9315 |
