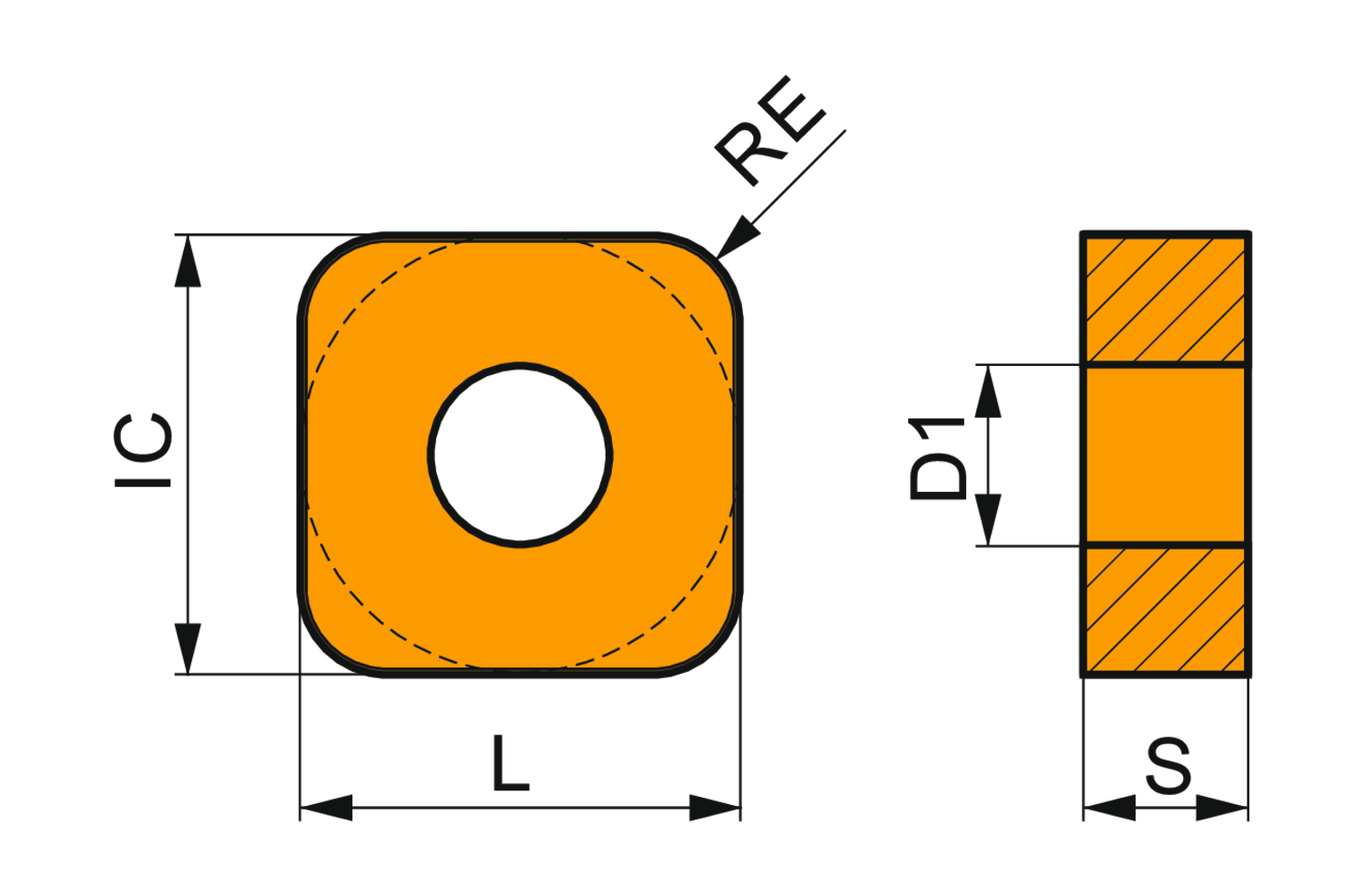

Special design negative turning insert, square with inscribed circle diameter of 19.05mm, 11mm thick, 4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker TF with rounded cutting edges with facet, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to medium machining of steels

• Product Name ISO: SNMX 191140SN-TF:T9415
• Ordering Code ANSI: SNMX 191140SN-TF:T9415
• EDP Number: 8366642
• Coating: T9415
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
