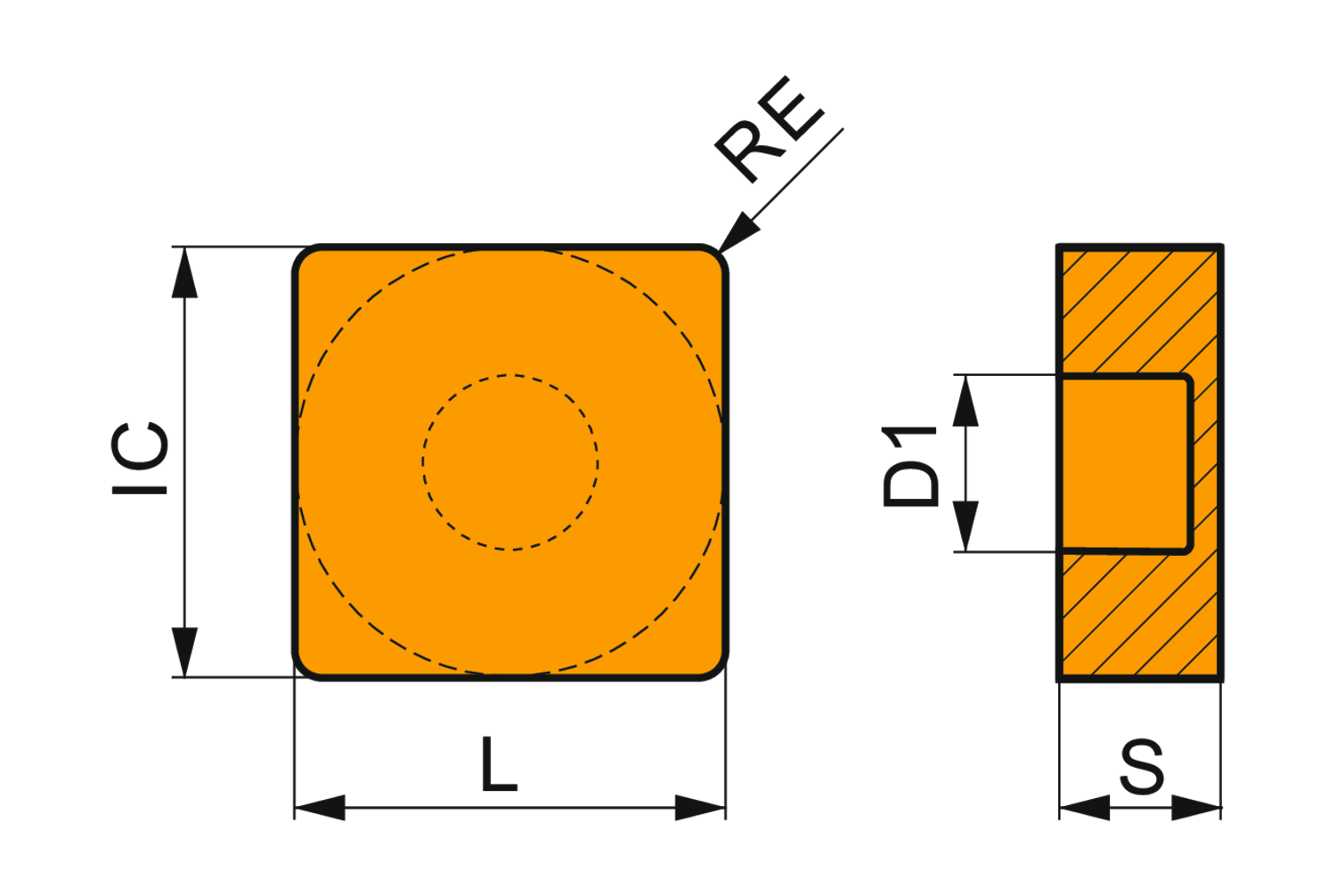

Special design negative turning insert, square with inscribed circle diameter of 25.4mm, 12mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SR with rounded cutting edges with facet, in grade 6630, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for heavy to extra heavy machining of steels and stainless-steels
- Product Name ISO: SNMX 251224S-SR:6630
- Ordering Code ANSI: SNMX 251224S-SR:6630
- EDP Number: 6751659
- Coating: 6630
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 16 |
| Corner Radius (Mm.) | 2.4 |
| Fixing Hole Diameter (Mm.) | 9.17 |
| Inscribing Circle Dia. (Mm.) | 25.4 |
| Insert Thickness (Mm.) | 12 |
| Max Depth of Cut (In.) | 0.63 |
| Insert Geometry | Negative |
| Coating | 6630 |
