Single-sided negative barpeeling insert, round with a diameter of 38.1mm, 12.7mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MR, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for steels and stainless-steels
- Product Name ISO: RNGH 381200-MR:T9226
- Ordering Code ANSI: RNGH 381200-MR:T9226
- EDP Number: 6931830
- Coating: T9226
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

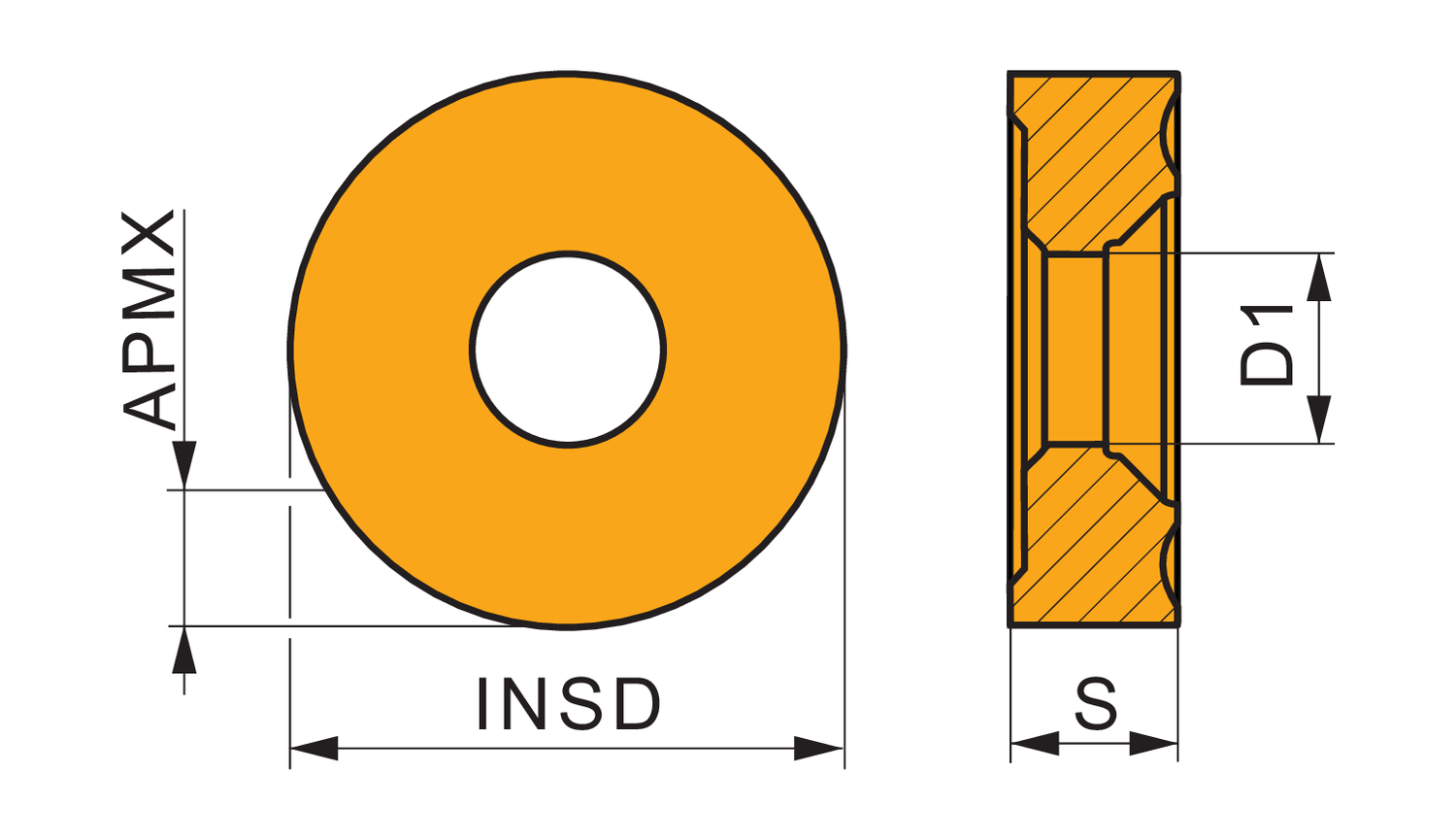

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Fixing Hole Diameter (Mm.) | 12.7 |
| Insert Dia. (Mm.) | 38.1 |
| Insert Thickness (Mm.) | 12.7 |
| Max Depth of Cut (In.) | 0.315 |
| Coating | T9226 |
