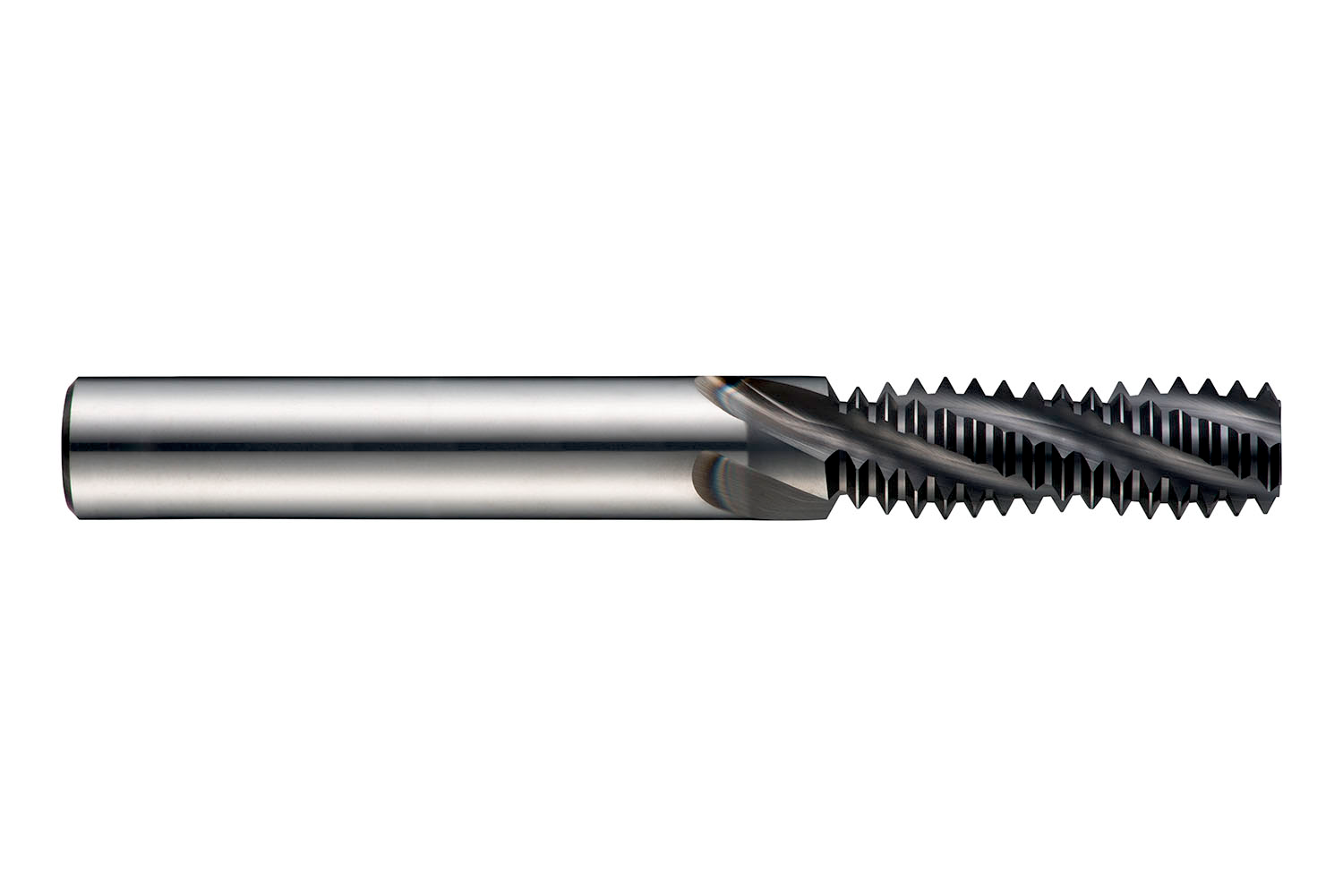

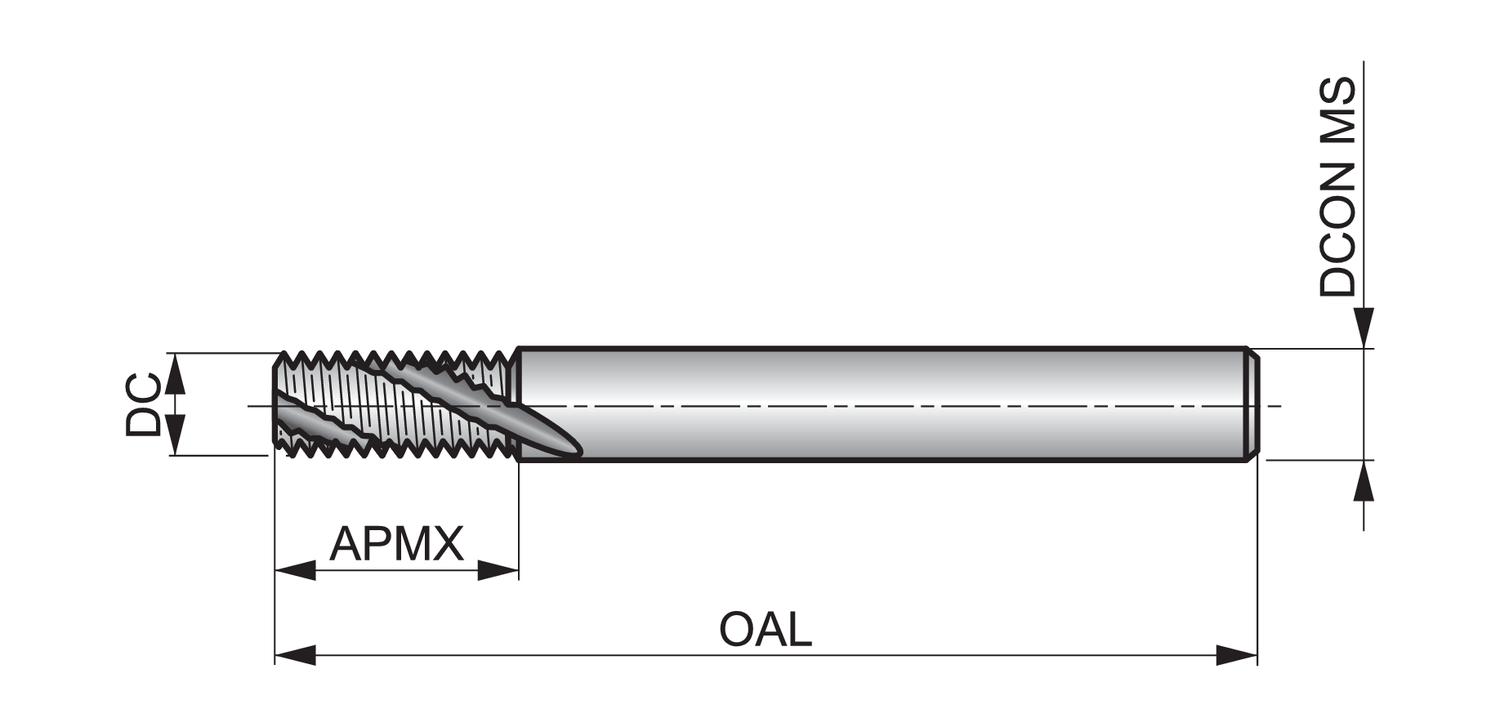

Thread milling cutter, for ISO-Metric thread = M12 with 1.75 mm pitch, dimensions according to DORMER standard with 3 flutes, 9.5mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 26.25mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

• Product Name ISO: J2109.5X1.75
• Ordering Code ANSI: J2109.5X1.75
• EDP Number: 46821305
• Coating: Alcrona Pro
• Material Code (BMC): HM
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
