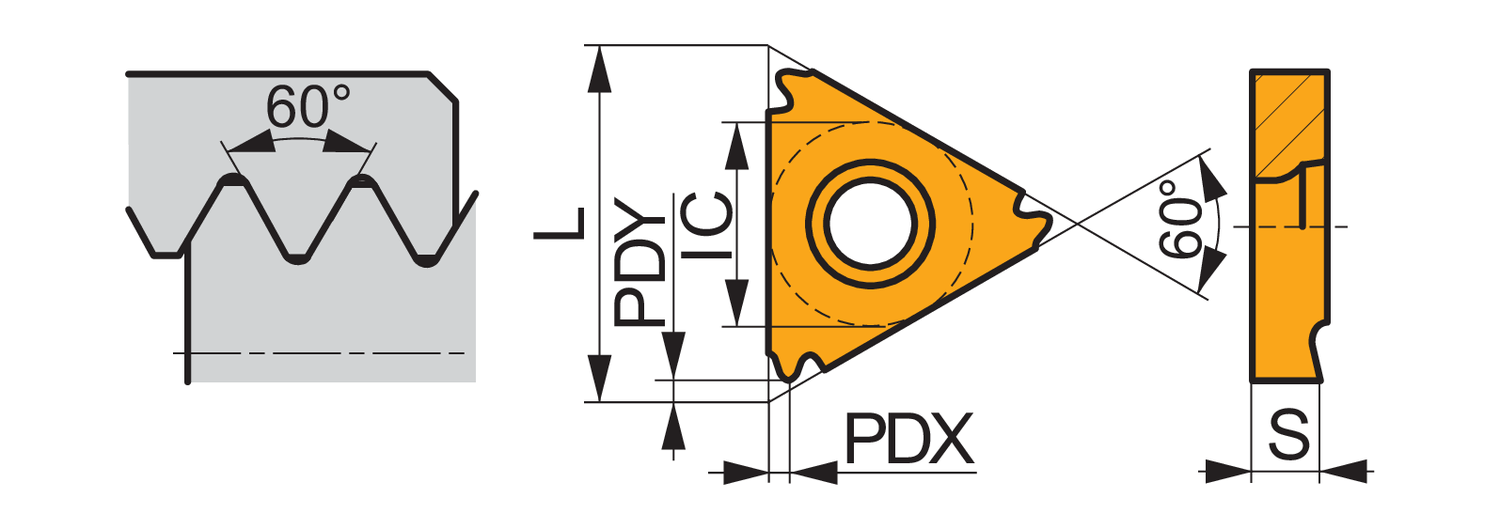

The 16IR AG60 BP01-F internal threading insert is designed for accurate and consistent internal ISO and unified thread machining. Featuring a 60° partial profile, this insert provides flexibility across multiple thread pitches while maintaining precise thread form and excellent surface finish.

Built on a tough carbide substrate and enhanced with a wear-resistant coating, the BP01-F grade delivers dependable tool life and stable cutting performance in a wide range of materials. The AG60 chip-former is optimized for internal applications, promoting smooth cutting action and effective chip control in confined bores.

This insert is ideal for CNC lathes and turning centers where precision internal threading and reliability are critical.

Key Features

• 60° ISO partial profile for internal threading
• 16IR size for standard internal threading toolholders
• AG60 geometry for smooth cutting and reliable chip evacuation
• BP01-F grade balances edge strength and wear resistance
• Supports multiple thread pitches with one insert
• Produces consistent thread quality and clean finishes

Applications

• Internal threading operations
• CNC lathes and turning centers
• Steel, stainless steel, and alloy materials
