Toroidal copy milling insert with a diameter of .315" and .0236" corner radii for a maximum depth of cut of .0236", KP geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10/K01-K10 and H05-H15 for machining of steel, cast-iron and hardened material with copy end mills K2-SRC
- Product Name ISO: LC 0806-KP:M8310
- Ordering Code ANSI: LC 0806-KP:M8310
- EDP Number: 6922531
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

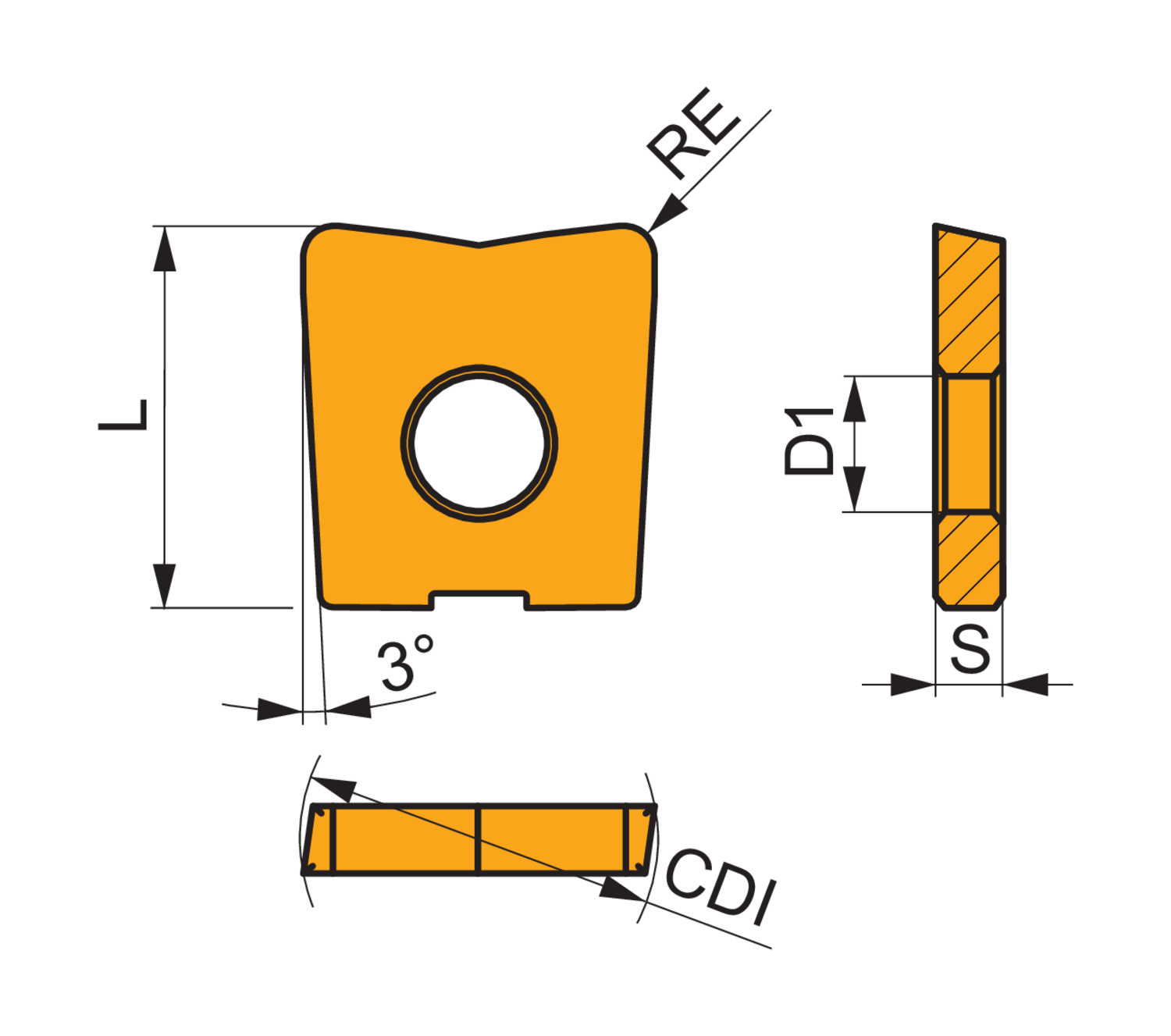

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 0.6 |
| Corner Radius (Mm.) | 0.6 |
| Fixing Hole Diameter (Mm.) | 3 |
| Insert Thickness (Mm.) | 2 |
| Max Depth of Cut (In.) | 0.024 |
| Coating | M8310 |
