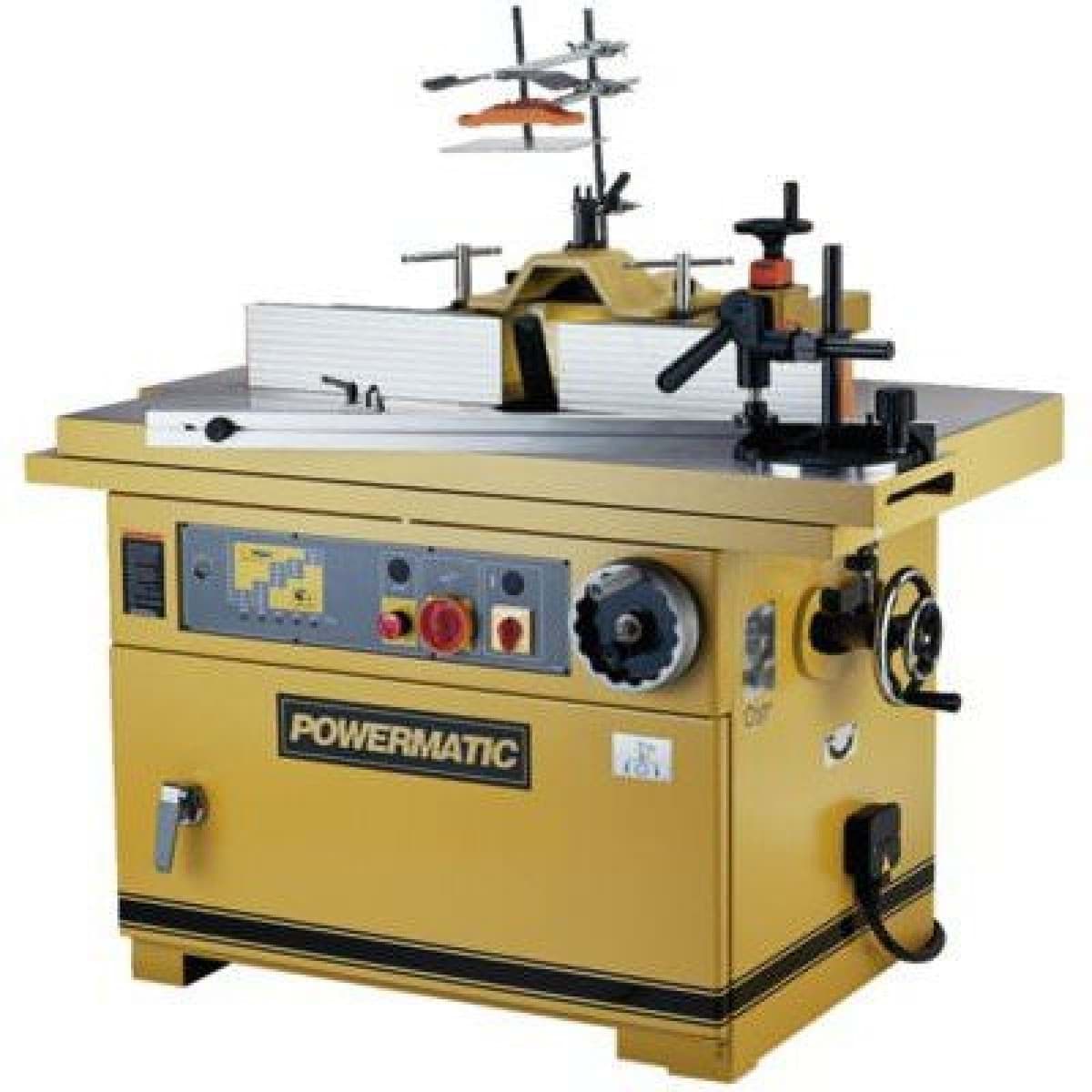

TS29 Shaper, 7.5HP 3PH 230/460V
- Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons
- Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
- Large table with built-in slider with room for stock feeder
- 7" vertical spindle travel allows stacked tooling
- Spindle tilts negative 5° to positive 45° for increased versatility
- Large diameter multiple table inserts accommodate virtually any size cutter
- Five spindle speeds in forward and reverse with lighted indicator
| Electrical Controls | 24 volt |
| Table Inserts (In.) | 2-1/5, 5-1/2, Oval (Tilting) |
| Reversible | Yes |
| Spindle Size Under Nut (In.) | 3/4 (3-1/2), 1 (6), 1-1/4 (6-1/2) |
| Recommended Circuit Size (Amps.) | 30/15 |
| Table Travel (In.) | 49-1/4 |
| Maximum Diameter Cutter Above Table (In.) | 12 |
| Maximum Diameter Cutter Below Table (In.) | 9 |
| Motor Phase | 3 |
| Router Bit Collet Included | 1/4, 1/2 |
| Dust Collection Minimim CFM Required (CFM) | 800 |
| Fence Travel (Major and Minor)(In.) | 5-3/8, 3-5/8 |
| Spindle Speed (RPM) | 3,000, 4,000, 6,000, 8,000, 10,000 |
| Motor Voltage (V.) | 230/460 |
| Table Size (In.) | 51-1/2 x 33-1/2 |
| Fence Size (LxH)(In.) | 46 x 5 |
| Dust Port Outside Diameter (In.) | 5 (x2) |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Style (Type) | Shaper |
| Spindle Tilt (Deg.) | 45 Forward, 5 Back |
| Spindle Travel (In.) | 7 |
| Prewired Voltage (V.) | 230 |
| Spindle Included | 3/4, 1, 1-1/4 |
| Sliding Table Size (In.) | 11-1/4 x 51-1/4 |
| Motor Power (HP) | 7-1/2 |
There are no reviews yet
| Manufacturer warranty | ||
| 5 Year | ||
| Warranty details | ||
|
|
||
