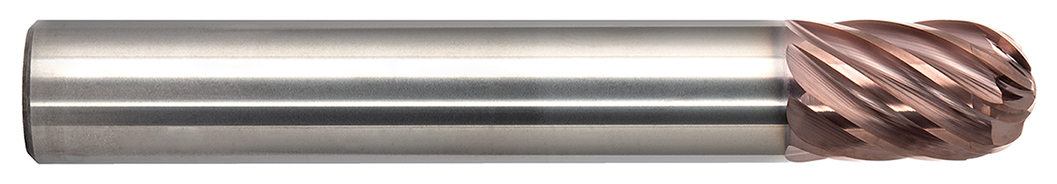

M.A. Ford Series MFPB TuffCut 3D Multi-Flute Parallel Ball Nose End Mill - 5/16x7/16x4x5/16Shk ALtima Xtreme
| Quick Ship Items | No, but I will Ship Soon |
| Ball Radius Decimal | 0.1562 |
| Ball Radius R | 5/32" |
| Center Cutting | Yes |
| Coating | ALtima Xtreme |
| Diameter Decimal (In.) | 0.3125 |
| Diameter (D/D1) | 5/16" |
| End Grind | Ball |
| Number of Flutes RH | 8 |
| Shank Type | Straight |
| Tool Construction | Solid |
| Shank Diameter Decimal (In.) | 0.3125 |
| Shank Diameter | 5/16" |
| Overall Length Decimal (In.) | 4 |
| Overall Length L1 | 4" |
| Flute Length | 7/16" |
| Flute Length Decimal (In.) | 0.4375 |
| Helix Angle (Deg.) | 35 |
| Material | Carbide |
