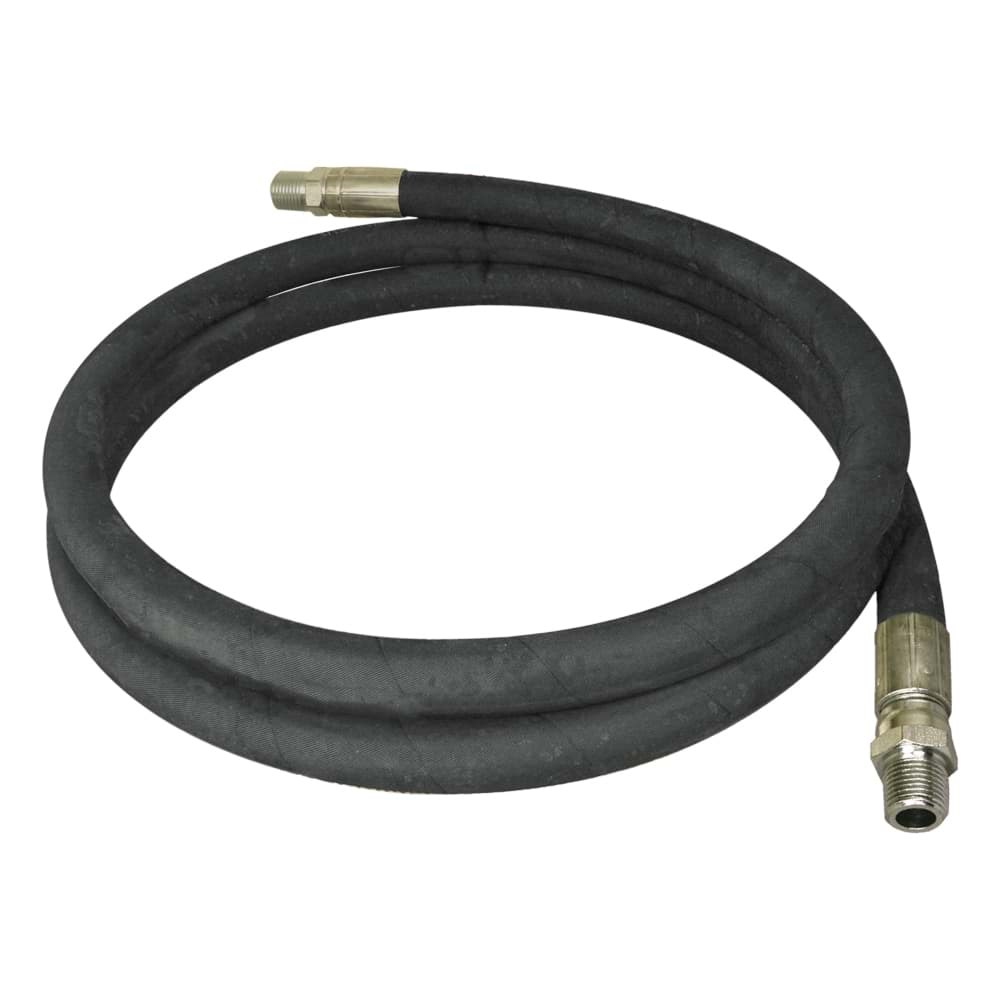

Assemblies meet SAE 100R2AT standards. They are coiled and sleeved for easy storage, and are labeled with size and specification for easy identification.
- Meets SAE 100R2AT standards
- Comes precoupled with solid male pipe threads on each end
- Maximum working pressure of 5000 PSI
- Labeled with size and specification for easy identification
- Reinforced with 2 high tensile steel wire braids
| Inside Diameter (In.) | 1/4 |
| Inside Diameter (Mm.) | 6.35 |
| Outside Diameter (In.) | 0.594 |
| Outside Diameter (Mm.) | 15.0876 |
| Maximum PSI | 5000 |
| Minimum Bend Radius (In.) | 3.94 |
| Fittings | Male Pipe Thread x Male Pipe Thread |
| Temperature Range | -40°F to 212°F |
| Cover Material | SBR/CR/BR |
| Tube Material | NBR |
| Reinforcement | 2 Steel Braids |
| Weight (Lbs.) | 1.72 |
