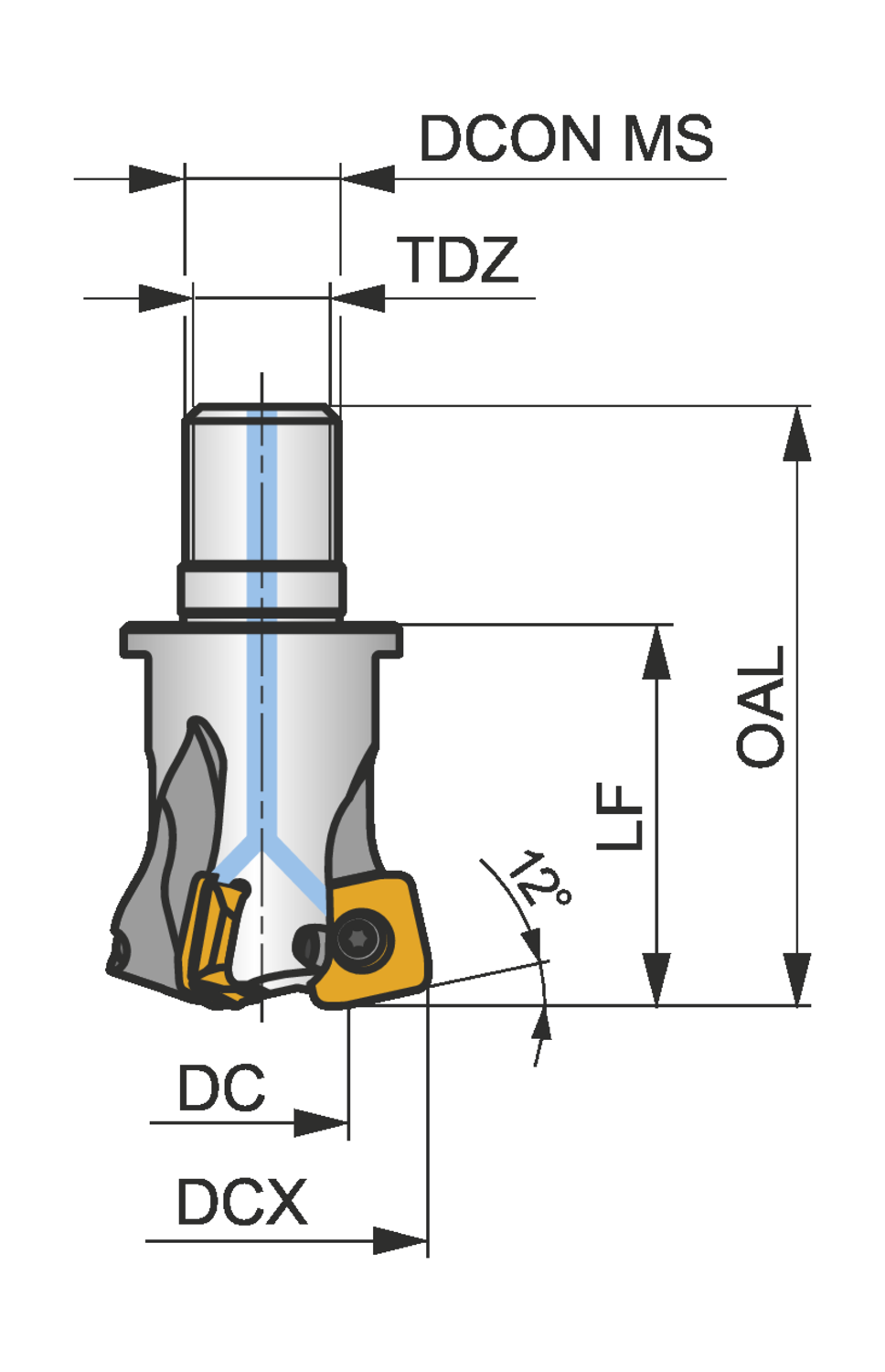

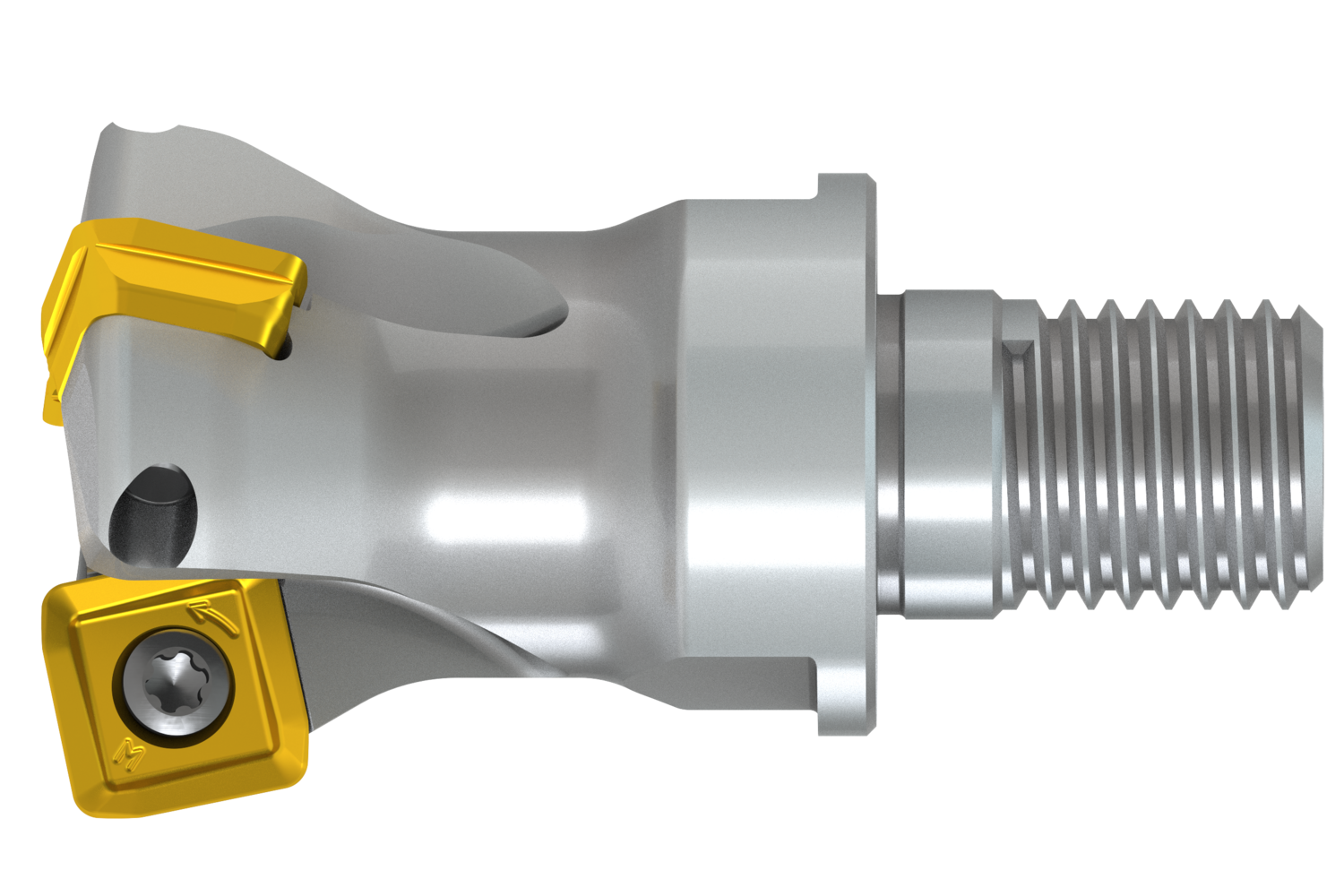

Highly versatile 12° high feed mill utilising single sided SO.. 12 style inserts with APMX of 1,9 mm Cutting diameter 0.803 inch with 12° approach angle and M16 threaded shank for standard modular tool-holders, 1.693 inch functional length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling.

• Product Name ISO: 150E3R170M16-ISSO12-C
• Ordering Code ANSI: 150E3R170M16-ISSO12-C
• EDP Number: 8551878
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
