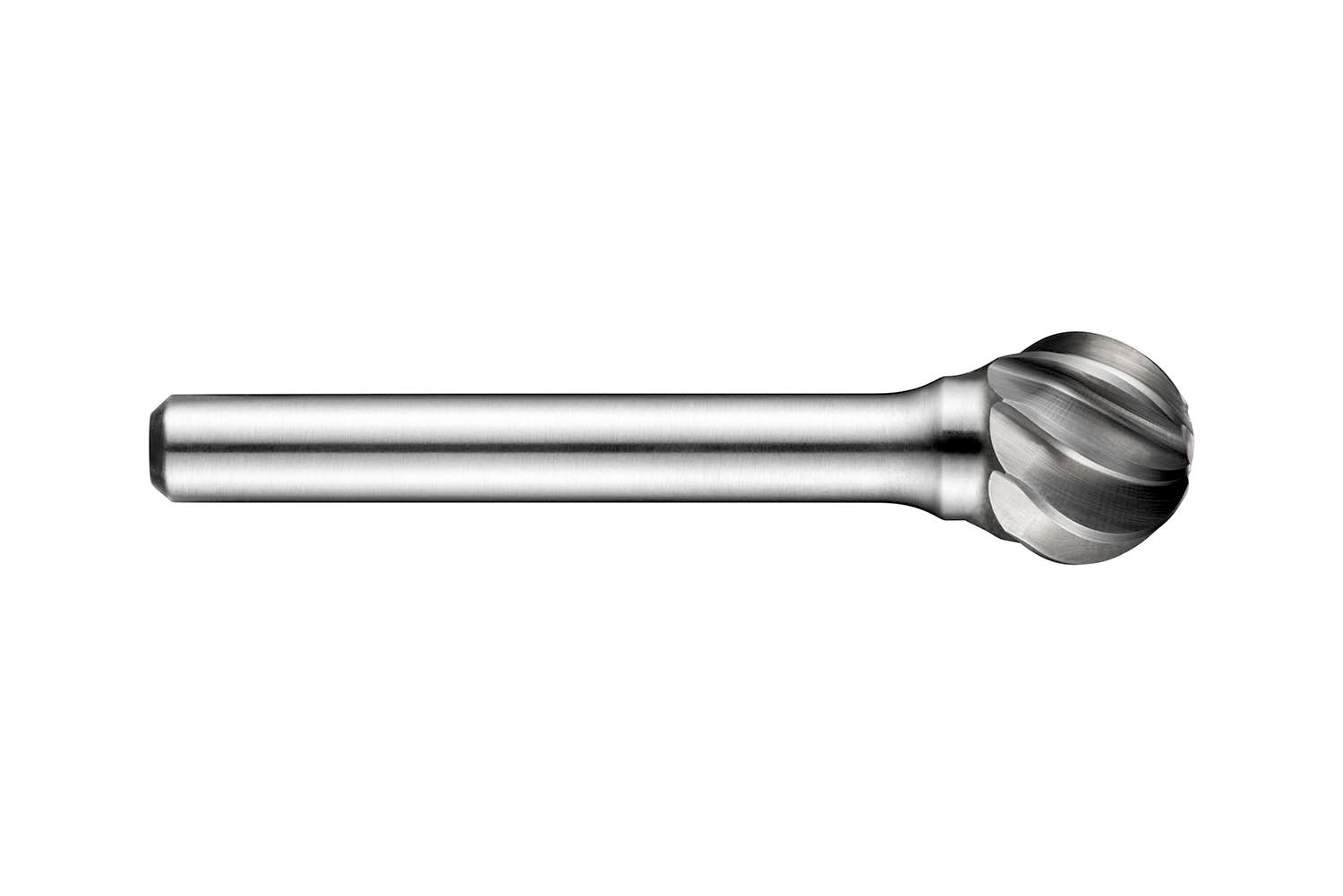

Ball burr (D shape), diameter 9.6mm with 8mm length of cut, 54mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, AL single cut flute style with wide spaced edged for intricate carving, metal engraving and welding preparation in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: P8379.6X6.0
- Ordering Code ANSI: P8379.6X6.0
- EDP Number: 46814212
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

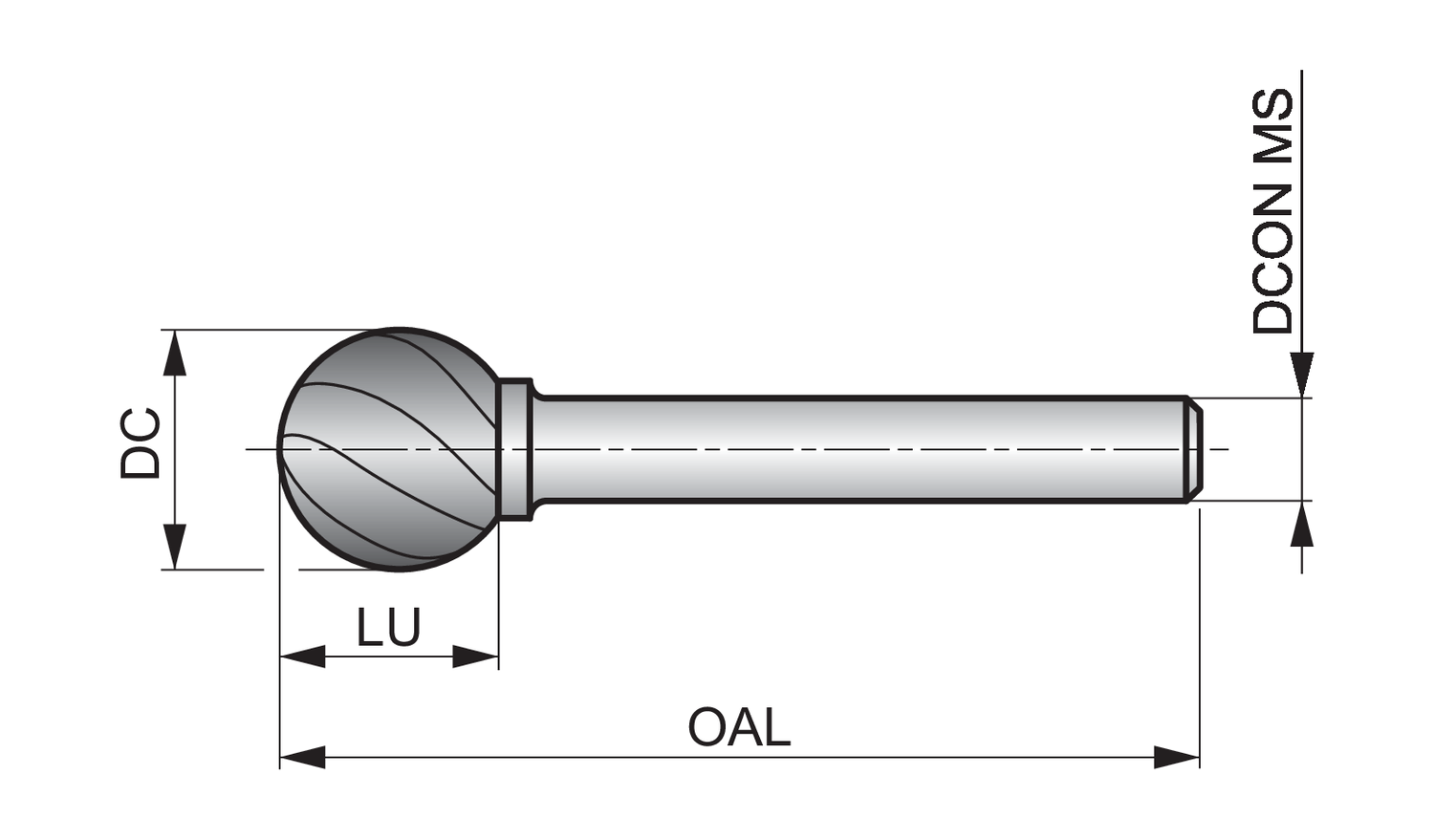

| Cutting Diameter (Mm.) | 9.6 |
| Cutting Diameter (In.) | 0.378 |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 54 |
| Usable Length (Mm.) | 8 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 2.126 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | D - Ball Shape |
| Burr Type | Aluminium Cut Geometry |
