Ball nose segment copy milling insert for a diameter of .9843" for a maximum depth of cut of .4921", FM geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with copy end mills K3-CXP
- Product Name ISO: XP 25ER-FM:M8310
- Ordering Code ANSI: XP 25ER-FM:M8310
- EDP Number: 6756234
- Coating: M8310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12.5 |

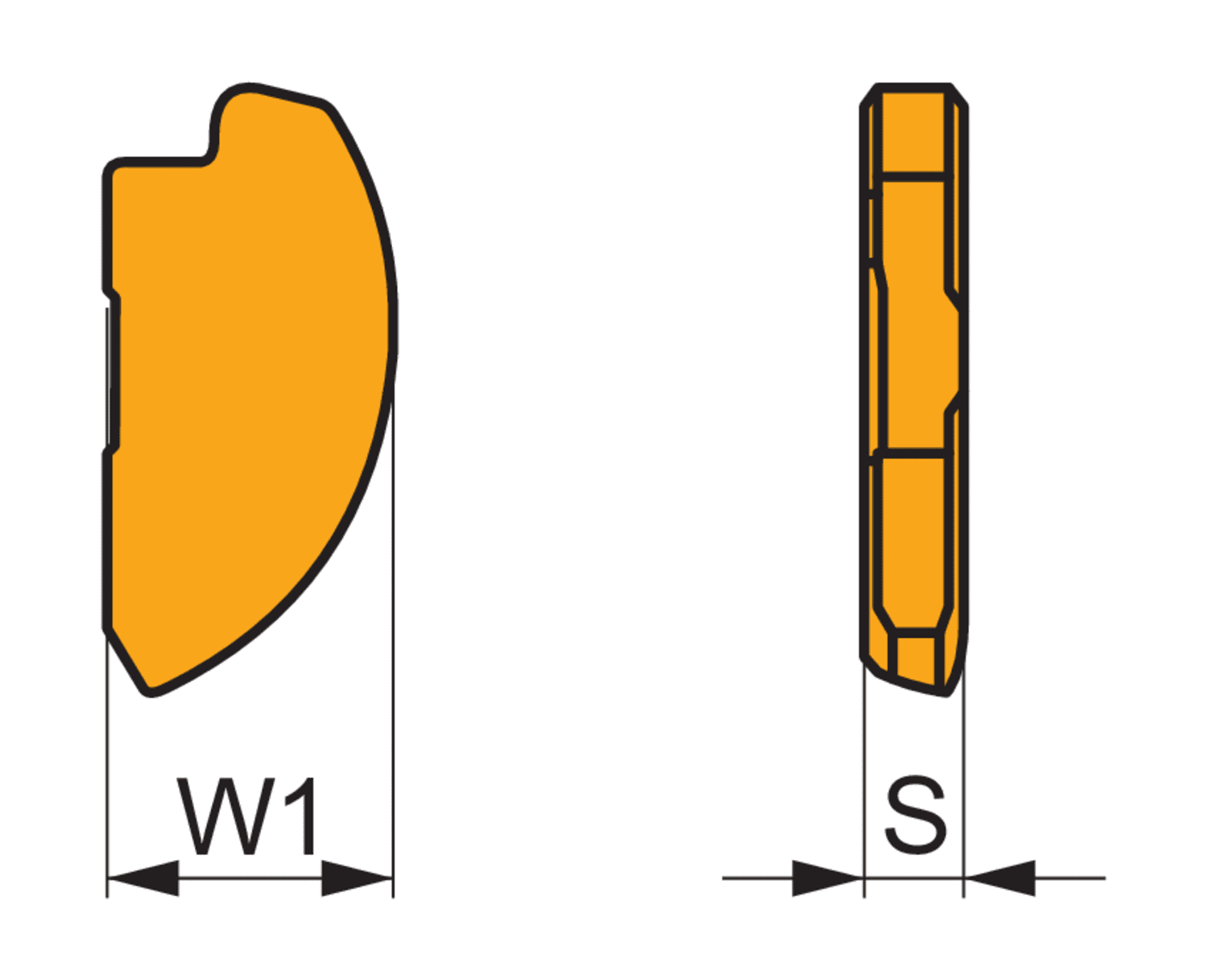

| Insert Thickness (Mm.) | 3.17 |
| Insert Width (Mm.) | 25 |
| Max Depth of Cut (In.) | 0.492 |
| Coating | M8310 |
