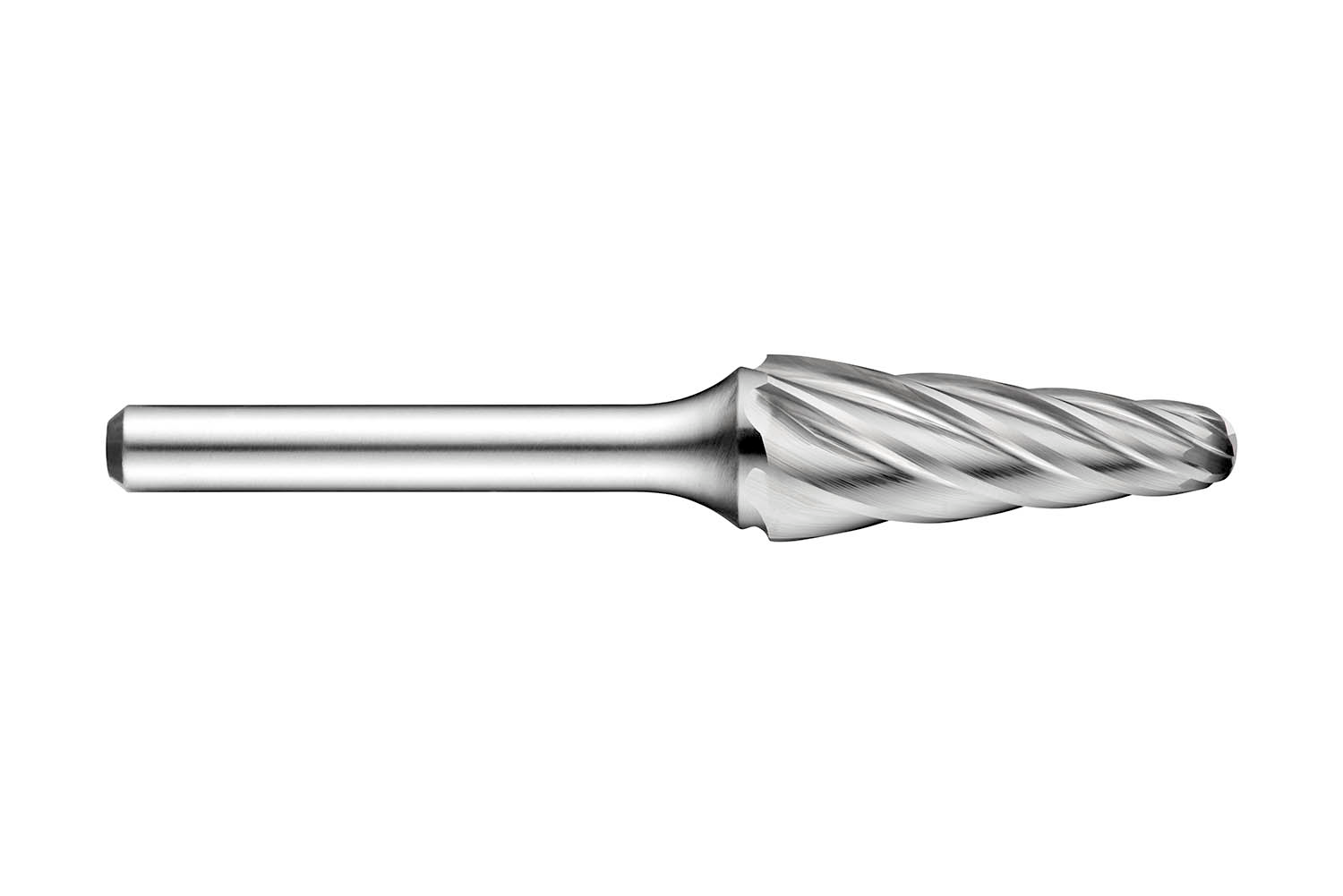

Ball-nosed cone burr (L shape), diameter 6mm with 18mm length of cut, 50mm overall length and 6mm shank, solid carbide with bright finish, AL single cut flute style with wide spaced edged for enlarging holes, rounding edges and surface-finishing in tight narow angles or other hard-to-reach areas in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: P8426.0X6.0
- Ordering Code ANSI: P8426.0X6.0
- EDP Number: 46814217
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 6 |
| Cutting Diameter (In.) | 0.2362 |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 50 |
| Usable Length (Mm.) | 18 |
| Profile Angle | 14 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 1.9685 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | L - Ball Nosed Cone Shape |
| Burr Type | Aluminium Cut Geometry |
