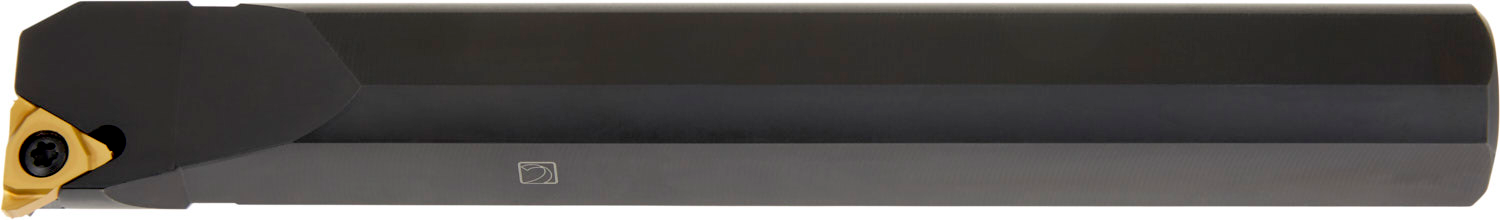

Screw clamp thread turning bar with 1.5° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 9.525mm (designation TN 16NR.. ), right hand standard design with straight shank made of steel without coolant hole, 25mm diameter and 180mm overall length for internal threading, circlip grooving, and o-ring grooving

• Product Name ISO: SIR 2325 Q 16
• Ordering Code ANSI: SIR 2325 Q 16
• EDP Number: 6756677
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
