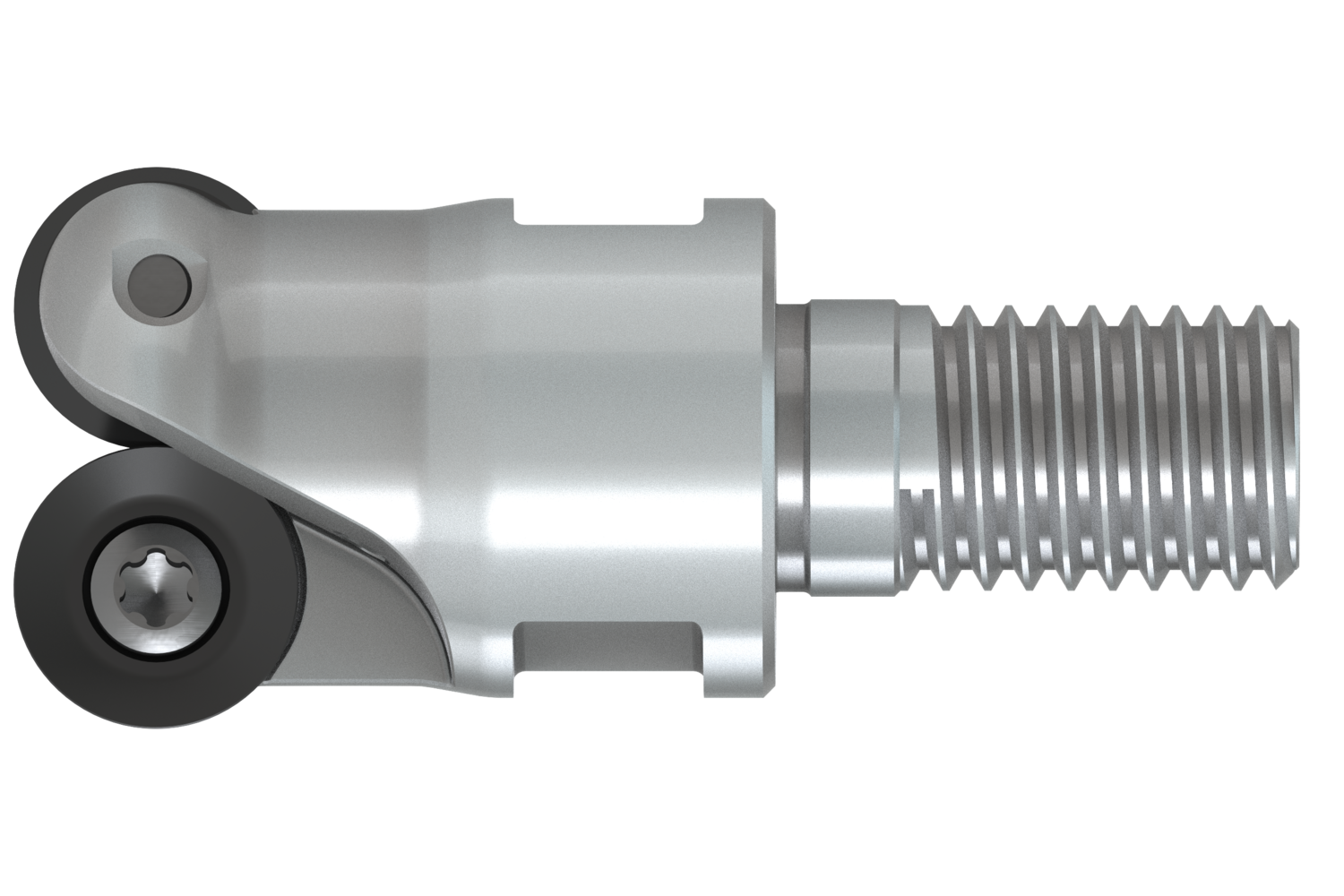

Copy face mill which utilises 2 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter with M12 threaded shank for standard modular tool-holders, for face milling, copy milling, ramping, progressive plunge milling and helical milling
- Product Name ISO: 100E2R130M12-ISRD12-CF
- Ordering Code ANSI: 100E2R130M12-ISRD12-CF
- EDP Number: 8057896

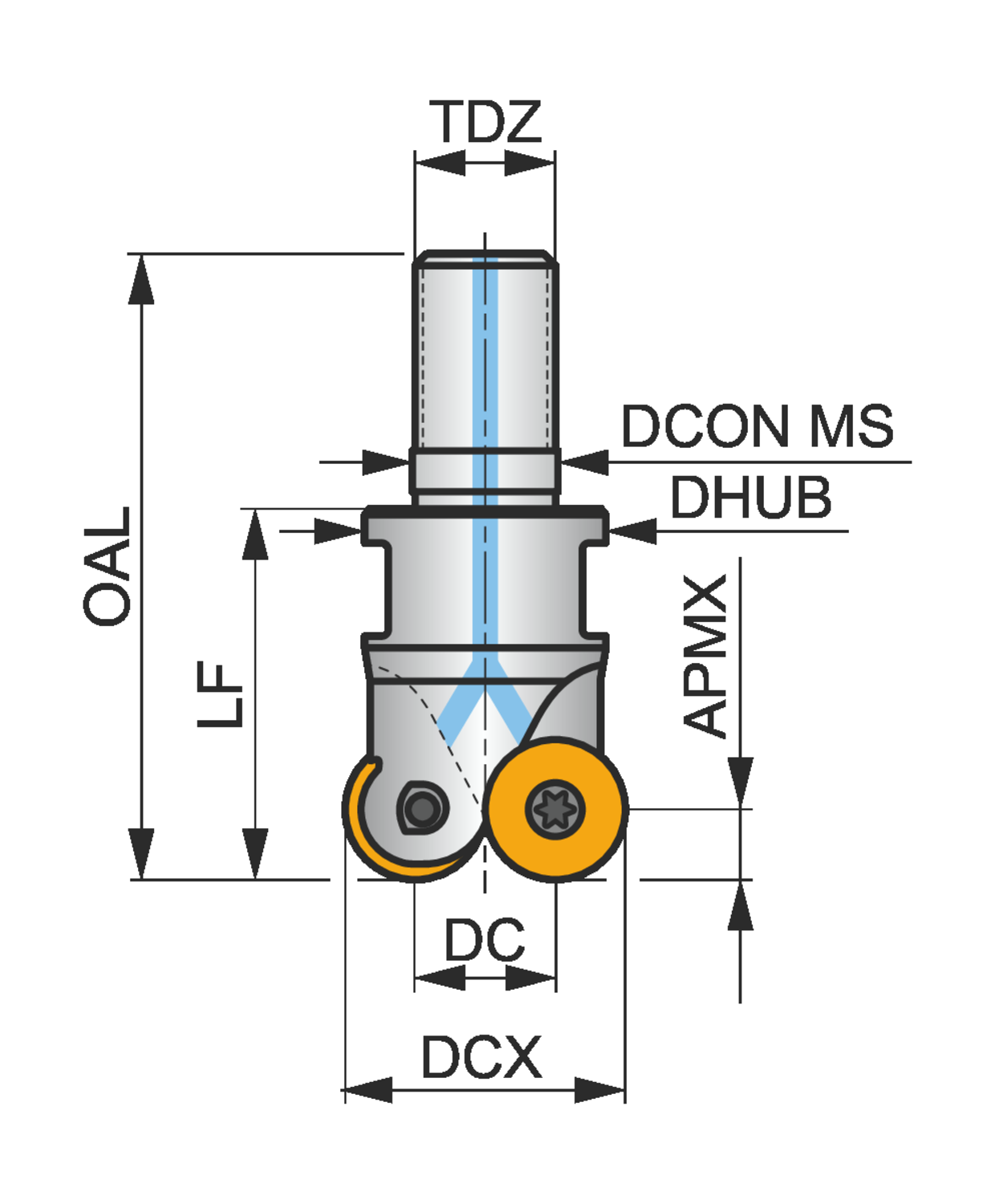

| Product Measurement Standard | Inch |
| Cutting Diameter (In.) | 0.528 |
| Connection Diameter (Mm.) | 12.5 |
| Overall Length (Mm.) | 55 |
| Max Depth of Cut (In.) | 0.118 |
| Connection Diameter (In.) | 0.492 |
| Overall Length (In.) | 2.165 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | System SC |
| Cooling | 1 |
| Thread Diameter Size | M12 |
