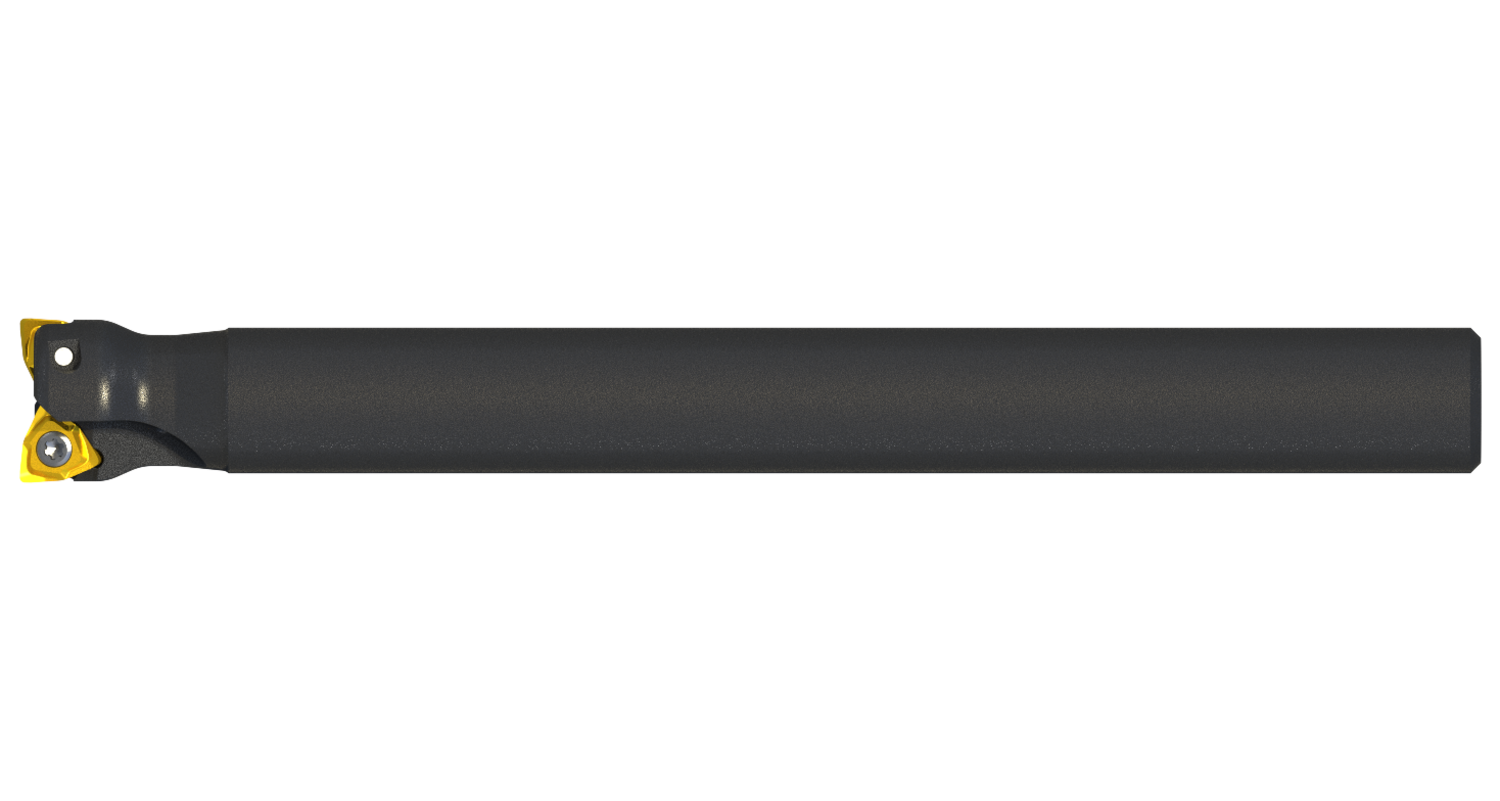

Copy face mill with double negative geometry which utilises 2 of WNHX0403.. double-sided inserts, cutting diameter 16mm with 90° approach angle and 14mm parallel shank according to DIN 1835A, 140mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, copy milling and ramping with a maximum depth of cut of 0,5 (2,0)mm
- Product Name ISO: 16A2R020A14-SWN04C-C
- Ordering Code ANSI: 16A2R020A14-SWN04C-C
- EDP Number: 8238749

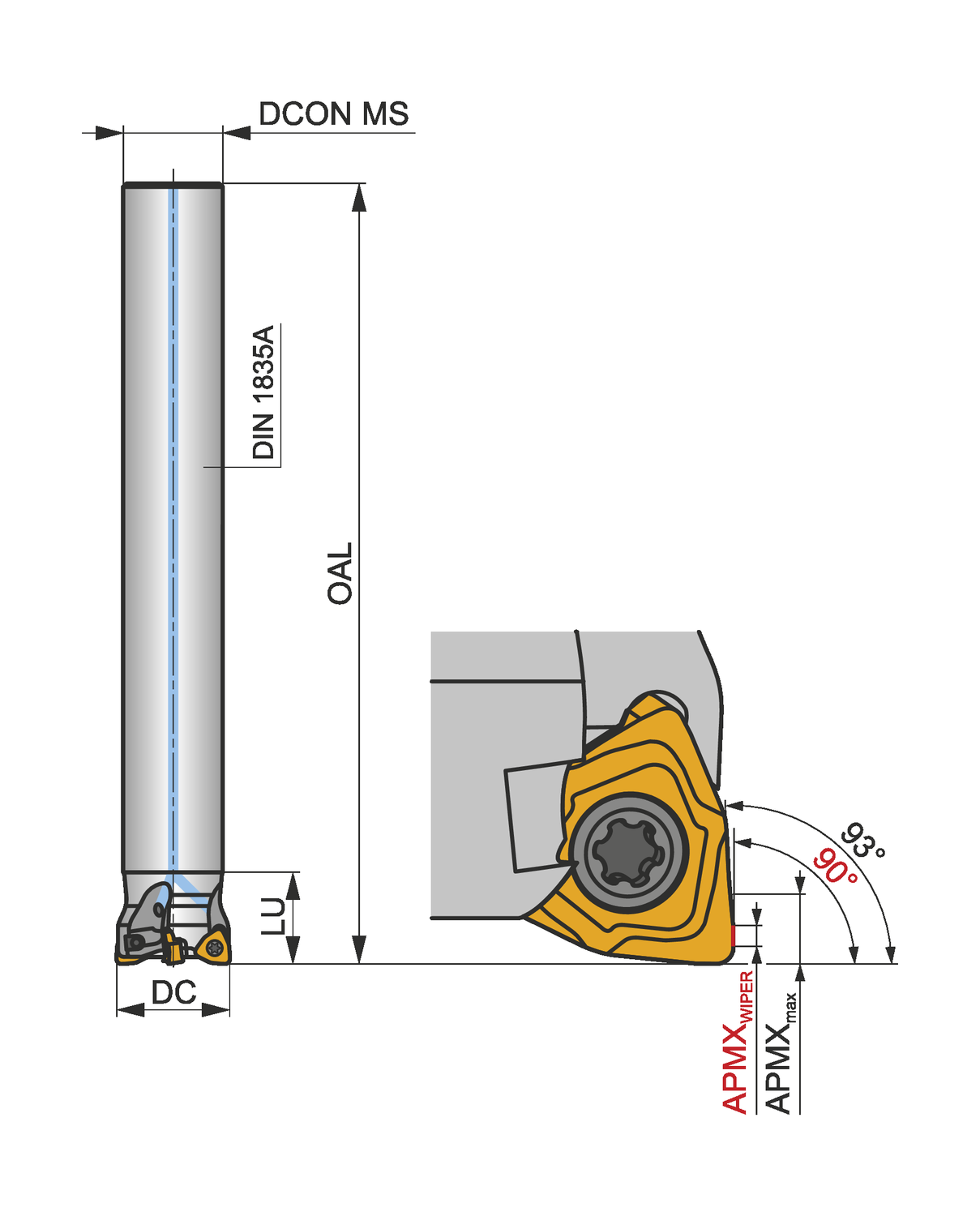

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 16 |
| Cutting Diameter (In.) | 0.63 |
| Connection Diameter (Mm.) | 14 |
| Overall Length (Mm.) | 140 |
| Usable Length (Mm.) | 20 |
| Connection Diameter (In.) | 0.551 |
| Overall Length (In.) | 5.512 |
| Shank | Cylindrical Shank DIN 1835A |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
