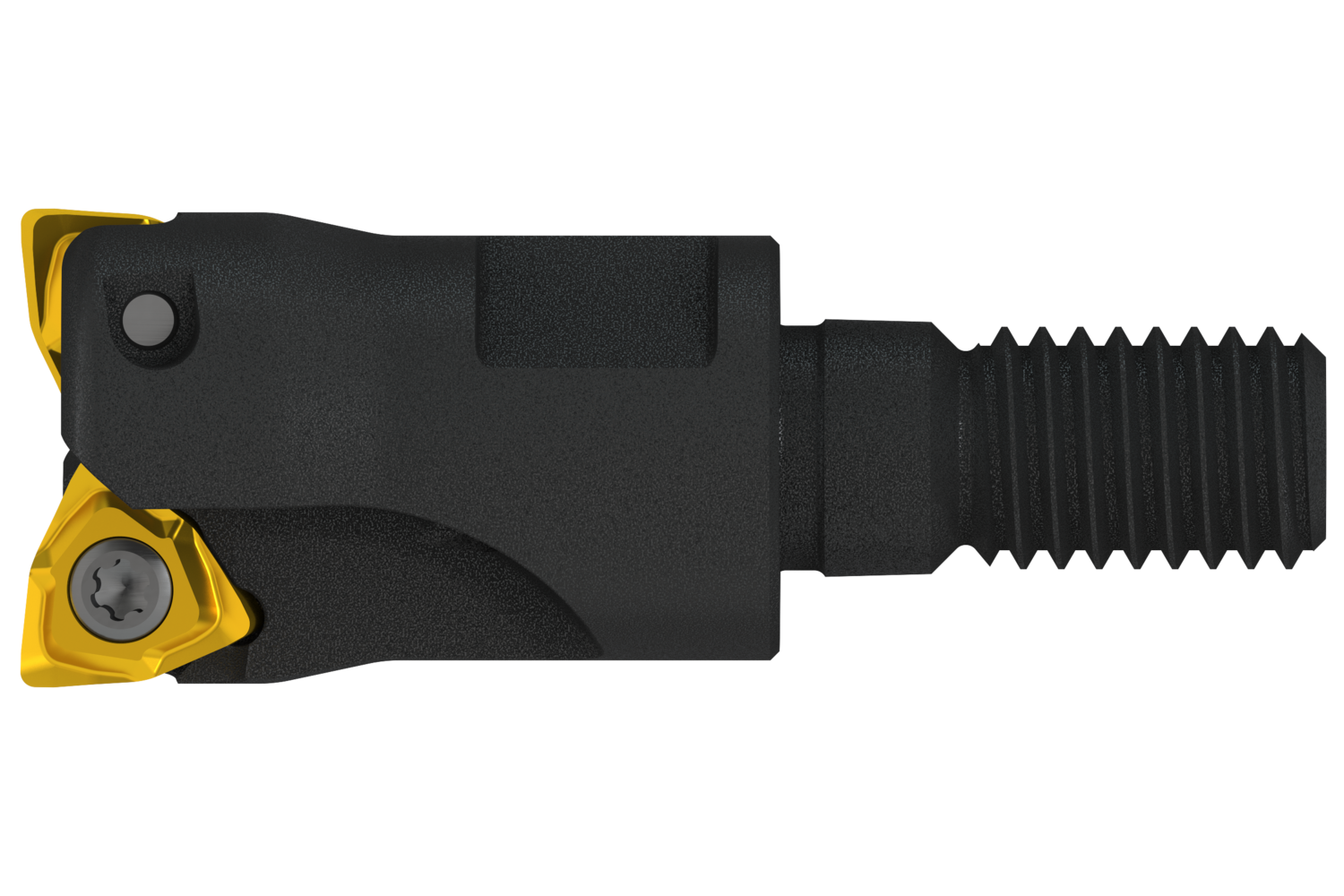

Copy face mill with double negative geometry which utilises 2 of WNHX0403.. double-sided inserts, cutting diameter 16mm with 90° approach angle and M08 threaded shank for standard modular tool-holders, 25mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, copy milling and ramping with a maximum depth of cut of 0,5 (2,0)mm
- Product Name ISO: 16A2R025M08-SWN04C-C
- Ordering Code ANSI: 16A2R025M08-SWN04C-C
- EDP Number: 8238780

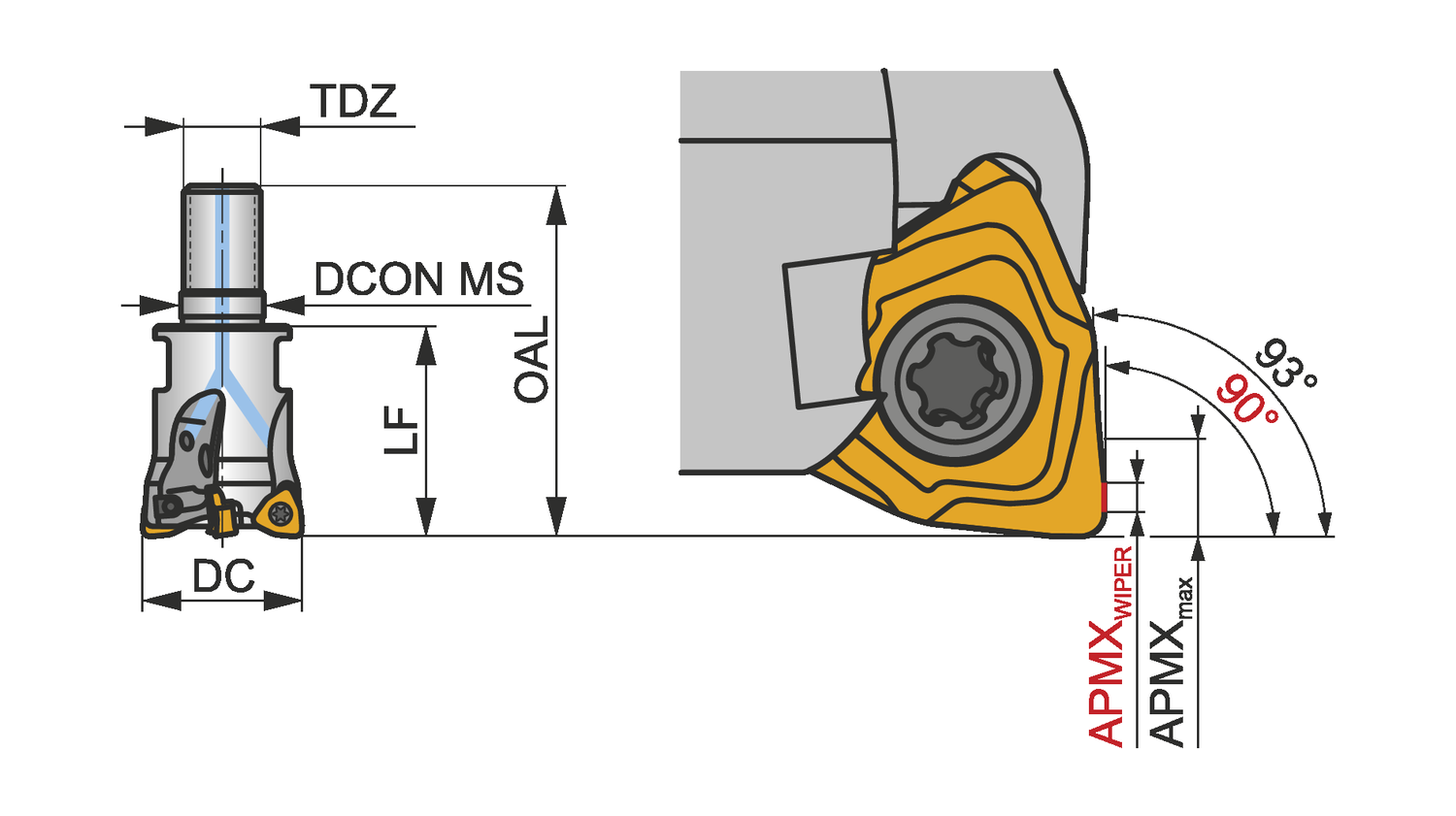

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 16 |
| Cutting Diameter (In.) | 0.63 |
| Connection Diameter (Mm.) | 8.5 |
| Overall Length (Mm.) | 43 |
| Connection Diameter (In.) | 0.335 |
| Overall Length (In.) | 1.693 |
| Shank | Threaded Coupling |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M08 |
