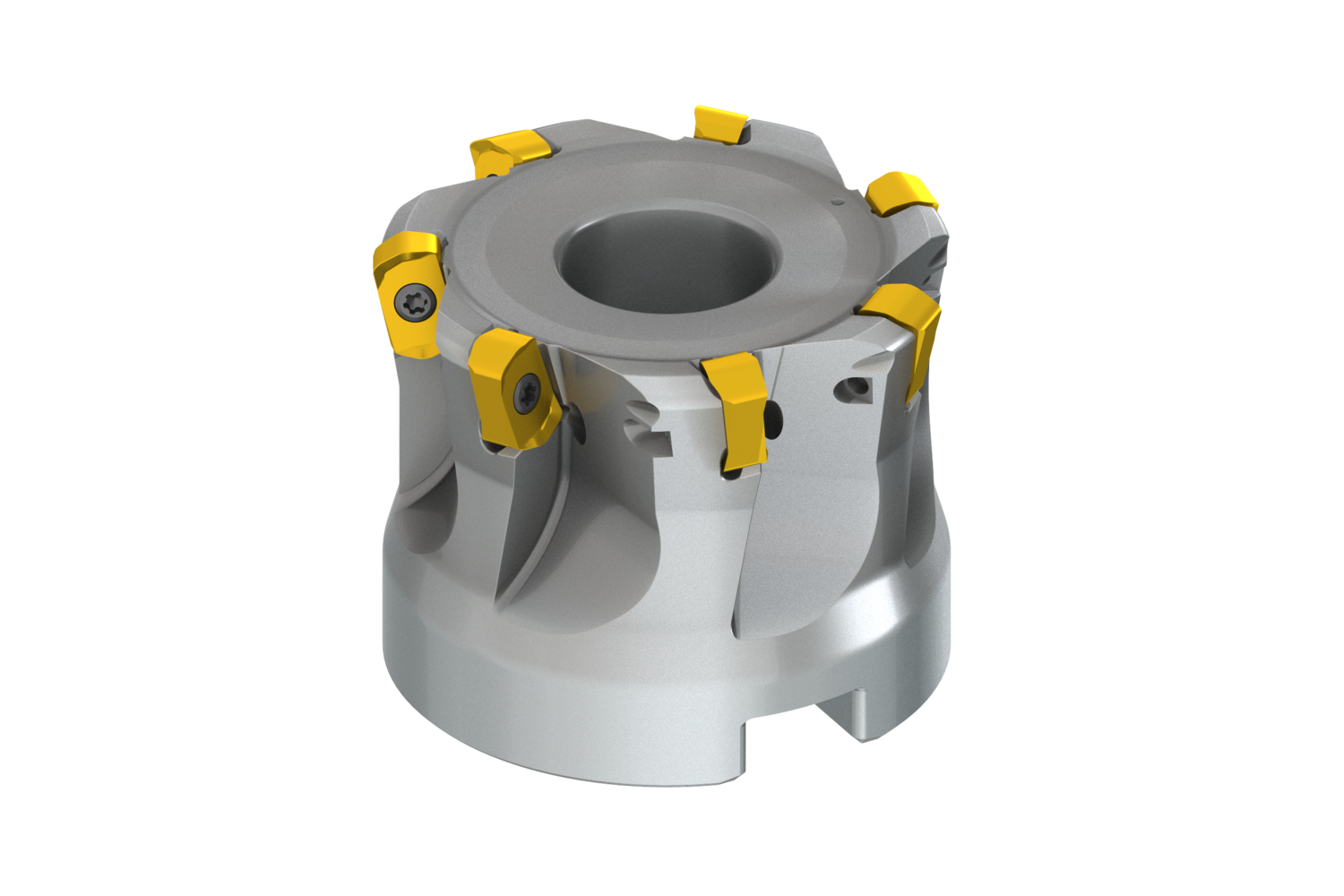

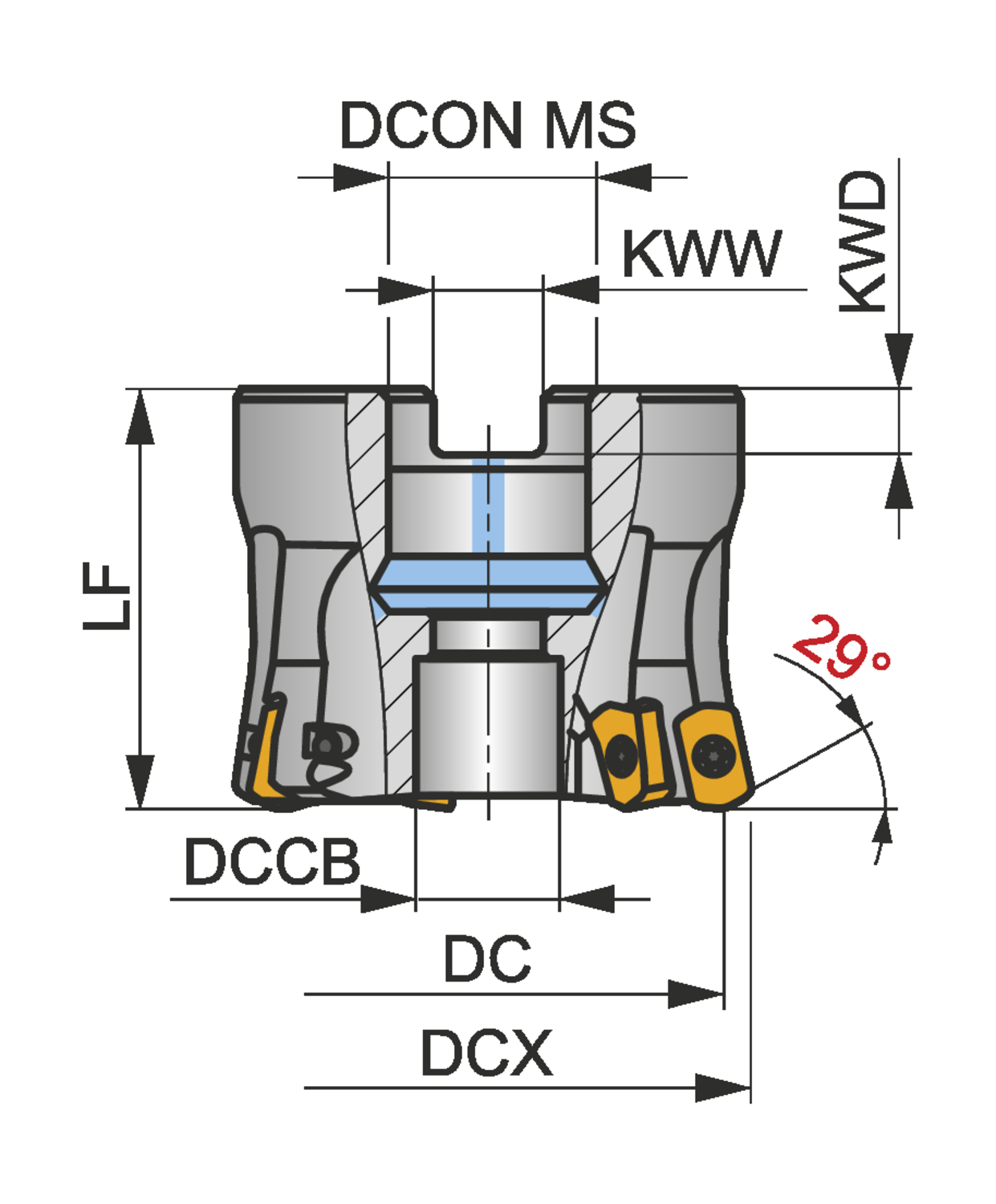

High feed cutter with double negative geometry which utilises 7 of BNGX 10T3.. inserts, cutting diameter 1.800" to maximum 2.000" with 29° approach angle and 0.750" connection bore according to DIN 8030-A, 1.575" functional and, through coolant and differential pitch for face milling, deep shoulder milling, plunge milling, shallow slot milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 0.039"
- Product Name ISO: 200A07R-ISMOBN10-C
- Ordering Code ANSI: 200A07R-ISMOBN10-C
- EDP Number: 8259014
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 45.8 |
| Cutting Diameter (In.) | 1.803 |
| Connection Diameter (Mm.) | 19.05 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
