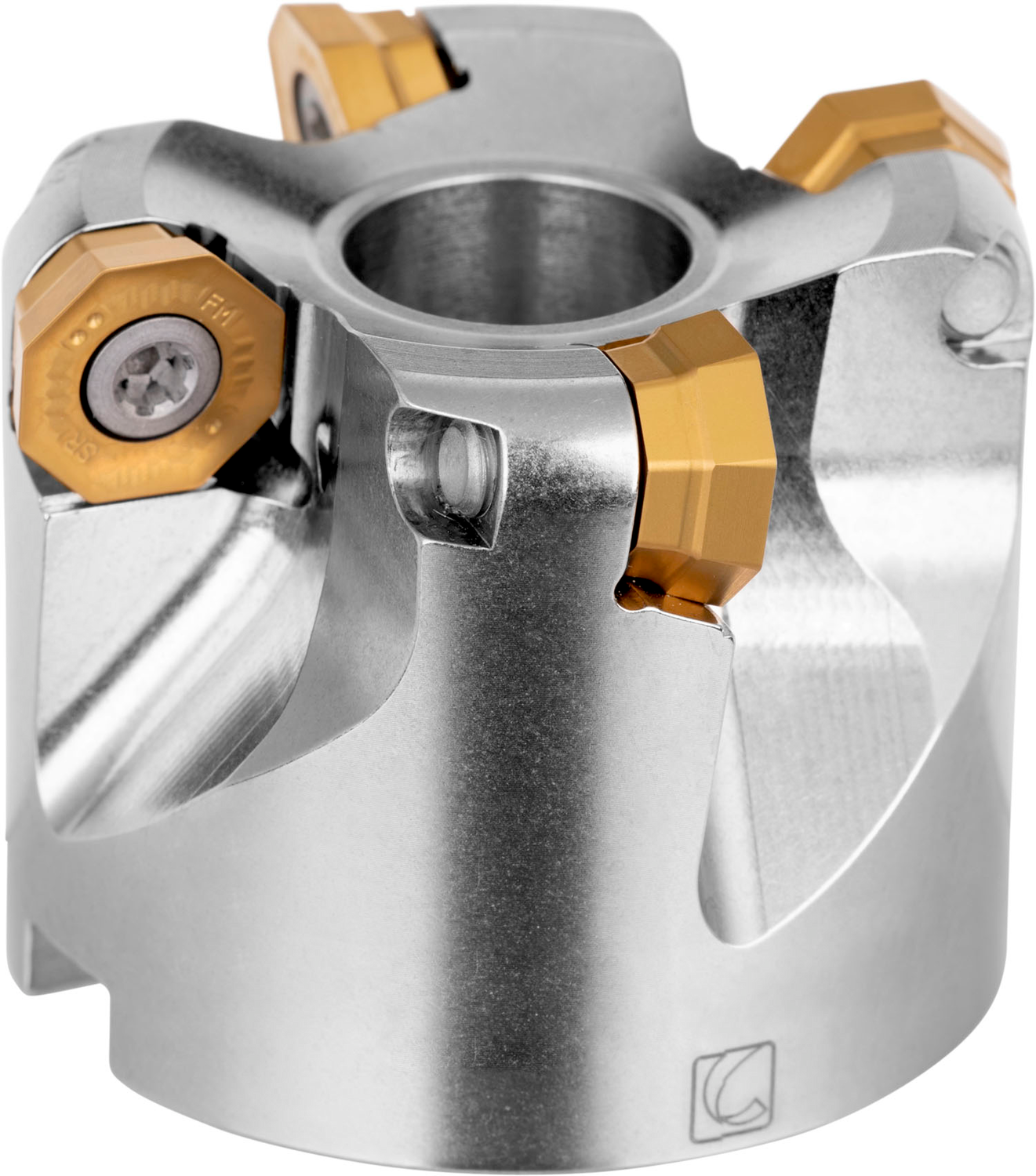

Copy face mill with positve/negative geometry which utilises 4 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 1.709 to maximum 2.000'' with 45 / 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''

• Product Name ISO: 200A04R-IS45OD05-C
• Ordering Code ANSI: 200A04R-IS45OD05-C
• EDP Number: 7546797
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
