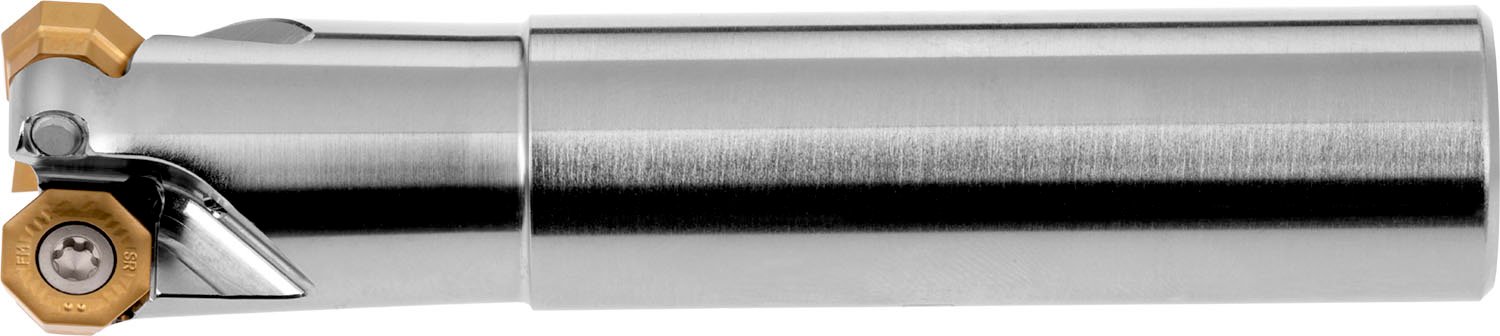

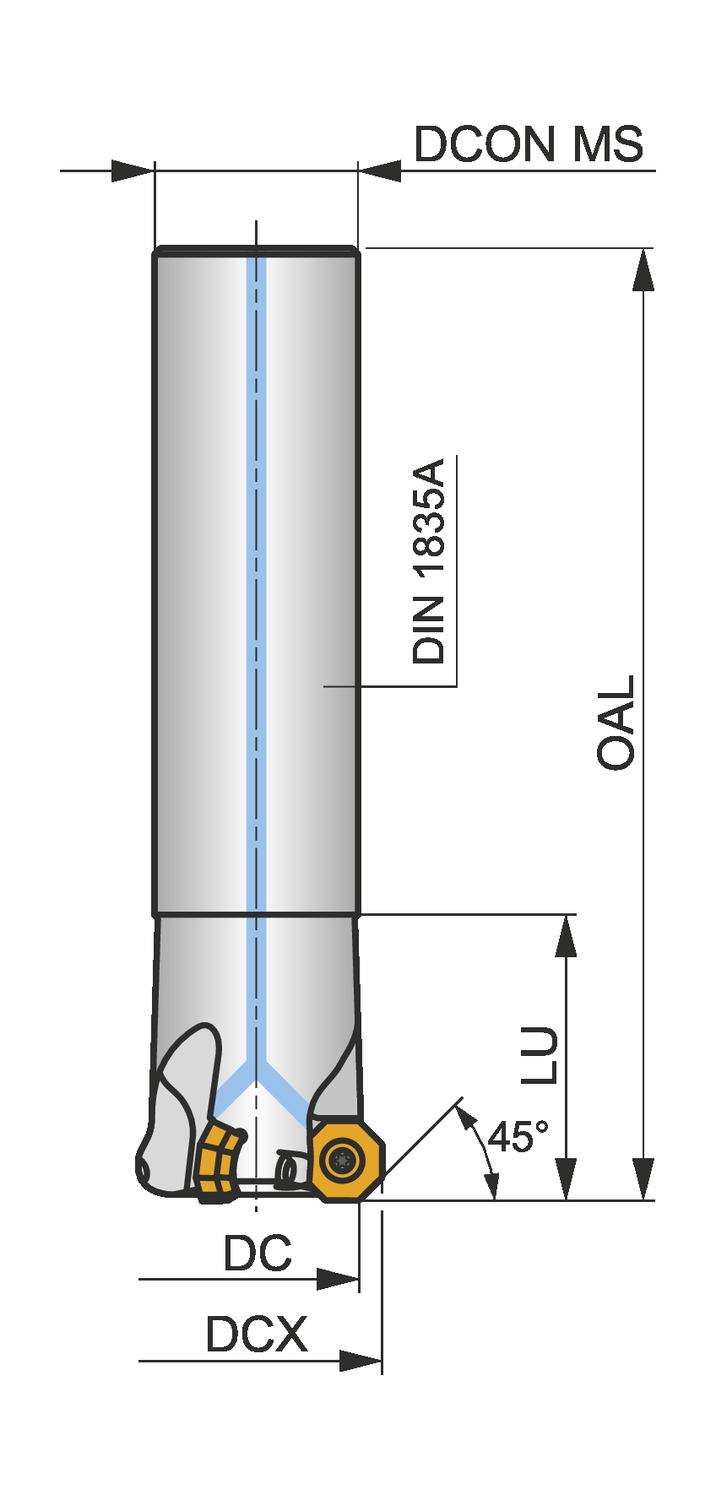

Copy face mill with positve/negative geometry which utilises 3 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter .961'' with 45 / 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 1.772'' functional and 5.000'' overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''

• Product Name ISO: 125N3R177C100-ISOD05-C
• Ordering Code ANSI: 125N3R177C100-ISOD05-C
• EDP Number: 7546855
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
